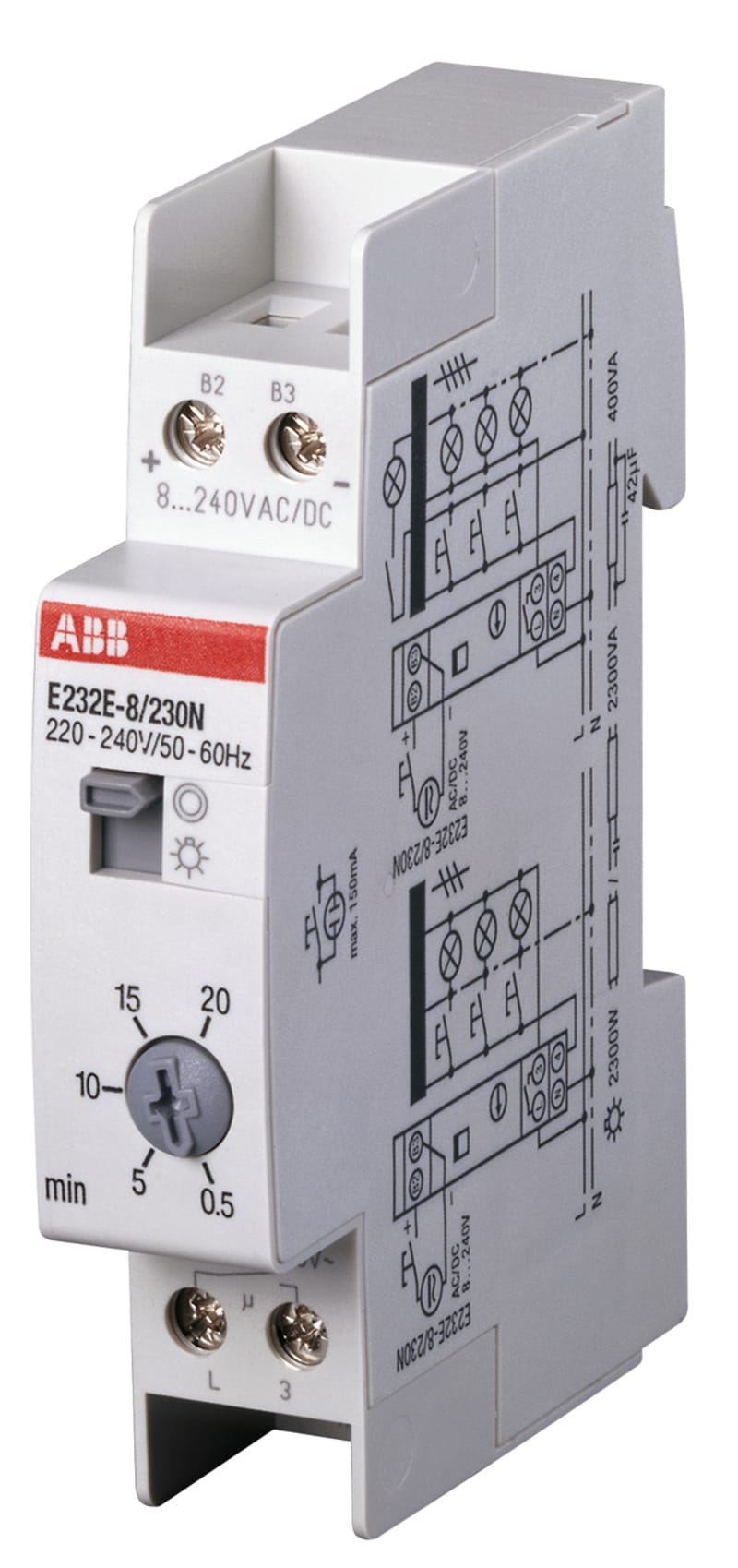

Trapplysswitch E 232 E-8/230N
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDE010003R0511 E 232 E-8/230N, 20 min.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDE010003R0511
- EAN / GTIN
- 4016779654173
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- DIN rail
- Function
- Electronic
- Built-in depth
- 59 mm
- Release-delay
- 0.5–20 min
- Width in number of modular spacings
- 1
- Control voltage 1
- 230 V
- Control voltage 2
- 230 V
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50–60 Hz
- Wiring system
- 3 and 4 wire configuration
- Pre-warning of switching-off
- Flickering
- Repetitive
- Repetitive + continuous light
- Voltage type (supply voltage)
- AC
- Supply voltage
- 0.85–1.1 V
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 2300 W
- Max. load fluorescent lamp
- 2300 VA
- Rated switch current
- 16 A
- Push button glow-lamp current
- 150 mA
- Current surge function selectable
- No
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4016779654173
- SAP 1200640819
- Code 83054182
Product Documentation
More from ABB
ABB
MBG434 DIN-rail module
2CPX041670R9999
ABB
Application unit PLS ABL/S2.1
ABL/S 2.1
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — TMA 125-1250, In=125 A, 3-Pole
1SDA068374R1
ABB

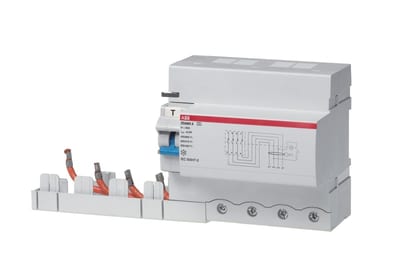

ABB DDA804 RCD Block — 4-Pole, Type A, 100 A, 1 A, Selective, for S800 MCB
2CSB804201R5000
ABB

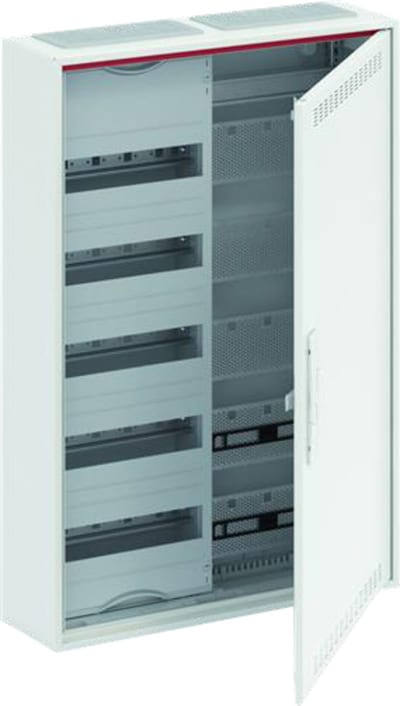

WALL-Mount Cabinet CA25V 550X800X160MM. IP44 (2CPX052212R9999)
ABB

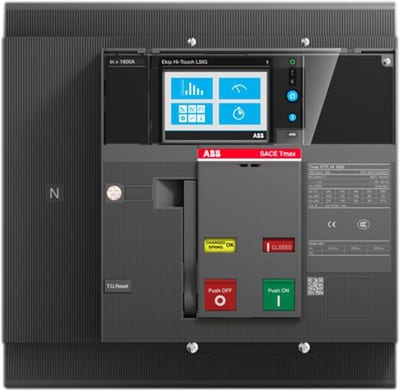

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI, In=1600 A, 4-Pole
1SDA101797R1
ABB

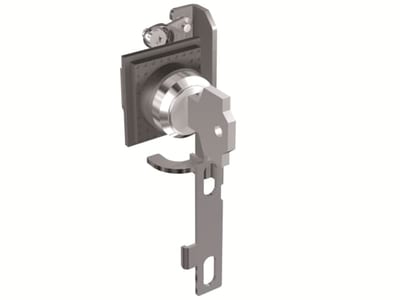

KLC-S Key lock open N.20008 XT7M
1SDA107498R1
ABB

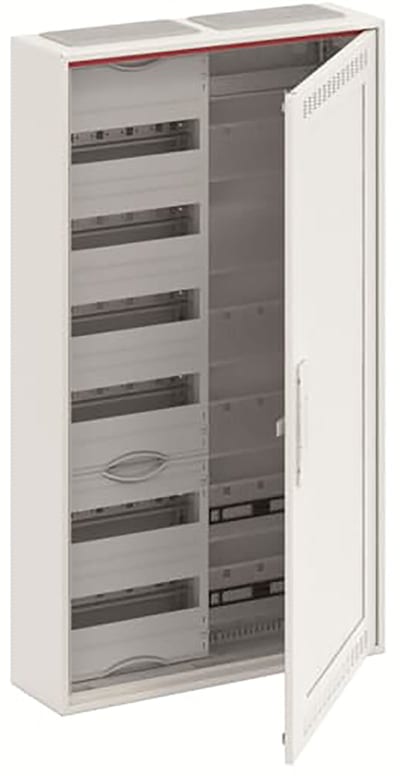

WALL-Mount Cabinet CA26V 550X950X160MM. IP44 (2CPX052222R9999)
