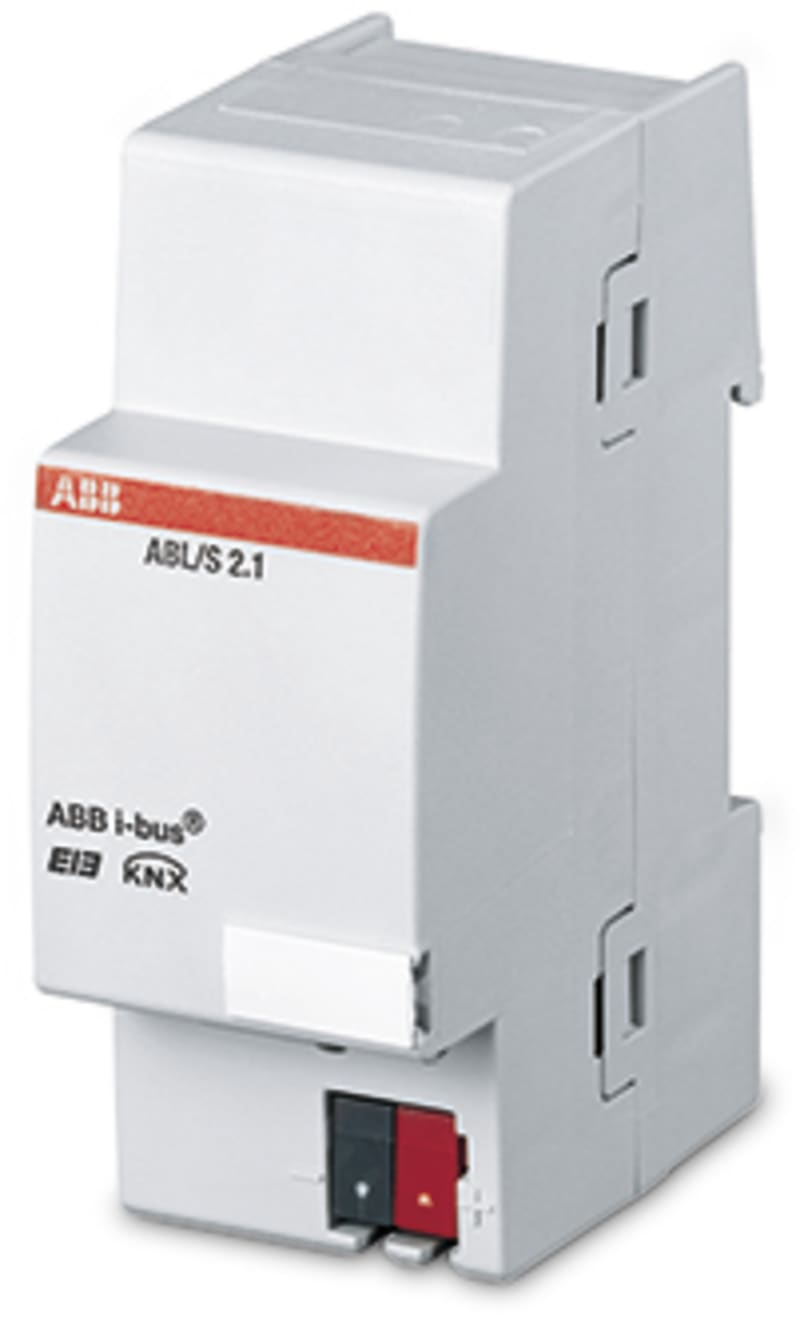

Application unit PLS ABL/S2.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB ABL/S 2.1 — Allows the devlopment of complex logical functions by simply combining different logic elements and gates using a graphical user interface as an ETS plug-in from ETS3. No additional software is required. There are 50 logical elements (AND, OR, 1ofN), 50 uni- and bidirectional gates, 30 timer modules (On- /Off delay, impulse duration, and stairway light controller), 10 comparators, 200 worksheets, 250 Marker and 254 In- and Outputs are available. No additional power supply required, the device is powered from KNX bus.
Technical Specifications
- Manufacturer part number (MPN)
- ABL/S 2.1
- EAN / GTIN
- 4016779652643
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941030P0004
- Wiring Diagram
- 9AKK108464A0377
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC509037D0201
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- KNX
- Power Loss
- 0.3 W; Total 0 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189197_EPLAN
- Declaration of Conformity - CE
- 2CDK509046D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0616
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0014
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000676 - Logic component for bus system
- eClass
- V11.0 : 27143103
- UNSPSC
- 32151705
- IDEA Granular Category Code (IGCC)
- 3567 >> PLC function/technology module
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Other bus systems
- None
- Bus system LON
- No
- Logic object
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779652643
- SAP 1000191681
- Code 8804525
