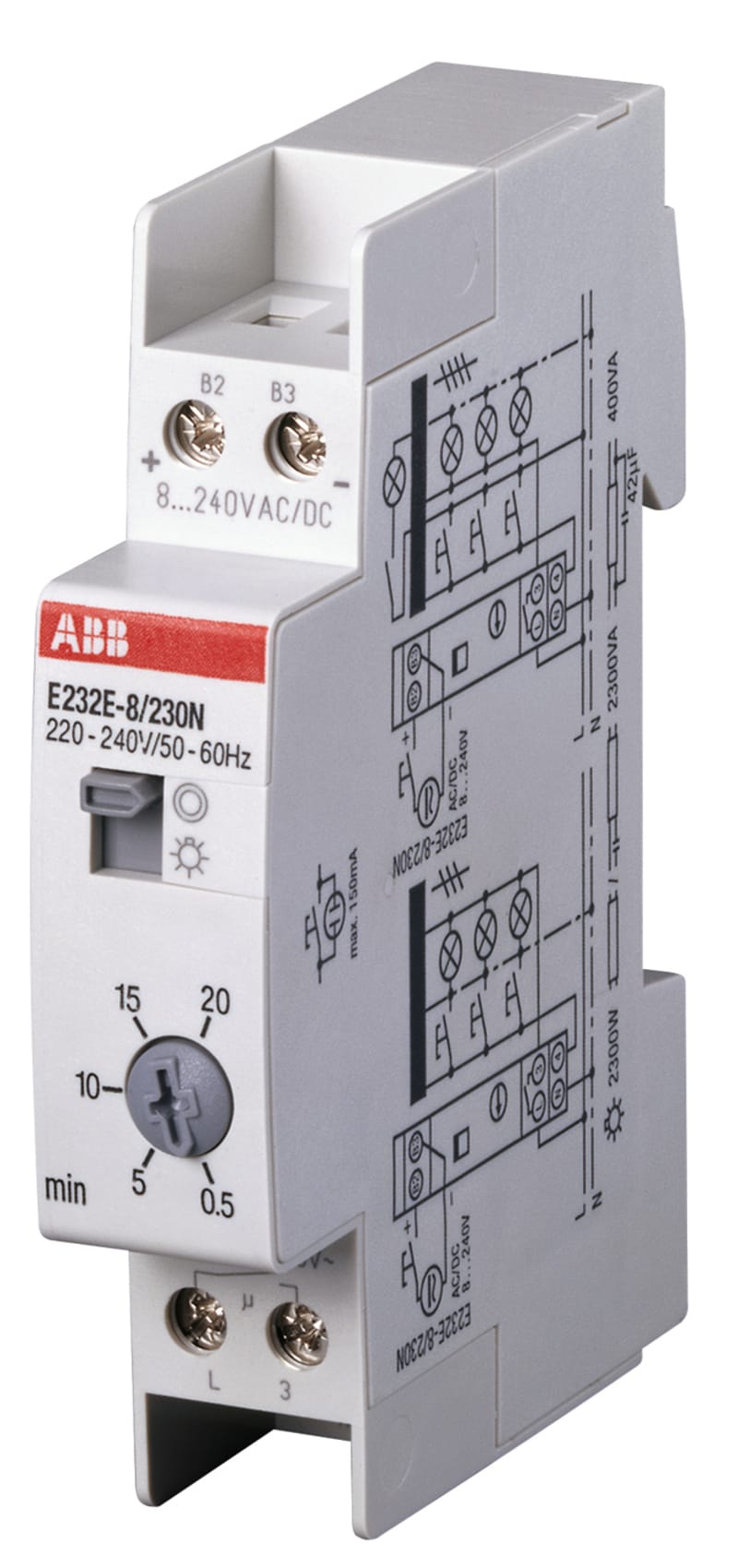

Trapplysswitch E 232 E-230N

ABB 2CDE110003R0511 — Staircase time switches with off-delay are operated by push-buttons, which are often equipped with a glow lamp. The switch levers are designed for a glow lamp current of up to 150 mA and are therefore excellently suited for installations in multistorey buildings. The E 232-230 staircase lighting timer with off-delay has an electromechanical timer relay with synchronous motor drive, which ensures a high level of operational safety in any installation position. The time range can be set in 15-second increments from one to seven minutes. Can be reswitched after 30s. The multifunctional units of the E 232E-230 Multi 10 and E 232E-8/230 Multi 10 product series have 10 functions that can be set on the front of the unit.

Manufacturer part number (MPN)

2CDE110003R0511 EAN / GTIN: 4016779654166 Sales unit: pcs Package quantity: 10 pcs Function: Electronic switch Reset Function: Push Button minimum Switching Time: 0.02/0.05 s Time Range: Stepless 0.5 ... 20 min Ballast Type: Electronic Switch Type: Steadylight Options Provided: Without Switch-Off Warning Cable Cross-Section: Terminal 4 mm²; Terminal 13 mm² Connection Mode and Capacity: 3 or 4 conductor operated automatically Contact material: silver-tin-oxide (AgSnO2) Switch Off Warning Type: Flickering Rated Voltage (U r ): 240 V AC Supply Voltage: 0.85 ... 1.1 V Maximum Control Current DC: 26 mA Rated Frequency (f): 50 / 60 Hz Maximum Lamp Load: LED Power > 2W 180 W; LED Power < 2W 20 W Load Type: Universal and LED Retrofit; LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Power Loss: 6 V·A Rated Switching Capacity: 16 A; 230 V AC Power Watt: Filament Lamp 2300 W; Fluorescent Lamp Compensated 2300 V·A; Fluorescent Lamp Shunt Capacitive 1300 V·A; Fluorescent Lamp Inductive 2300 V·A; Halogen Lamp 2300 W Control Supply Voltage: 230 AC V Enclosure material: Heat resistant, self-extinguishing thermoplast Ambient Temperature: –25 ... 50 °C Product Net Width: 17.5 mm Product Net Height: 90 mm Product Net Depth / Length: 58 mm Declaration of Conformity - CE: 2CDK440040D0201 VDE Certificate: 9AKK108466A2521 Instructions and Manuals: 9AKK108466A2386 Installation Manual: 9AKK108466A2386 ETIM 9: EC000297 - Staircase lighting timer UNSPSC: 39122208 eClass: V11.0 : 27142307 Mounting method: DIN rail Built-in depth: 59 mm Release-delay: 0.5–20 min Width in number of modular spacings: 1 Control voltage 1: 230 V Control voltage 2: 230 V Type of control voltage 1: AC Frequency control voltage 1: 50–60 Hz Wiring system: 3 and 4 wire configuration Pre-warning of switching-off: Flickering Repetitive: Repetitive + continuous light Voltage type (supply voltage): AC Max. switching current (cos phi = 0.6): 16 A Max. incandescent lamp load: 2300 W Max. load fluorescent lamp: 2300 VA Rated switch current: 16 A Push button glow-lamp current: 150 mA Current surge function selectable: No Number of contacts as normally open contact: 1 Country of origin: Germany

HS Code

8536.49

• EAN 4016779654166
• SAP 1200640820
• Code 83054170
