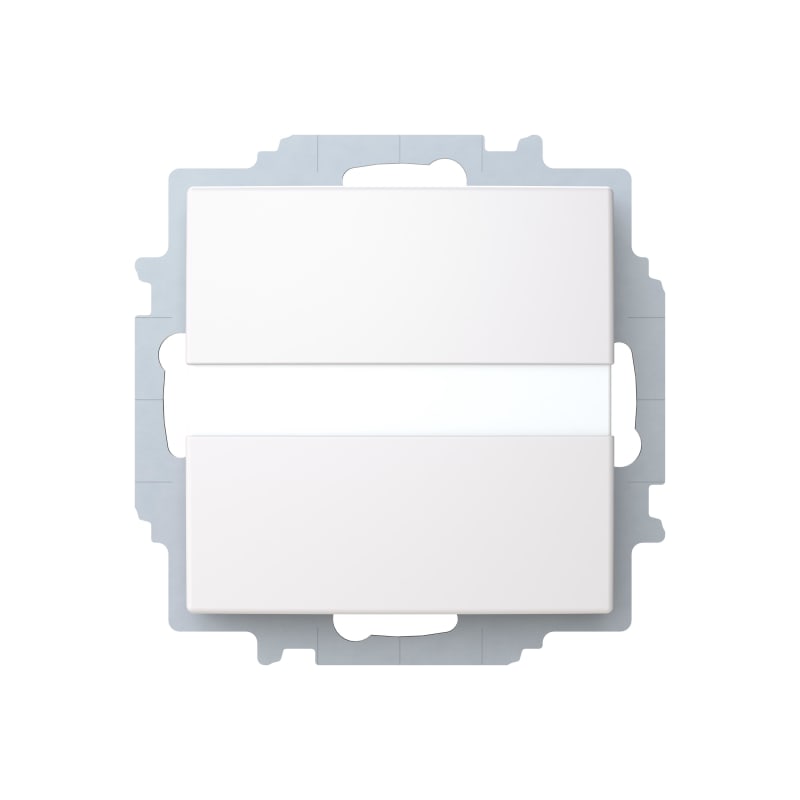

ABB 2CKA006800A3106 movement detector push-button switch combination

ABB 2CKA006800A3106 movement detector push-button switch combination is listed under Lighting & Electrical Accessories / Motion Sensors. HS code: 8536.50.

Manufacturer part number (MPN)

2CKA006800A3106 EAN / GTIN: 4011395321607 Sales unit: pcs Mounting Type: Flush Mounted Mounting Position: Wall Mounting Height: Maximum 0.8 m; Optimum 1.1 m Modular Components Included: Cover with Flush Mounted Insert and Mounting Plate Ambient Air Temperature: -5 ... 45 °C; Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics minimum Switching Time: Switch-On 60 s Connection Type: Screw Product Type: Select lens Sensor Type: Passive Infrared Manual Operation: Yes Illuminance: 5 ... 500 lx Sensor Detection Range: 170 ... 170 °; Horizontal 0 ... 170 °; Tangential 5 m Motion Detector Features: Animal Zone Rated Voltage (U r ): 230 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 50 Hz Load Type: LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Design Range: Saga Surface Finishing: Glossy; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9003 Color: white Product Net Width: 71 mm Product Net Height: 71 mm Product Net Depth / Length: 63.77 mm Built-In Depth ( t 2 ): 25 mm Dimension Diagram: 2CKA000097E4123 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007 Mounting method: Flush-mounted Colour: White Width: 71 mm Model: Movement sensor Halogen free: No Height: 71 mm Depth: 63.77 mm Surface protection: Untreated Creep-under protection: No Voltage type: AC Frequency: 50 Hz With remote control: No Suitable for wall mounting: Yes Staircase light controller: No Bridging switch: Yes Suitable for wireless transmission: No material quality: Thermoplastic Max. reach frontally: 12 m Max. reach sideways: 12 m Ambient temperature: -5–45 °C Response value sensitivity adjustable: No Dim function with dimmer basic element: Yes Response value luminosity: 5–500 lx Remote operation: No HVAC-control: No Constant light control: No With signal unit: No Teach-function for response value luminosity: No Networkable: Yes Forced switch off: Yes Nominal voltage: 230 V Animal zone: Yes Detection angle horizontal: 170 ° Min. switch-on time: 60 s Max. duty cycle: 10 min Response value luminosity adjustable: Yes Optimum mounting height: 1.1 m IFTTT support available: No Forced switch on: Yes Min. depth of built-in installation box: 25 mm Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Movement sensor/presence detector technology: Passive infrared Anti-bacterial treatment: No Country of origin: Germany

HS Code

8536.50

• EAN 4011395321607
• SAP 1200706253
• Code 83752068
