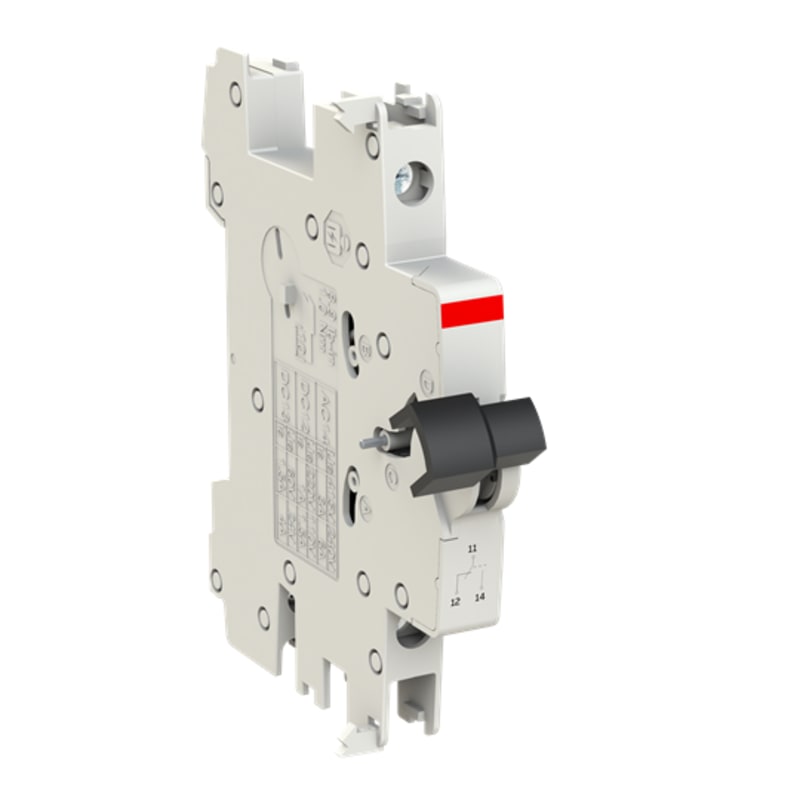

ABB DSCC-IH6R Auxiliary Contact 1 CO 2CDS200933R0012

ABB 2CDS200933R0012 — DSCC-IH6R Auxiliary Contact 1 CO.

Manufacturer part number (MPN)

2CDS200933R0012 EAN / GTIN: 4053546160611 Sales unit: pcs EcoSolutions Profile: 9AKK108472A8995 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 82.3 % ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Extended Product Lifetime: Product Durability Offered with Takeback Services: Take Back for Recycling End Of Life Disassembling Instructions: 9AKK108468A8394 Environmental Product Declaration - EPD: 9AKK108469A0166 Suitable For: DS202CR; DSE201NS; DSN201E; GS201C; S201NC Suitable for Product Class: Auxiliary switch/relay Dielectric Test Voltage: 50 / 60 Hz - 1 min 2.5 kV Electrical Endurance: 10000 cycle Mechanical Endurance: 10000 cycle Number of Auxiliary Contacts NO: 0 Tightening Torque: 1 N·m Accessory Type: Auxiliary Contact Accessories Available: Yes Connecting Capacity: Flexible 0.75 ... 25 mm² Terminal Type: Screw Terminals Rated Operational Current AC-14 (I e ): (230 V) 6.3 A; (400 V) 6.3 A Rated Operational Current DC-13 (I e ): (24 V) 4 A; (60 V) 1.5 A Operational Voltage: minimum 12 V AC; minimum 12 V DC Rated Insulation Voltage (U i ): acc. to IEC/EN 60664-1 415 V Rated Impulse Withstand Voltage (U imp ): 6 kV Input Voltage Type: AC/DC Number of Auxiliary Contacts CO (SPDT): 1 Overvoltage Category: III Ambient Air Temperature: Operation -25 ... +55 °C; Storage -40 ... +70 °C Degree of Protection: IP20; Enclosure with Cover IP40 Pollution Degree: 3 Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g at 24V AC/DC, 5mA 5 ... 150 ... 5Hz Hz Resistance to Shock acc. to IEC 60068-2-27: 25g 3 shocks 13 ms Width in Number of Modular Spacings: 0.5 Product Net Width: 14 mm Product Net Height: 72.5 mm Product Net Depth / Length: 85 mm Dimension Diagram: 9AKK108470A3185 Declaration of Conformity - CE: 9AKK108468A8034 Declaration of Conformity - UKCA: 9AKK108468A8035 Instructions and Manuals: 2CDS200928P0013 Mounting Position: right ETIM 9: EC001286 - Auxiliary device for distribution board devices UNSPSC: 39121614 eClass: V11.0 : 27143502 Standards: IEC 60947-5-1 Function: Auxiliary switch Voltage type: AC/DC Device fitting: Contactor/relay Number of contacts as change-over contact: 1 With auto test for earth leakage function: No Country of origin: Bulgaria

HS Code

8536.50

• EAN 4053546160611
• SAP 1201009729
• Code 84365640
