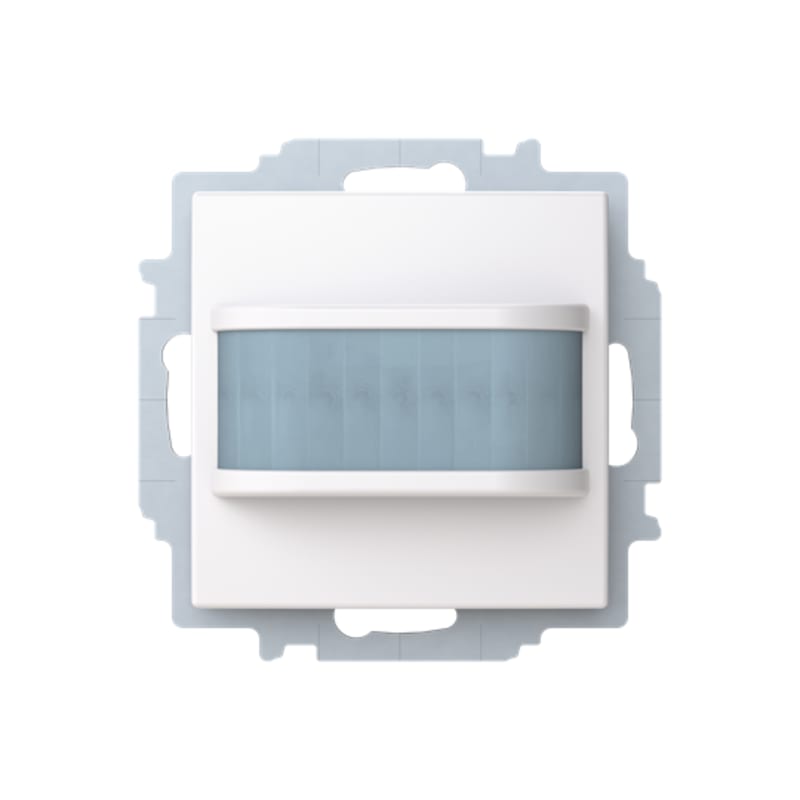

SAGA FLEX BEV.SENSOR Comfort without Frame
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006800A3104 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times../. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006800A3104 EAN / GTIN: 4011395321584 HS code: 8536.90 Sales unit: pcs Mounting Height: Maximum 1.2 m; Optimum 1.1 m Modular Components Included: Cover with Flush Mounted Insert and Mounting Plate Ambient Air Temperature: -5 ... 45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Number of Switching Zones: 56 minimum Switching Time: Switch-On 10 s Connection Type: Screw Sensor Type: Passive Infrared Manual Operation: Yes Illuminance: 5 ... 500 lx Sensor Detection Range: 13 ... 180 ° Motion Detector Features: Animal Zone Rated Voltage (U r ): 230 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 50 Hz Load Type: LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Design Range: Saga Surface Finishing: Glossy; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9003 Color: white Product Net Width: 71 mm Product Net Height: 71 mm Product Net Depth / Length: 52.6 mm Built-In Depth ( t 2 ): 25 mm Dimension Diagram: 2CKA000097E4121 Declaration of Conformity - CE: 2CKA100000E5828 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395321584
- SAP 1200706251
- Code 83752075
Product Documentation
More from ABB
ABB

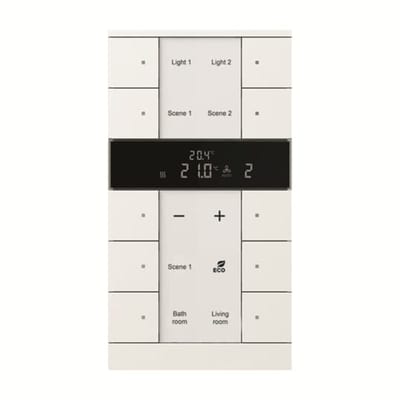

Tenton 5/10V White matt SL SBS/U10.0.1-884
2CKA006330A0048
ABB
F@h PIR, MATT Black (MD-F-1.0.1-885)
ABB

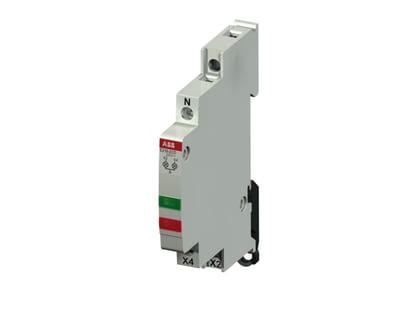

ABB 2CCA703911R0001 multi indicator light with 2 red, green LEDs Voltage range = 12-48 VAC/VDC Module width 0,5
ABB
Meter 1F A42 111-100
2CMA170555R1000
ABB

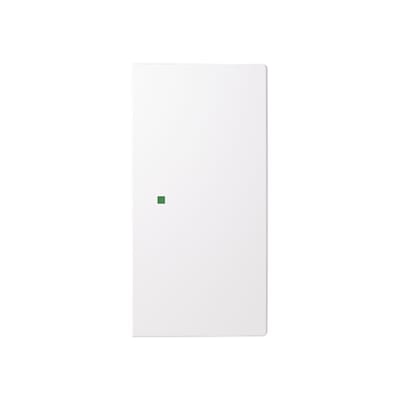

SAGA FLEX, F@H, KNX V/H Front without SYMB.
2CKA006220A0908
ABB

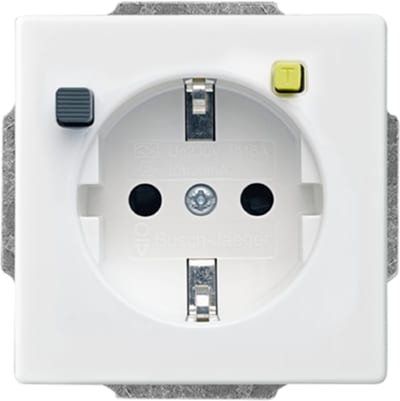

ABB Impressivo Flush-Mounted Socket Outlet with RCD, White
2CCF019491R0001
ABB

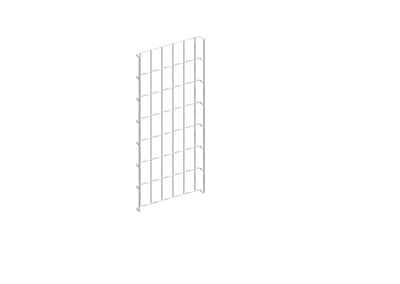

ABB 2CPX073257R9999 Mesh cable tray, width 300 mm, for module height 3000 mm, suitable for SMISSLINE TP.
ABB

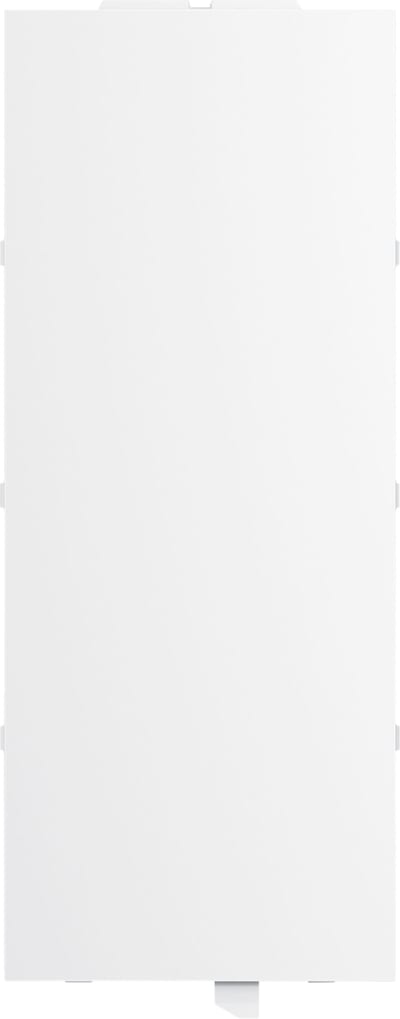

ABB 2CKA006330A0024 Marking coverplate for 8GANG control element
