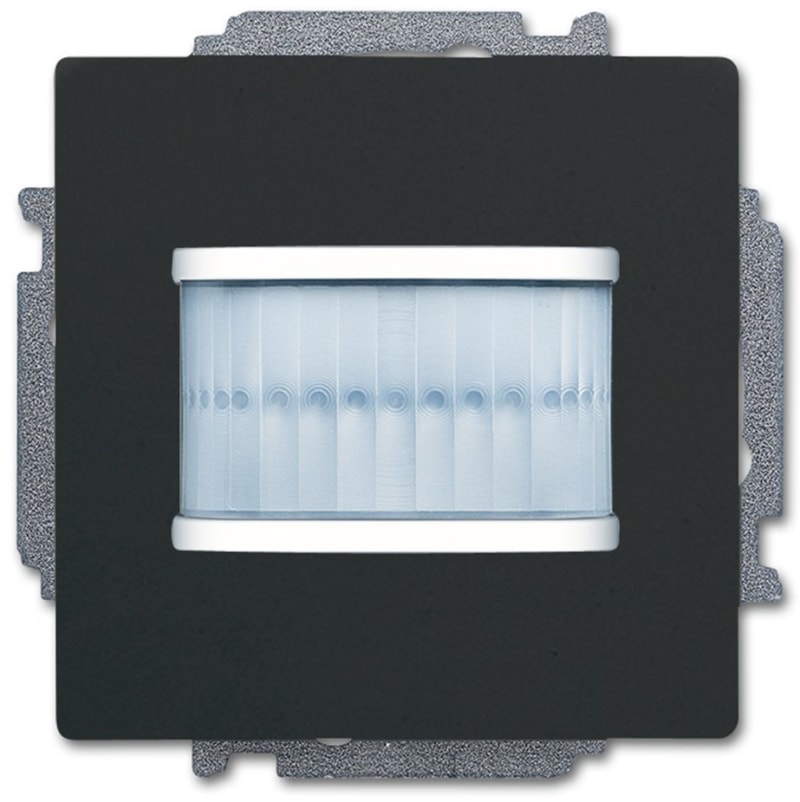

F@h PIR, MATT Black (MD-F-1.0.1-885)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB MD-F-1.0.1-885 — With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. The bus can be connected via enclosed terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- MD-F-1.0.1-885
- EAN / GTIN
- 4011395204658
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Mounting Position
- vertical
- Mounting Height
- Optimum 1.1 m
- Modular Components Included
- Cover with Flush Mounted Insert and Mounting Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Compatible Bus Systems
- free@home (TP)
- Product Range
- free@home
- Transmission Standard
- Twisted Pair Wiring
- Terminal Type
- Bus Connection
- Sensor Detection Range
- Horizontal 180 ... 180 °; Vertical 19 ... 19 °
- Design Range
- Platform 63; future linear; Busch-axcent; carat
- Design Range Variant
- future linear - matt; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9005
- Color
- black matt
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 30 mm
- Built-In Depth ( t 2 )
- 9 mm
- Building Information Modeling – BIM
- 9AKK108470A7654
- Declaration of Conformity - CE
- 2CKA100000E1437
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0192
- Declaration of Conformity - UKCA
- 2CKA400000E0406
- EU Data Act Compliance Declaration
- 9AKK108471A4355
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001582 - Movement sensor for bus system
- eClass
- V11.0 : 27143144
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- free@home
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Colour
- Black
- Transparent
- No
- With bus connection
- Yes
- Animal zone
- Yes
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 1.1 m
- Max. reach sideways
- 3 m
- Max. reach frontally
- 6 m
- Detection angle vertical
- 19 °
- Detection angle horizontal
- 180 °
- Max. duty cycle
- 30 min
- Min. depth of built-in installation box
- 9 mm
- Width
- 71 mm
- Height
- 71 mm
- Depth
- 30 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395204658
- SAP 1000759815
- Code 8525764
Product Documentation
More from ABB
ABB
ABB 2CCA703911R0001 multi indicator light with 2 red, green LEDs Voltage range = 12-48 VAC/VDC Module width 0,5
ABB
Meter 1F A42 111-100
2CMA170555R1000
ABB
SAGA FLEX, F@H, KNX V/H Front without SYMB.
2CKA006220A0908
ABB
ABB Impressivo Flush-Mounted Socket Outlet with RCD, White
2CCF019491R0001
ABB
ABB 2CPX073257R9999 Mesh cable tray, width 300 mm, for module height 3000 mm, suitable for SMISSLINE TP.
ABB
ABB 2CKA006330A0024 Marking coverplate for 8GANG control element
ABB

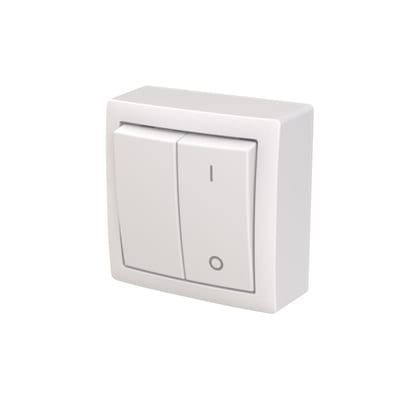

SAGA WALL-Mounted 2-1 Switch 2+1
2TKA00005382
ABB

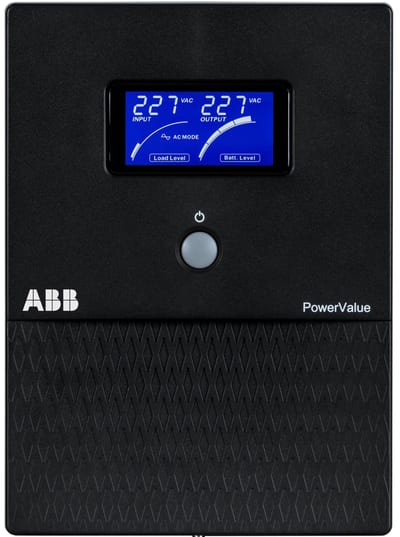

ABB VI UPS PowerValue 11LI Pro 1500VA/1050W;230V;50/60Hz;pure sinewave;5 min 4NWP100178R0001
