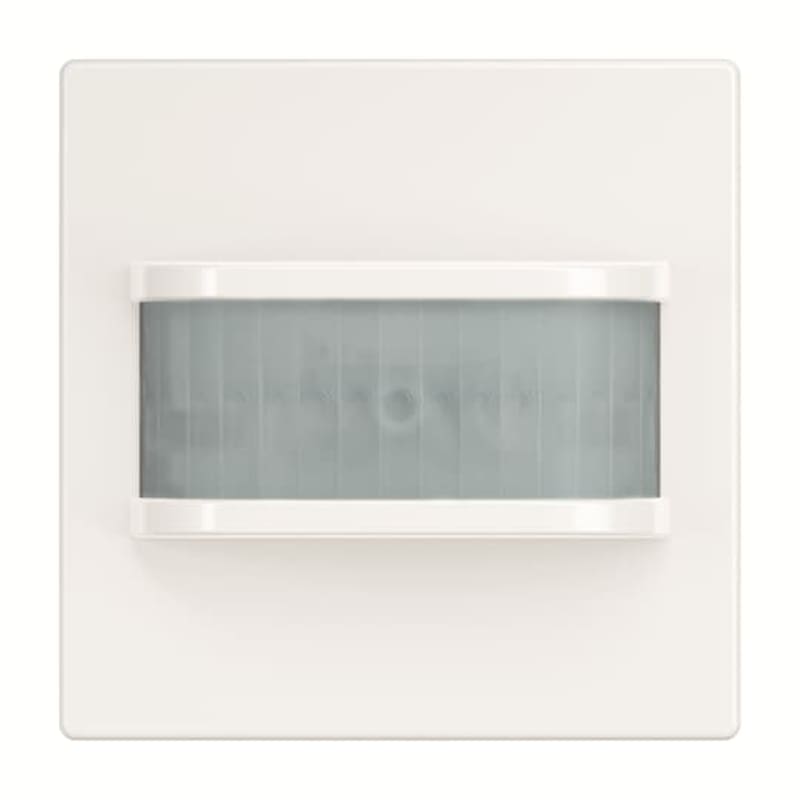

FLEX PIR180 Sensor Basic IMPR. White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006800A2927 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness../. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U. For LED touch dimmer insert flex, 1gang, 64851 U. For extension insert flex, 64891 U. Mounting height: 22 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006800A2927 EAN / GTIN: 4011395293324 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: 2CKA000073B5099; 2CKA000073B5114; 2CKA000073B5115; 2CKA000073B5116; 2CKA000073B5117; 2CKA000073B5118 Mounting Type: Flush-mounted Mounting Height: Maximum 2.2 m; Optimum -empty- m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics minimum Switching Time: Switch-On 10 s Connection Type: Pin Manual Operation: No Sensor Detection Range: Horizontal 0 ... 180 ° Motion Detector Features: Animal Zone Design Range: Platform 63; future linear; Busch-axcent; solo; carat Design Range Variant: Busch-axcent pur; future material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: studio white Product Net Width: 63 mm Product Net Height: 63 mm Product Net Depth / Length: 35 mm Environmental Product Declaration - EPD: 9AKK108472A4243 Declaration of Conformity - CE: 2CKA100000E4255 EU Data Act Compliance Declaration: 9AKK108471A4355 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395293324
- SAP 1200681863
- Code 83539798
Product Documentation
