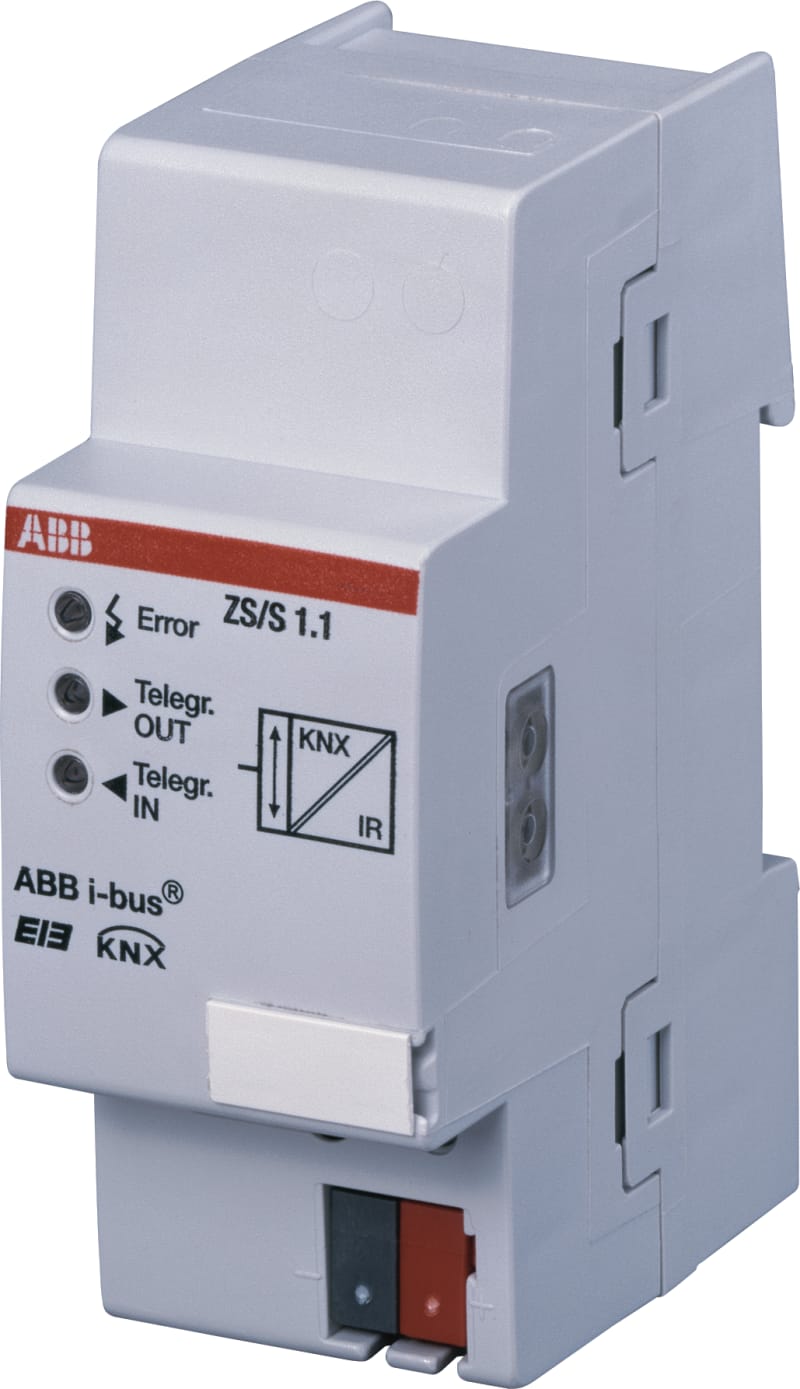

IR-Grensesnitt KWH-Meter (zs/S 1.1)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB ZS/S 1.1 — The Meter Interface Module receives data and values from energy meters and sends them via KNX. These data can be used e.g. for visualisation, energy optimizing, billing and monitoring purposes. The device is equipped with an infrared interface to connect ABB energy meters such as A-Series, B-Series, DELTA and ODIN.
Technical Specifications
- Manufacturer part number (MPN)
- ZS/S 1.1
- EAN / GTIN
- 4016779662079
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941045P0002
- Wiring Diagram
- 9AKK108469A6741
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC512067D0203
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- Direct
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- KNX
- Auxiliary Voltage AC/DC
- KNX
- Power Loss
- 0.25 W; Total 0 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Built-In Depth ( t 2 )
- 64.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189205_EPLAN
- Declaration of Conformity - CE
- 2CDK512073D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0795
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0125
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001102 - Energy management for bus system
- eClass
- V11.0 : 27143126
- UNSPSC
- 39121803
- Object Classification Code
- A
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface finishing
- Matt
- RAL-number (similar)
- 7010
- Transparent
- No
- With bus connection
- No
- With label area
- No
- With LED indication
- No
- Min. depth of built-in installation box
- 64.5 mm
- Mounting method
- DRA (DIN-rail adaptor)
- Colour
- Grey
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779662079
- SAP 1000464422
- Code 8745154
Product Documentation
