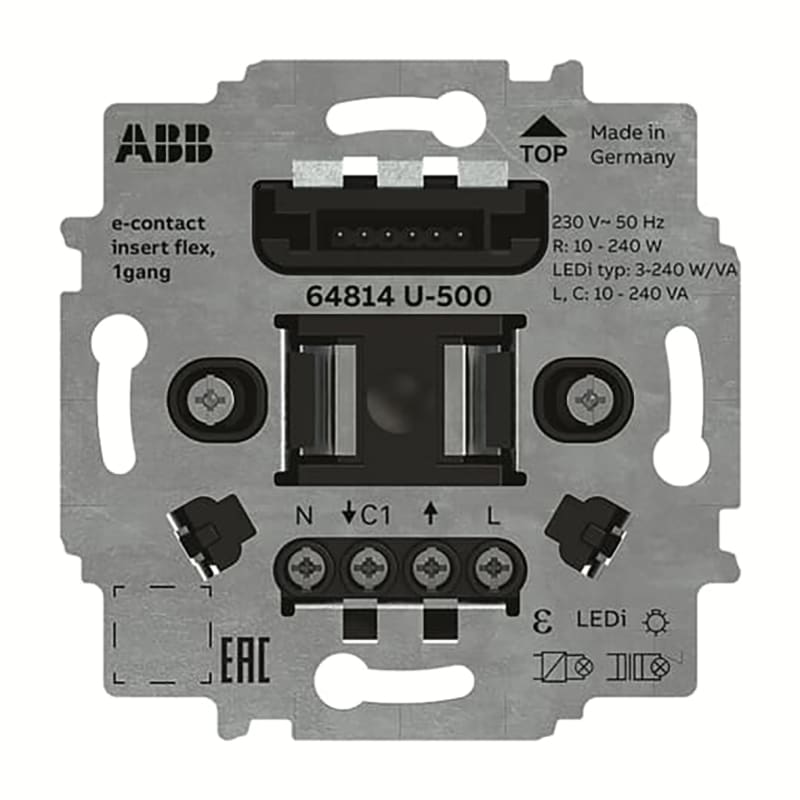

FLEX Insert E-Contact 1K

ABB 64814 U-500 — 2-wire connection (neutral conductor not required). Neutral conductor optionally connectable (recommended for the connection of low loads < 10 W/VA). For switching lighting systems. Operation in 1gang 2way installations via push button input. Operation also possible via conventional push buttons (2020 US-500). Without control unit. For control element flex, 1gang, 64711-500. For control element flex, 1gang, wireless, 62711-WL-500. For control element flex, 2gang, 64721-500. For control element flex, 2gang, wireless, 62721-WL-500. For ABB Comfort switch flex control element 64765-…-500.For ABB Watchdog 180 flex sensors 6476x-…-500.For ABB Watchdog 180 flex sensors, wireless, 6276x-.-WL-500. For ABB presence detector flex sensors 6475x-…-500.Combinable with extension insert, 64891 U-500.The use of dimmable LEDi is required.

Manufacturer part number (MPN)

64814 U-500 EAN / GTIN: 4011395294093 Sales unit: pcs Instructions and Manuals: 2CKA000173B5102; 2CKA000173B5129; 2CKA000173B5130; 2CKA000173B5131 Instructions and Manuals (Part 2): 2CKA000073B5216 Mounting Type: Flush Mounted Type of Fastening: Mounting with Screw; Mounting with Claw Modular Components Included: Flush Mounted Insert with Mounting Plate Ambient Air Temperature: Operation -5 ... +45 °C Number of Outputs: 1 Number of Inputs: 1 Product Range: flexTronics; flexTronics wireless; free@home wireless; free@home Connection Type: Pin Terminal Type: Screw Terminals Rated Voltage (U r ): 230 V Rated Current (I n ): 1 A Rated Frequency (f): 50 Hz Maximum Switching Power: Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 240 V·A; Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 240 V·A; Incandescent Lamp or Halogen High Voltage Lamps 240 W; LEDi 240 V·A minimum Switching Capacity: 3 W Load Type: Universal and LED Retrofit; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage Power Loss: 0.5 W; Total 1 W Design Range: Platform 63; Busch-balance SI; Reflex SI; Busch-Duro 2000 SI; Busch-art linear; future linear; Busch-axcent; Pure Stainless Steel; solo; carat; Busch-Dynasty; Trevion Design Range Variant: Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur Number of Gangs: 1-gang Product Net Width: 0.14 m Product Net Height: 0.227 m Product Net Depth / Length: 0.181 m Built-In Depth ( t 2 ): 25 mm Building Information Modeling – BIM: 9AKK108471A9951 Environmental Product Declaration - EPD: 9AKK108469A3355 Declaration of Conformity - CE: 2CKA100000E4473 EU Data Act Compliance Declaration: 9AKK108471A4355 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001588 - Electronic switch eClass: V11.0 : 27144054 Assembly arrangement: Basic element Model: MOSFET Substation input: Yes Light value memory: Yes Applicable with button: Yes Applicable with movement sensor: Yes Applicable with presence indicator: Yes Applicable with time switch/timer: Yes Applicable with transmission button: Yes Applicable with infrared button: Yes Mounting method: Flush-mounted material: Plastic Surface protection: Galvanised Surface finishing: Glossy Colour: Black RAL-number (similar): 9005 Transparent: Yes Nominal voltage: 230 V Frequency: 50 Hz Switch capacity: 3 W Number of channels: 1 Min. depth of built-in installation box: 25 mm Compatible with Apple HomeKit: Yes Compatible with Google Assistant: Yes Compatible with Amazon Alexa: Yes IFTTT support available: Yes Country of origin: Germany

HS Code

8538.90

• EAN 4011395294093
• SAP 1200681859
• Code 83539766
