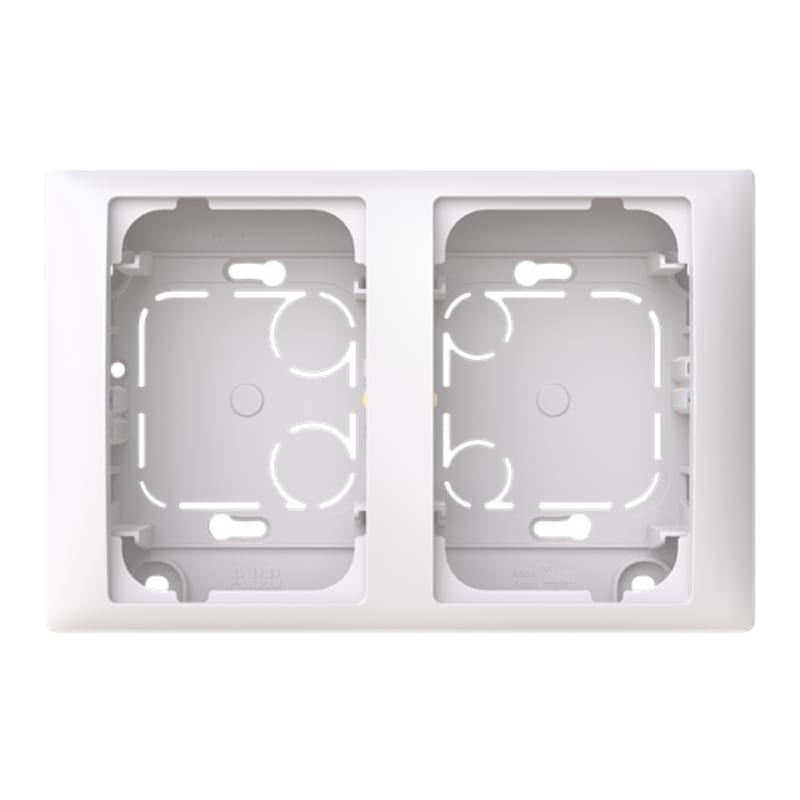

SAGA 2-Hole Cover 100mm Height 48mm
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1722S100H48-916 — Surface mounting box for a 2-gang unit for 100 mm height. This box is high, with a total height of 48 mm. This box is suitable for devices with maximum installation depth of 31 mm. The unit consists of bottom plate and upper part. Bio-circular plastics used in the bottom and centre plate.
Technical Specifications
- Manufacturer part number (MPN)
- 1722S100H48-916
- EAN / GTIN
- 6438199012063
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Environmental Information
- 9AKK108470A4000
- Design Range
- Saga
- Shape
- Rectangular
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Number of Gangs
- 2-gang
- Product Net Width
- 102 mm
- Product Net Height
- 48 mm
- Product Net Depth / Length
- 156 mm
- Dimension Diagram
- 9AKK108469A3728
- Declaration of Conformity - CE
- 9AKK108469A1925
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000080 - Surface mounted box for flush-mounted switching equipment
- Assembly arrangement
- Surface mounted frame
- Colour
- White
- Width
- 102 mm
- Halogen free
- No
- Height
- 48 mm
- Depth
- 156 mm
- Number of units
- 2
- Shock resistant
- No
- Surface protection
- Untreated
- With cable entry
- No
- Material quality
- Thermoplastic
- With cover frame
- No
- Mounting direction
- Horizontal and vertical
- Transparent
- No
- With screw gland entry
- No
- With duct entry
- No
- Device width
- 102 mm
- Device height
- 48 mm
- Device depth
- 156 mm
- Suitable for modular domestic switching devices
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6438199012063
- SAP 1200752457
- Code 83902489
Product Documentation
More from ABB
ABB
ABB S204M-D50 Miniature Circuit Breaker — 4P, Type D, 50 A, 10 kA
ABB
JF.LYSB.AUT.DS-ARC1 M C16 A30
ABB
Bell Transformer TM 10/12
2CSM228715R0802
ABB

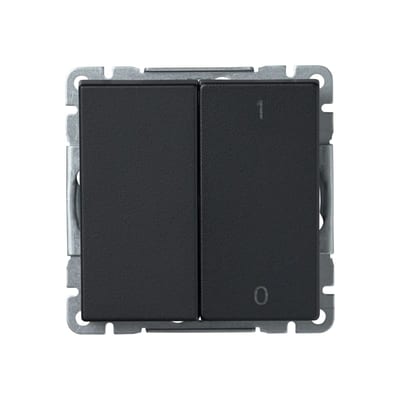

Impressivo Switch 2-1 Flush 2+1P Black Matte
2TKA00004466
ABB

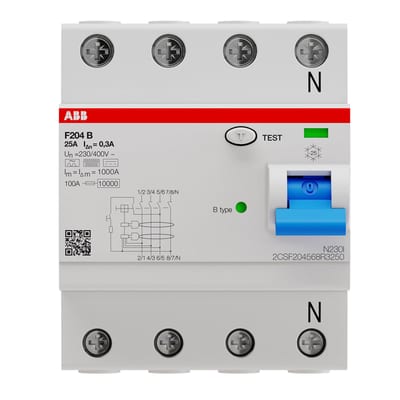

Residual Current Circuit Breaker F204 B 25A/300MA
2CSF204568R3250
ABB
ABB 1SDA067294R1 Magnetic Release Three-POLE IN AC-DC MA Iu 100 I3=600...1400 A XT2
ABB

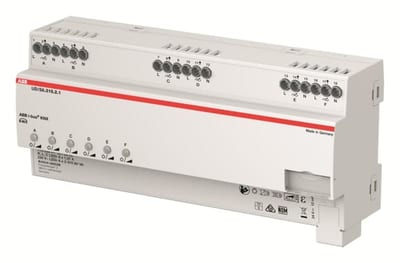

LED Dimmer Universal UD/S6.315.2.1
2CKA006197A0061
ABB

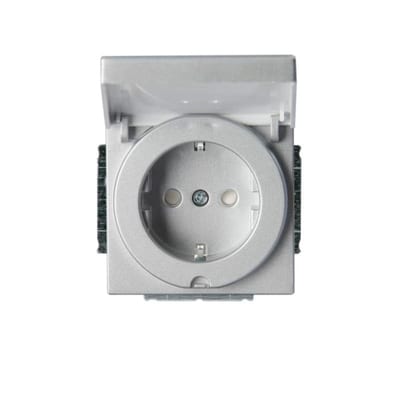

Impressivo In. ENK Socket M Cover IP21 Aluminium
