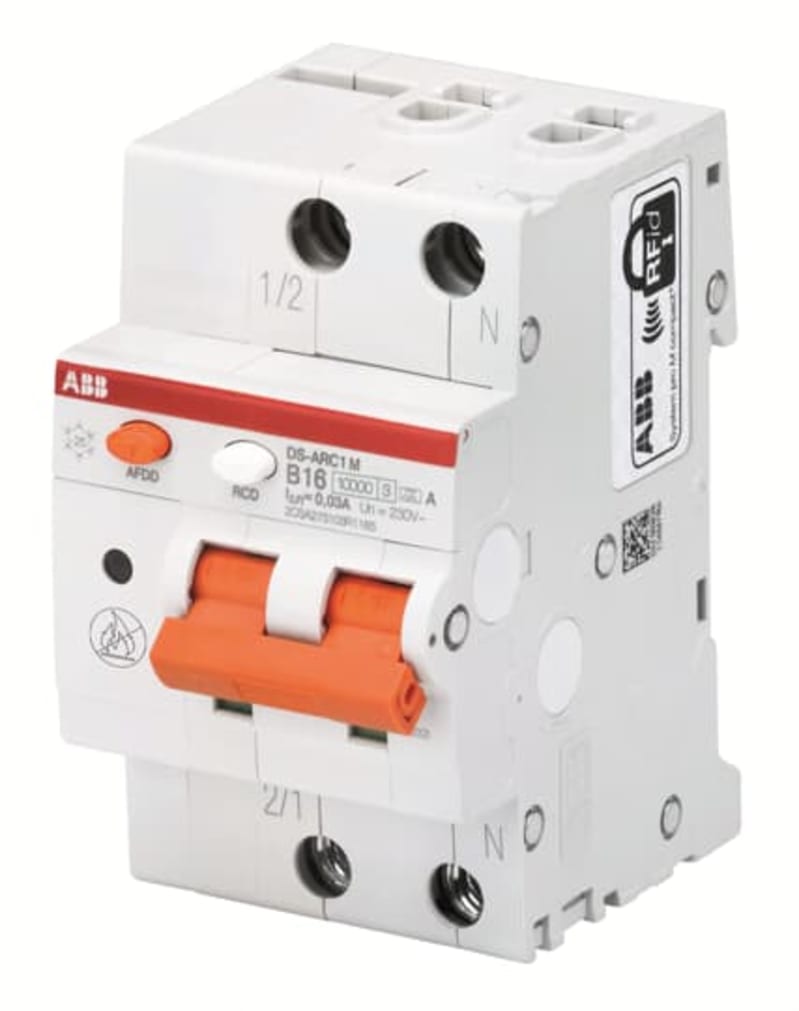

ABB DS-ARC1 M C16 A30 — DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvoltage, short-circuit currents, overload, earth fault currents.
Technical Specifications
- Manufacturer part number (MPN)
- DS-ARC1 M C16 A30
- EAN / GTIN
- 8012542611011
- HS code
- 8536.90
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 21.4196 kg CO₂ eq
- Environmental Product Declaration - EPD
- 9AKK108470A1707
- Type of Residual Current
- Type A
- Test Voltage (Out)
- 170 … 264 V
- Dielectric Test Voltage
- 2.5 kV
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- 10 kA
- Rated Residual Breaking Capacity (IΔm)
- 6 kA
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 7.5 kA
- Power Supply Connection
- Arbitrary
- Contact Position Indication
- Red ON / Green OFF
- Energy Limiting Class
- 3
- Electrical Endurance
- 10000 cycle
- Mechanical Endurance
- 20000 cycle
- Number of Protected Poles
- 1
- Number of Poles
- 1P+N
- Number of Modular Spacings per DIN Rail
- 3
- Fault Indication
- Blue Flag on Toggle
- Operating Characteristic
- Instantaneous
- Position of Neutral Terminals
- Right
- Tightening Torque
- 2.8 N·m
- Accessory Type
- Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release; Bottom fitting auxiliary contact
- Housing Type
- Insulation group I, RAL 7035
- Screw Terminal Type
- Failsafe Bi-directional Cylinder-lift Terminal
- Accessories Available
- Yes
- Mounting Position of Accessories
- Right
- Number of Batteries
- 0
- Connecting Capacity
- Busbar 10 mm²; Rigid 1…25 mm²; Flexible 1…16 mm²
- Wire Stripping Length
- 12 mm
- Terminal Type
- Screw Terminals
- Actuator Type
- Toggle
- Tripping Characteristic
- C
- Rated Operational Voltage
- 230...240 V AC
- Rated Insulation Voltage (U i )
- 500 V
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 16 A
- Rated Residual Current
- 30 mA
- Rated Short-Circuit Capacity
- 10 kA
- Rated Frequency (f)
- 50 … 60 Hz
- Power Loss
- Total 3.1 W
- Overvoltage Category
- III
- Number of Modules
- 3
- Ambient Air Temperature
- Operation -25 ... 55 °C; Storage -40 ... 70 °C
- Reference Ambient Air Temperature
- 30 °C
- Degree of Protection
- Terminals IP20; Housing IP40
- Pollution Degree
- 2
- Environmental Conditions
- 28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 %
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 30g 2 shocks 13 ms
- Width in Number of Modular Spacings
- 3
- Product Net Width
- 52.5 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 69 mm
- Built-In Depth ( t 2 )
- 69 mm
- Dimension Diagram
- 9AKK107046A6174
- EPLAN Data
- 9AAC190691_EPLAN
- Declaration of Conformity - CE
- 9AKK107046A6529
- IMQ Certificate
- 9AKK107046A6177
- VDE Certificate
- 9AKK107046A6968
- Instructions and Manuals
- 9AKK107046A6173; 9AKK106930A8986
- Mounting Type
- DIN-Rail
- Mounting Position
- Any
- ETIM 9
- EC002695 - Earth leakage circuit breaker with auxiliary device
- eClass
- V11.0 : 27142213
- Object Classification Code
- F
- Standards
- IEC/EN 62606; IEC/EN 61009-1; IEC/EN 61009-2-1
