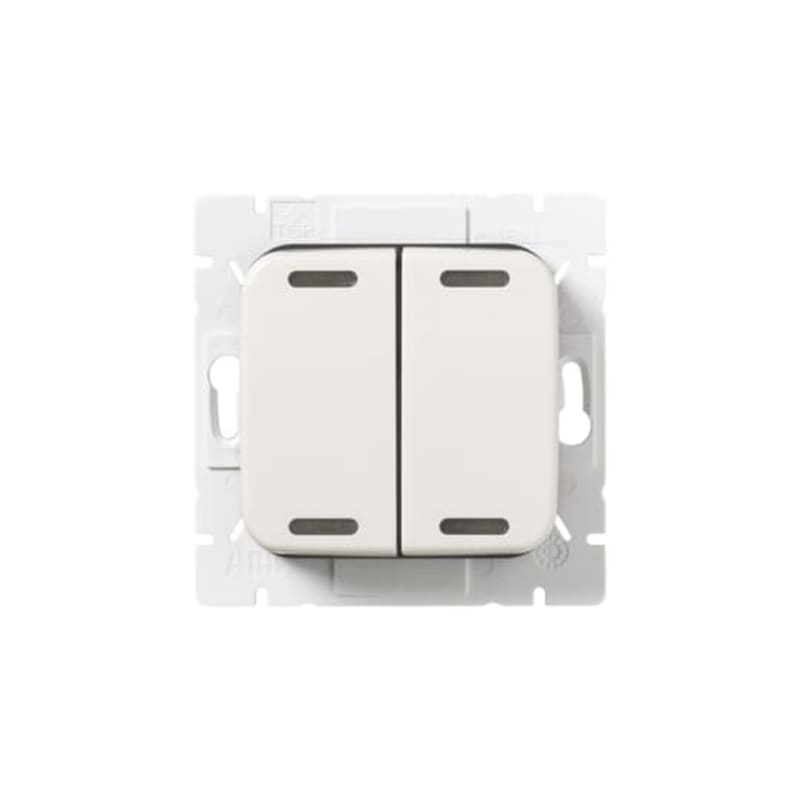

Jussi Impulse Switch 4 Buttons
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00000912 — 4/2-gang push button panel to control bistable relays or electronic control systems. Load capacity 1A AC/DC. White LED-light with adjustable illumination. Installation on surface or on top of a standard flush mounting box.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00000912
- EAN / GTIN
- 6438199002279
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Instructions and Manuals
- 9AKK107045A5978
- Wiring Diagram
- 9AKK107492A8690
- Mounting Type
- Flush mounted (plaster)
- Type of Fastening
- Screw
- Degree of Protection
- IP20
- Contacts Configuration
- 4 NO, 0 NC
- Number of Poles
- 1P
- Number of Rocker Switches
- 4
- Connection Type
- Screw
- Number of Batteries
- 0
- Actuator Type
- Pushbutton
- Rated Voltage (U r )
- 24 V
- Rated Current (I n )
- 1 A
- Number of Contacts CO
- 0
- Number of Contacts NC
- 4
- Number of Contacts NO
- 0
- Design Range
- Jussi
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic, Thermoplastic
- Legend
- None
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9010 - Pure White
- Color
- White
- Number of Gangs
- 1-gang
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 20 mm
- Built-In Depth ( t 2 )
- 21 mm
- Dimension Diagram
- 9AKK108470A7790
- Declaration of Conformity - CE
- 9AKK10103A2355
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000029 - Push button
- Nominal voltage
- 24 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Method of operation
- Push button
- Colour
- White
- Model
- Group push button
- Halogen free
- Yes
- Imprint
- None
- Surface protection
- Untreated
- With signal lamp
- No
- Label space/information surface
- No
- Monitoring contact
- Yes
- Material quality
- Thermoplastic
- Number of rockers
- 4
- With lighting
- No
- Operating principle
- Electronic
- Impact strength
- IK00
- With light source
- No
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Number of contacts as normally closed contact
- 4
- Device width
- 71 mm
- Device height
- 71 mm
- Device depth
- 20 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Min. depth of built-in installation box
- 21 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Contactless type
- No
- Anti-bacterial treatment
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6438199002279
- SAP 1000518660
- Code 8972449
