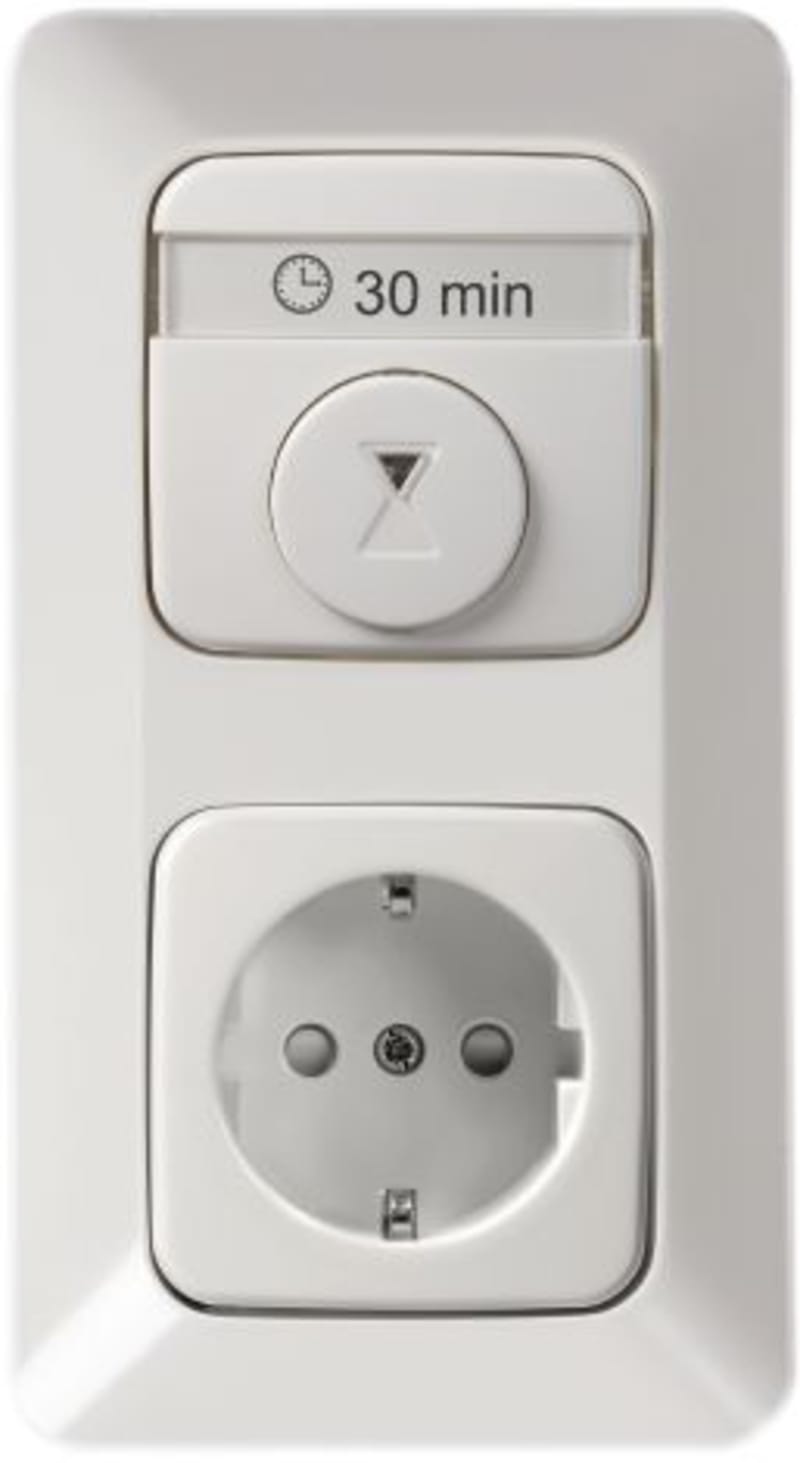

Timer KIT 10A, Recessed
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00001741 — Timer kit include Jussi-timer, single schuko socket outlet and installation frame._x000D_Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. _x000D_230 VAC_x000D_50Hz_x000D_0 - 40C_x000D_IP21_x000D_2-pole wiring_x000D_10A resistiv load (2300W)_x000D_2AX-load (e.g. fluorescent lamp)_x000D_Screw terminals max 2,5mm2_x000D_Signal light when active.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00001741 EAN / GTIN: 6438199003429 Sales unit: pcs Rated current: 10 A Mounting Type: Flush-mounted Type of Fastening: Mounting with Screw Degree of Protection: IP21 minimum Switching Time: 15 min Time Range: 15 … 480 min Number of Batteries: 0 Rated Voltage (U r ): 230 V Rated Current (I n ): 10 A Frequency ( f ): 50 … 50 Hz Power Watt: 2300 W Number of Contacts NO: 1 Design Range: Jussi Surface Finishing: Surface protection: Untreated; Surface finishing: Matt material: Plastic; Thermoplastic RAL Number: RAL 9010 - Pure White Color: White Product Net Width: 155 mm Product Net Height: 85 mm Product Net Depth / Length: 34 mm Declaration of Conformity - CE: 9AKK108472A3445 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC001594 - Time switch clock for domestic switching devices Assembly arrangement: Basic element with complete housing Number of contacts as normally open contact: 1 Model: Electronic Time setting: 15–480 min material quality: Thermoplastic Surface protection: Untreated Colour: White Transparent: No Suitable for degree of protection (IP): IP21 Shortest switching interval: 15 min Random generator: No Nominal voltage: 230 V Astro program: No Substation input: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No With brightness sensor connection: No Compatible with Amazon Alexa: No Max. power: 2300 W IFTTT support available: No Device width: 155 mm Device height: 85 mm Device depth: 34 mm Country of origin: Finland
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 6438199003429
- SAP 1000340995
- Code 8968482
Product Documentation
More from ABB
ABB

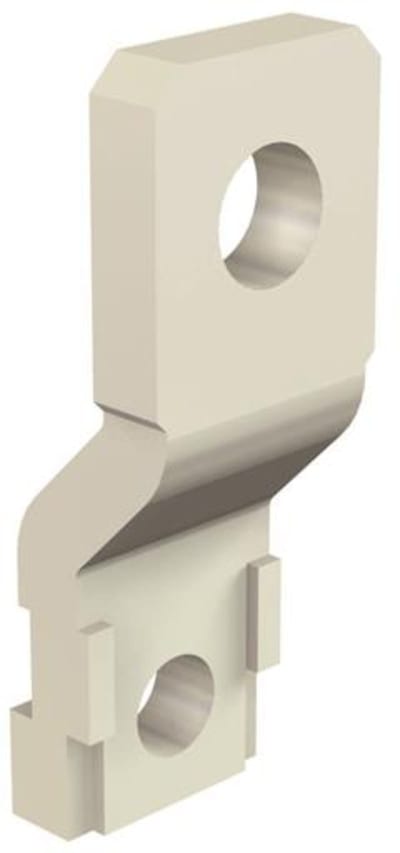

KIT EF, XT1, 3 pcs (KIT EF XT1 3PCS)
KIT EF XT1 3pcs
ABB

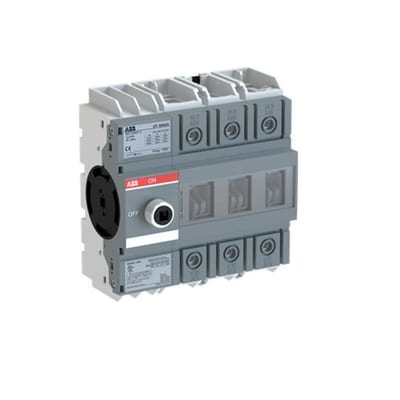

ABB 3-Pole, front operated, base mounted switch-disconnector with protected clamp terminals and with black direct mount handle 1SCA138208R1001
ABB
ABB S401-B25 Miniature Circuit Breaker — 1P+N, Type B, 25 A, 10 kA
2CCS571103R8255
ABB
Plinth TZW405 50X1050X350MM
2CPX010667R9999
ABB
ABB S403-D50 Miniature Circuit Breaker — 3P, Type D, 50 A, 10 kA 2CCS573001R0501
ABB
Residual Current Circuit Breaker F202 A 100A/30MA
2CSF202101R1900
ABB

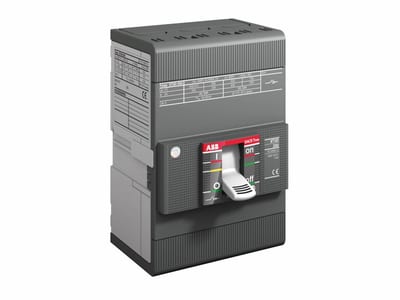

ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — TMD R125, In=125 A, 3-Pole
1SDA068056R1
ABB
ABB MP1-10B PUSHBUTTON, MOM, BLK, Flush, OP Only
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
