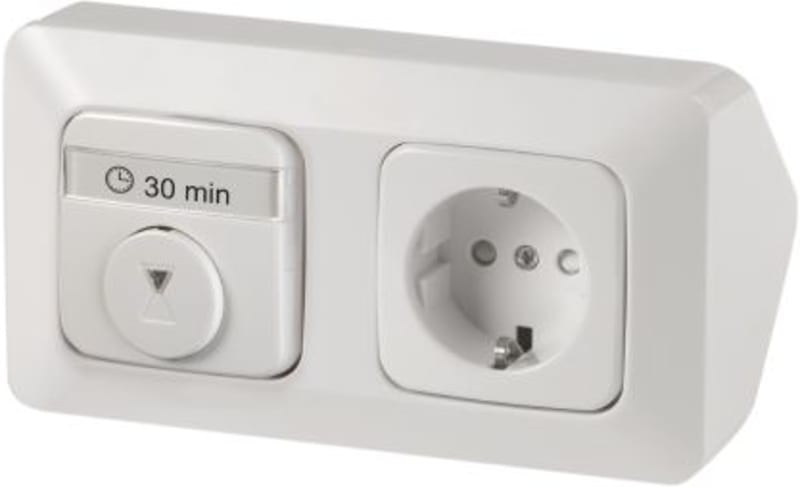

ABB Jussi Mechanical Time Switch 10 A Kit with Surface Box

Kit consisting of a single-outlet mechanical time switch rated 10 A / 230 V and a matching surface-mount corner box for wall installation. Time range is 15 to 480 minutes with a shortest switching interval of 15 minutes and one normally-open contact. Part of the ABB Jussi range in white RAL 9010 with IP21 protection.

Manufacturer part number (MPN)

2TKA00001740 EAN / GTIN: 6438199003412 Sales unit: pcs Rated current: 10 A Mounting Type: Flush-mounted Type of Fastening: Mounting with Screw Degree of Protection: IP21 minimum Switching Time: 15 min Time Range: 15 … 480 min Number of Batteries: 0 Rated Voltage (U r ): 230 V Rated Current (I n ): 10 A Frequency ( f ): 50 … 50 Hz Power Watt: 2300 W Number of Contacts NO: 1 Design Range: Jussi Surface Finishing: Surface protection: Untreated; Surface finishing: Matt material: Plastic; Thermoplastic RAL Number: RAL 9010 - Pure White Color: White Product Net Width: 110 mm Product Net Height: 85 mm Product Net Depth / Length: 71 mm Declaration of Conformity - CE: 9AKK108472A3444 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC001594 - Time switch clock for domestic switching devices Assembly arrangement: Basic element with complete housing Number of contacts as normally open contact: 1 Model: Electronic Time setting: 15–480 min material quality: Thermoplastic Surface protection: Untreated Colour: White Transparent: No Suitable for degree of protection (IP): IP21 Shortest switching interval: 15 min Random generator: No Nominal voltage: 230 V Astro program: No Substation input: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No With brightness sensor connection: No Compatible with Amazon Alexa: No Max. power: 2300 W IFTTT support available: No Device width: 110 mm Device height: 85 mm Device depth: 71 mm Country of origin: Finland

HS Code

8537.10

• EAN 6438199003412
• SAP 1000340994
• Code 8375285
