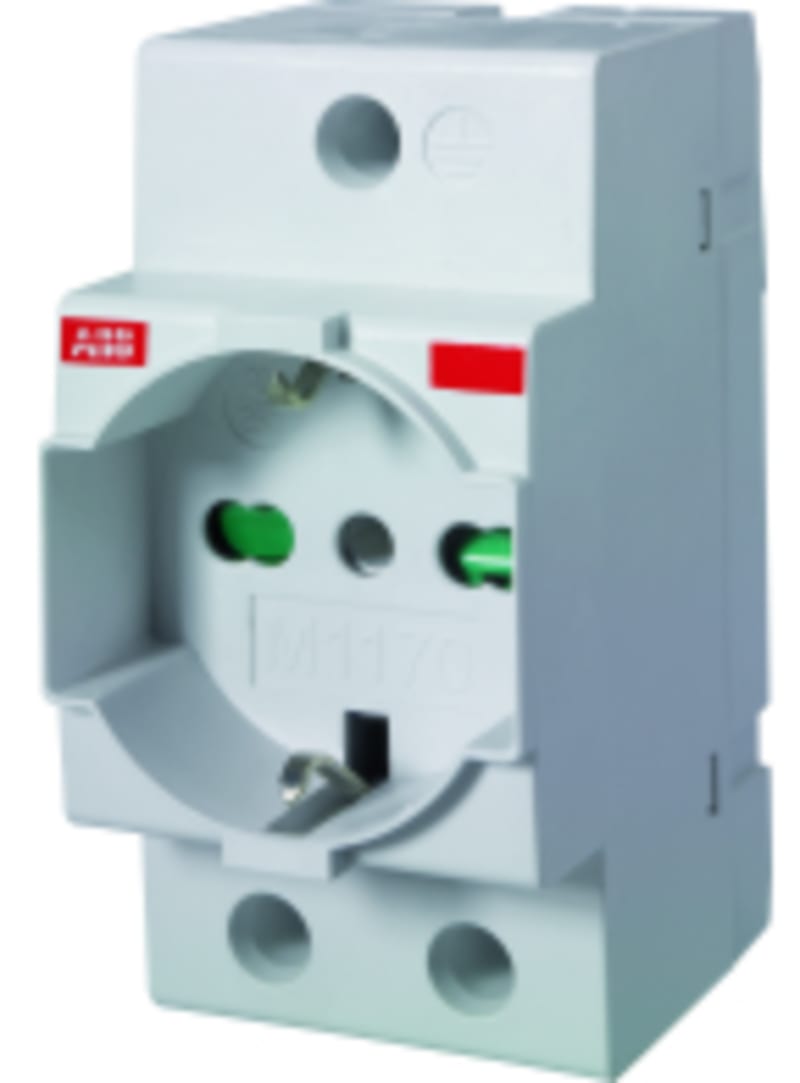

Socket FOR DIN-RAIL M1175-C
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM211000R0721 — This modular socket allows the connection of devices, tools or electrical and electronic non modular equipments in civil and industrial electrical switchboards. With cover.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM211000R0721 EAN / GTIN: 8012542029052 HS code: 8536.90 Sales unit: pcs Number of Active Pin Terminals: 2 Product Type: German Schuko Standard Options Provided: Cover Cable Cross-Section: minimum 2.5 mm²; Maximum 16 mm² Connecting Capacity: Rigid Cu-Cable 2.5 ... 16 mm² Rated Voltage (U r ): 250 V AC Rated Current (I n ): 16 A Rated Frequency (f): 50/60 Hz Power Loss: Total 0.6 W; at Rated Operating Conditions per Pole 0.6 W Color: Grey Ambient Air Temperature: Operation -25 ... +35 °C; Storage -40 ... +70 °C Degree of Protection: IP20 Environmental Information: 9AKK108471A0778 Width in Number of Modular Spacings: 2.5 Product Net Width: 44 mm Product Net Height: 85 mm Product Net Depth / Length: 70 mm Built-In Depth ( t 2 ): 60 mm Dimension Diagram: 9AKK108469A3974 CAD Dimensional Drawing: 9AKK106930A4681 Declaration of Conformity - CE: 9AKK107492A6968 VDE Certificate: 9AKK108472A9415 ETIM 9: EC001663 - Socket outlet for distribution board UNSPSC: 39121406 eClass: V11.0 : 27142305 Object Classification Code: X Certification Agency: VDE
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542029052
- SAP 1000225207
- Code 81133056
Product Documentation
More from ABB
ABB
Impressivo In. DBL Socket M Cover IP21 AL
2TKA00003032
ABB
TMD 16-300 XT2 3P (1SDA067226R1)
ABB
Bell Transformer M. Protection TS 8/8SW
2CSM081302R0811
ABB
ABB CP-RTC-84 As cover for ABB-free@home® room temperature controller RTC-F-1.
ABB
ABB EURO Socket Outlet 3-Way White Matte
2TKA00002906
ABB
Impressivo In. DBL Socket M Cover IP21 White
2TKA00003033
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Switch-Disconnector — 4-Pole
1SDA068297R1
ABB
Jussi 2-H Cover without Frame 22mm
2552R-212
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CSM211000R0721?
- 2CSM211000R0721 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2CSM211000R0721.
- What is the HS code for 2CSM211000R0721?
- The customs tariff (HS) code for 2CSM211000R0721 is 8536.90.
- Who manufactures 2CSM211000R0721?
- 2CSM211000R0721 is a ABB product in the SC001663 range.
- Is a datasheet available for 2CSM211000R0721?
- Yes — the 2CSM211000R0721 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CSM211000R0721?
- The minimum order quantity is 1.
- Is 2CSM211000R0721 available?
- Yes — 2CSM211000R0721 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
