Auxiliary contact E299-11
Pricing
Request a quote
We reply within 24 hours
Product Description

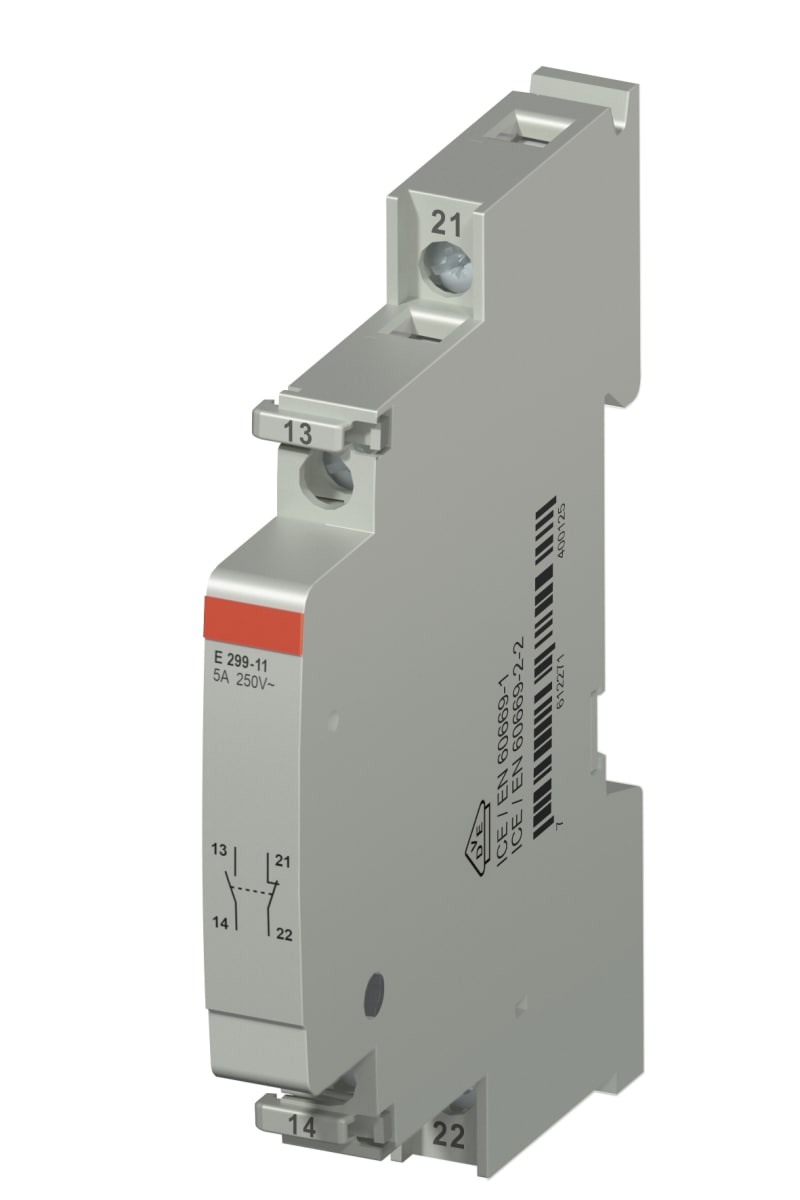

ABB 2CCA704340R0001 — The E299-11 auxiliary contact can be used for impulse switches and installation relays. The E299-11 auxiliary contact is a snap-on additional device that enables individual signalling of the current operating status of the main module via the two integrated contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA704340R0001 EAN / GTIN: 7612270939985 Sales unit: pcs Package quantity: 10 pcs Function: Auxiliary Contact Number of Main Contacts NC: 0 Number of Main Contacts NO: 0 Number of Auxiliary Contacts NC: 1 Number of Auxiliary Contacts NO: 1 Tightening Torque: 1.2 - 1.5 N·m Accessory Type: Other Rated Voltage (U r ): 250 V AC Maximum Control Current DC: 5 A Rated Frequency (f): 50 Hz minimum Switching Capacity: 24 V; 10 mA Power Loss: Total 0.1 W Number of Contacts NC: 1 Number of Contacts NO: 1 RAL Number: RAL 7035 - Light Grey Color: Grey Ambient Air Temperature: Operation -25...+55 °C; Storage -40...+70 °C Environmental Information: 2CCC441012D0202 Product Net Width: 18 mm Product Net Height: 85 mm Product Net Depth / Length: 58 mm Dimension Diagram: 9AKK107992A6182 Declaration of Conformity - CE: 2CCC005102D0201 Declaration of Conformity - UKCA: 9AKK108467A6140 VDE Certificate: VDE E29x_40040851 Mounting Type: DIN-Rail ETIM 9: EC001652 - Installation relay UNSPSC: 39122317 eClass: V11.0 : 27371692 Object Classification Code: K Standards: IEC/EN 60669-1; IEC/EN 60669-2-2 Mounting method: DIN rail Number of contacts as normally open contact: 1 Number of contacts as normally closed contact: 1 Country of origin: Switzerland
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 7612270939985
- SAP 1200640814
- Code 83054157
Product Documentation
