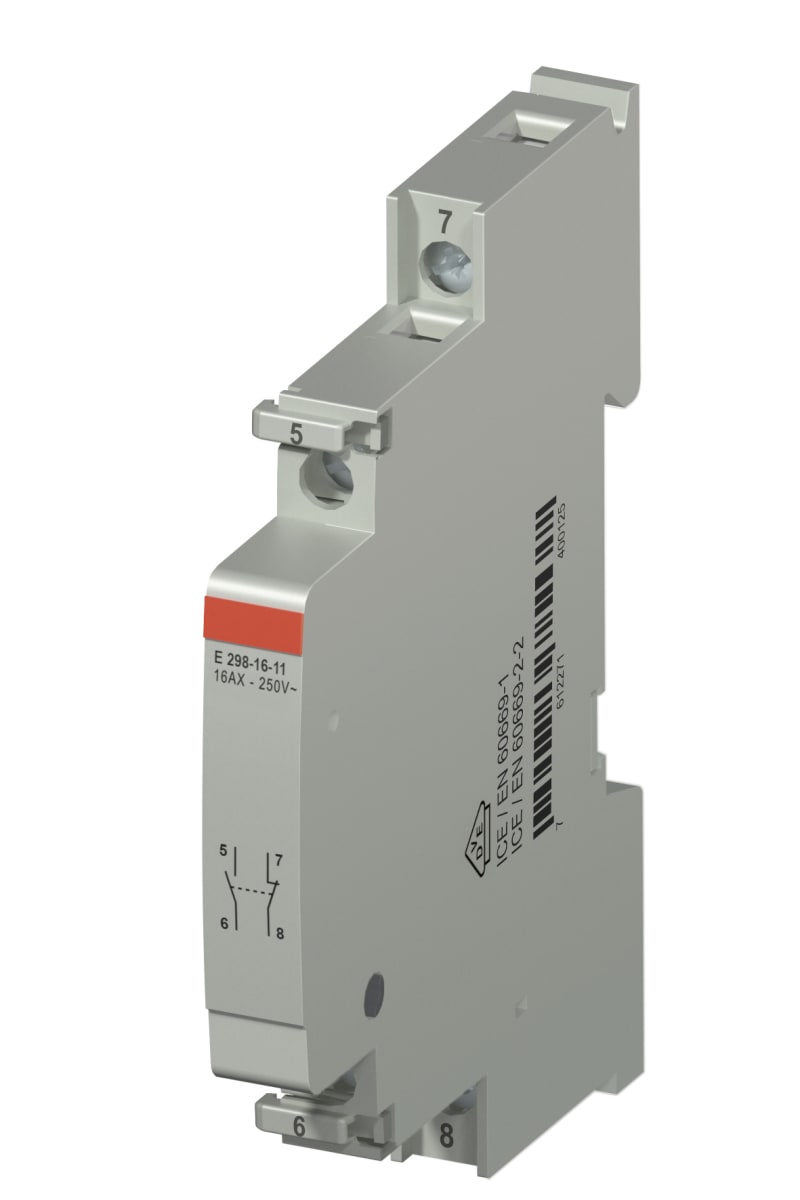

Contact module E298-16-11

ABB 2CCA704321R0001 — Installation relays are electromagnetically operated miniature contactors in the standard DIN width of 18 mm. A reliable control system can be designed using these ABB Installation relays E297. They are used mainly in industrial plants but also in commercial and public buildings. As a rule, installation relays operated by means of a control switch (maintained contact) are installed where it is necessary to operate lighting, an air-conditioning system, a fan or suchlike. Installation relays are also referred to as monostable switching relays or 2-pole miniature contactors. The term monostable means that an on command has to be sent to the coil by means of a control switch (maintained operation) in order to excite the magnetic coil. The coil armature attracts and closes or opens the main contacts. The device remains in the on position for as long as the control voltage is applied to the coil. If the voltage flow to the coil is interrupted, the installation relay always returns to the neutral position (off position). Installation relays and the accessories are available in different versions in order to easily satisfy the various market requirements. Their optimal switching capacity also makes them suitable for use in industrial environments and in situations where it is necessary to ensure control over more powerful consumers (such as e.g. multiple lighting systems). Using an optimized coil (low power loss = lower operating temperature) ensures a clean and safe operation in the electrical distribution board.

Manufacturer part number (MPN)

2CCA704321R0001 EAN / GTIN: 7612270939954 Sales unit: pcs Package quantity: 10 pcs Function: Mechanical installation relay main contact module Rated Control Circuit Voltage (U c ): 11 V DC Number of Main Contacts NC: 1 Number of Main Contacts NO: 1 Number of Auxiliary Contacts NC: 1 Number of Auxiliary Contacts NO: 1 Tightening Torque: 1.2 - 1.5 N·m Connecting Capacity: Solid 1 x 1 ... 10 mm²; Flexible 2 x 2.5 mm²; Flexible with Cable End 1 x 0.75 ... 6 mm²; Flexible with Cable Lug 1 x 0.75 ... 6 mm² Rated Voltage (U r ): 250 V AC Rated Operational Voltage: 250 V AC Supply Voltage: 250...250 V Rated Current (I n ): 16 A Maximum Control Current DC: 5 A Rated Frequency (f): 50 .. 60 Hz minimum Switching Capacity: 24 V; 10 mA Power Loss: Total 0.32 W Number of Contacts NC: 1 Number of Contacts NO: 1 RAL Number: RAL 7035 - Light Grey Color: Grey Ambient Air Temperature: Operation -25...+55 °C; Storage -40...+70 °C Environmental Information: 2CCC441012D0202 Width in Number of Modular Spacings: 0.5 Product Net Width: 9 mm Product Net Height: 85 mm Product Net Depth / Length: 58 mm Built-In Depth ( t 2 ): 62 mm Dimension Diagram: 9AKK107992A6182 Declaration of Conformity - CE: 2CCC005103D0201 Declaration of Conformity - UKCA: 9AKK108467A6140 VDE Certificate: VDE_E297_40041228 Instructions and Manuals: 2CCC441006M0801 Mounting Type: DIN-Rail ETIM 9: EC001652 - Installation relay UNSPSC: 39122317 eClass: V11.0 : 27142309 Object Classification Code: K Standards: EN 60669-1; EN 60669-2-2 Mounting method: DIN rail Number of contacts as normally open contact: 1 Number of contacts as normally closed contact: 1 Voltage type (supply voltage): AC/DC Country of origin: Switzerland

HS Code

8536.20

• EAN 7612270939954
• SAP 1200640816
• Code 83054152
