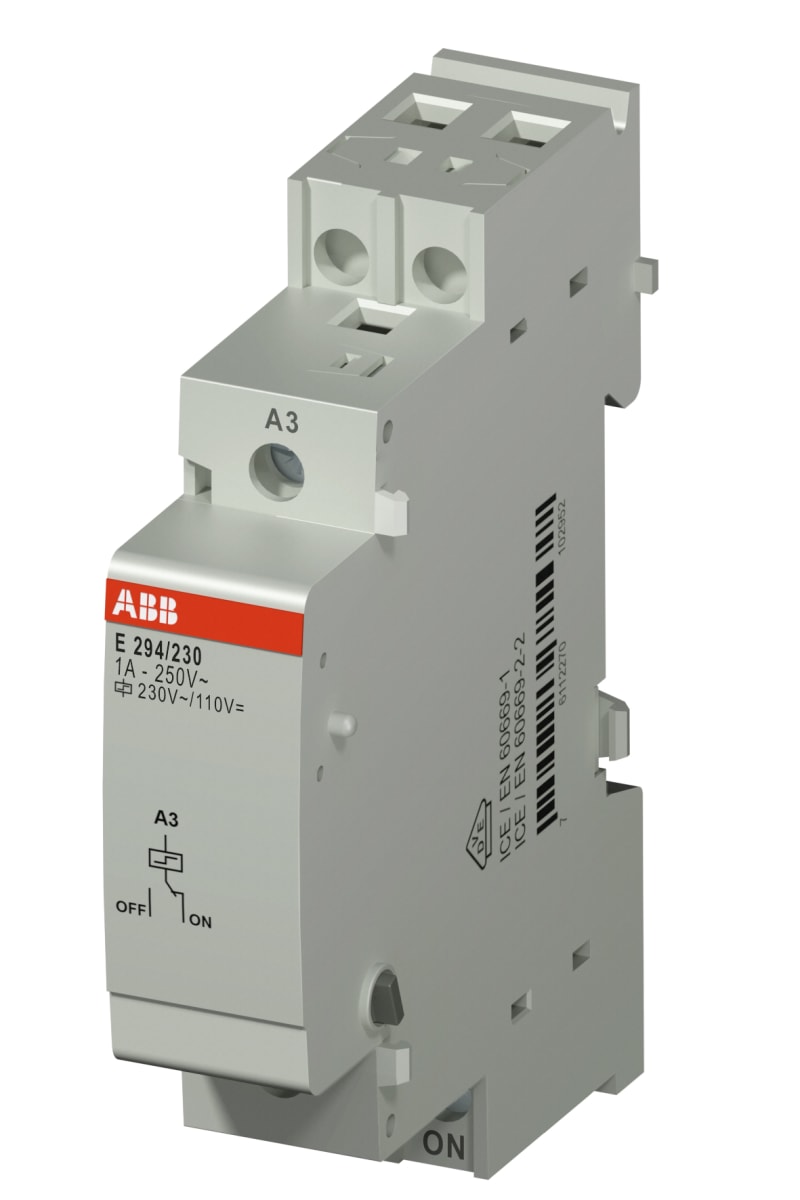

ABB Impulse Relay OFF/ON Add-On E294 230 V AC

ABB 2TAZ312001R2013 — Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy-saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. The E294 add-on provides centralised OFF/ON control alongside standard impulse-button operation, so lighting can be forced to a known state from a supervisory point. It is rated 230 V AC, 1 A, with a coil pull-in current of 0.120 A and 18 mm module width for DIN-rail mounting alongside E290 main modules.

Manufacturer part number (MPN)

2TAZ312001R2013

EAN / GTIN

7612270939442

Sales unit

pcs

Package quantity

5 pcs

Function

Mechanical for centralized control

Rated Control Circuit Voltage (U c )

230 V AC

Number of Main Contacts NC

0

Number of Main Contacts NO

0

Tightening Torque

1.2 - 1.5 N·m

Accessory Type

Other

Coil Consumption

Control Voltage V AC 230 V AC; Average Pull-in Value 50 Hz 0.120 A

Connecting Capacity

Solid 1 x 1 ... 10 mm²; Flexible 2 x 2.5 mm²; Flexible with Cable End 1 x 0.75 ... 6 mm²; Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Rated Voltage (U r )

250 V AC

Rated Control Supply Voltage (U s )

250 V AC

Rated Current (I n )

1 A

Rated Frequency (f)

50 Hz

RAL Number

RAL 7035 - Light Grey

Color

Grey

Ambient Air Temperature

Operation -25...+55 °C; Storage -40...+70 °C

Environmental Information

2CCC441012D0202

Climate Class Reference Standard

IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens; IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen.; IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens

Product Net Width

18 mm

Product Net Height

85 mm

Product Net Depth / Length

58 mm

Dimension Diagram

9AKK107992A6184

Declaration of Conformity - CE

2CCC005102D0201

Declaration of Conformity - UKCA

9AKK108467A6139

VDE Certificate

VDE E29x_40040851

Instructions and Manuals

2CCC441005M0801

Mounting Type

DIN-Rail

ETIM 9

EC000188 - Latching relay

UNSPSC

39122317

eClass

V11.0 : 27371692

Object Classification Code

K

Standards

IEC/EN 60669-1; IEC/EN 60669-2-2

Country of origin

Bulgaria

HS Code

8536.20

• EAN 7612270939442
• SAP 1200640780
• Code 83055428
