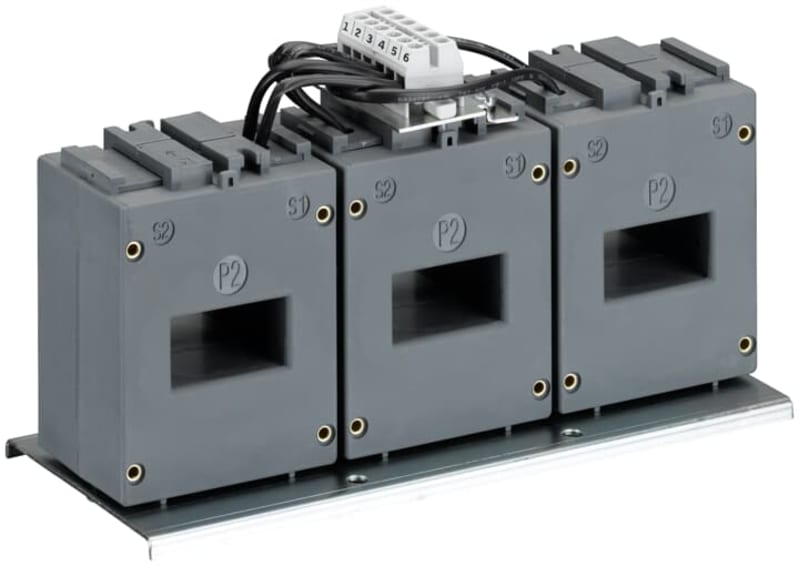

ABB UMC Current Transformer CT5L500R/4
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB CT5L500R/4 is a three-phase current transformer for the UMC100-FBP and UMC100.3 universal motor controllers. Nominal primary current is 500 A with a rated range of 310 to 500 A and a secondary current of 4 A. Screw-terminal connection accepts 1.5 to 6 mm squared conductors with a 7 mm stripping length. Complies with IEC/EN 60947-1 and IEC/EN 60947-4-1.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ929501R0500
- EAN / GTIN
- 4013614482137
- Sales unit
- pcs
- Configuration Only
- No
- Country of Origin
- Germany
- Criticality
- No
- Lead Time
- 24 day
- Note
- No
- Product Availability Class
- On Request, Both availability and price will be quoted case by case. Check the replacement/alternative part
- Product Sales Status
- Active
- Storage Location
- 4001
- Product Net Width
- 245 mm
- Product Net Depth / Length
- 100 mm
- Product Net Height
- 135 mm
- Connecting Capacity
- 1x 1.5-6 mm²
- Recommended Screw Driver
- Pozidriv 1
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1
- Suitable For
- UMC100-FBP; UMC100.3
- Suitable for Product Class
- Universal Motor Controllers
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 16-10 AWG; Rigid 1x 16-10 AWG
- ABS Certificate
- 9AKK106930A7739
- ATEX Certificate
- Not available
- CB Certificate
- DK-41658-A1-UL
- cULus Certificate
- CULUS508_20120727-E356879
- Declaration of Conformity - CE
- 1SVD981040-00
- DNV Certificate
- TAA000015X-revision4
- GL Certificate
- 1SAA962005-0401
- eClass
- V11.0 : 27210902
- E-Number (Norway)
- 4552513
- ETIM 6
- EC002048 - Current transformer
- IDEA Granular Category Code (IGCC)
- 4183 >> Current transformer
- Object Classification Code
- T
- UNSPSC
- 39121032
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 4013614482137
- SAP 1200640708
- Code 83056396
Product Documentation
