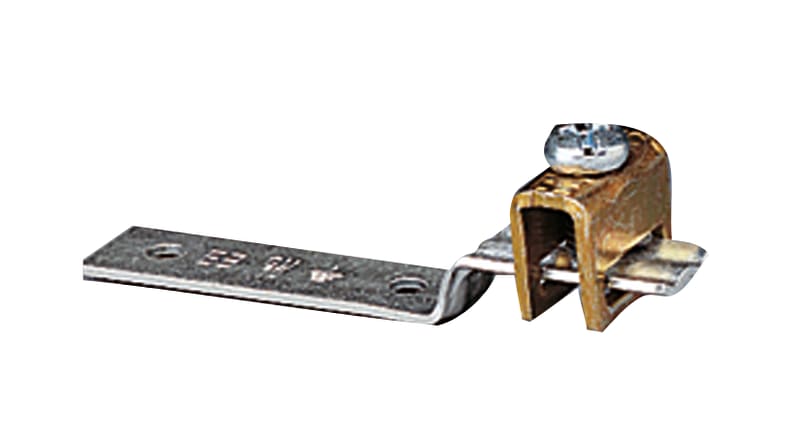

Jordpotensialklemme AM 11
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA110001G1 — The AM11 earthing connector is intended to be used for potential equalization of ventilation ducts. The earthing connector has a single pillar terminal accepting copper conductor with cross-section of 1,5-10 mm². Pillar terminal screw has SL-PH1 head. The terminal bar is made of tinned copper and pillar terminal of galvanized steel. Connector has two fixing holes with Ø 3,2 mm diameter, for blind rivets. Peeling lenght of conductor is 15 mm and tightening torque of pillar terminal is 2,5 Nm.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA110001G1
- EAN / GTIN
- 6410019130515
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 86.2 %
- Sustainable Material Content in Packaging (wt. %)
- Mechanically Recycled Polymer - 8.1 %; Recycled Cardboard - 62.9 %
- End Of Life Disassembling Instructions
- 9AKK108468A2670
- Number of Conductors
- 1
- Number of Batteries
- 0
- Cross-Section ( A cross )
- Connecting Conductors 4 ... 10 mm²
- Material
- Metal, Copper
- Environmental Information
- 9AKK108468A2670
- Product Net Width
- 0.06 m
- Product Net Height
- 0.015 m
- Product Net Depth / Length
- 0.02 m
- Dimension Diagram
- 9AKK108469A9143
- Declaration of Conformity - CE
- 9AKK108472A4275
- ETIM 9
- EC000493 - Earthing pipe clamp
- Cross section of the connecting conductor
- 4–10 mm²
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6410019130515
- SAP 1000513405
- Code 8630167
Product Documentation
