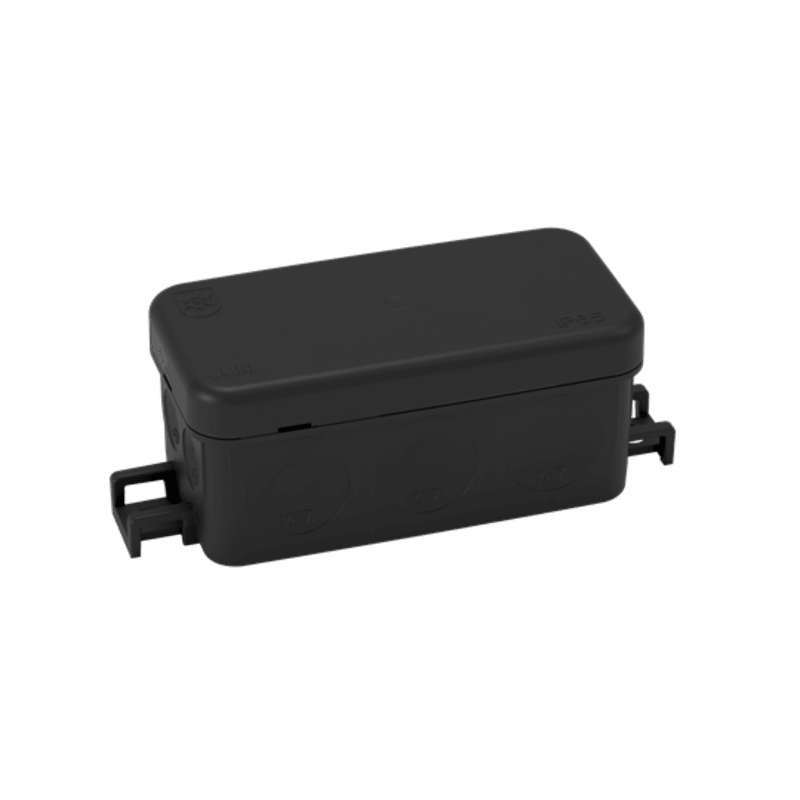

Junction BOX AP45 Black IP65
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AP45M JUNCTION BOX AP45 BLACK IP65 105X43X40MM IP65.
Technical Specifications
- Manufacturer part number (MPN)
- AP45M
- EAN / GTIN
- 6438199012582
- Sales unit
- pcs
- Package quantity
- 24 pcs
- IP rating
- IP65
- Model
- Junction box
- Max. conductor cross section
- 2.5 mm²
- Equipped with
- None
- Shape
- Square
- Mounting method
- Universal
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- Yes
- Length
- 105 mm
- Width
- 43 mm
- Depth
- 40 mm
- Diameter
- 105 mm
- Connectable
- No
- Number of inlets
- 12
- Type of housing feed-through
- Seal membrane
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Black
- Degree of protection (IP)
- IP65
- Cover model
- Blind cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Castable
- No
- Casting compound included
- No
- Sealable
- No
- Rated insulation voltage Ui
- 500 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Operating temperature
- -25–60 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 6438199012582
- SAP 1200705412
- Code 83624228
Product Documentation
More from ABB
ABB

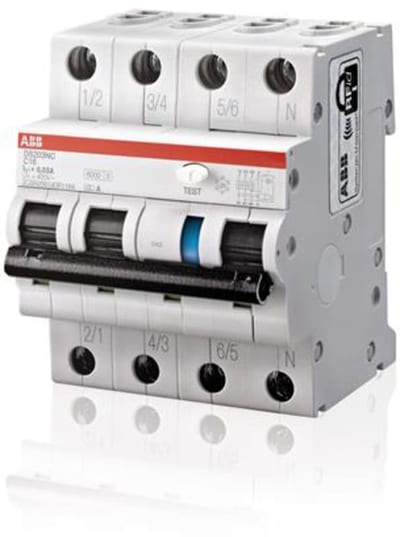

JF.AUT.DS203NC-C16/0.03 (DS203NC C16 A30)
ABB

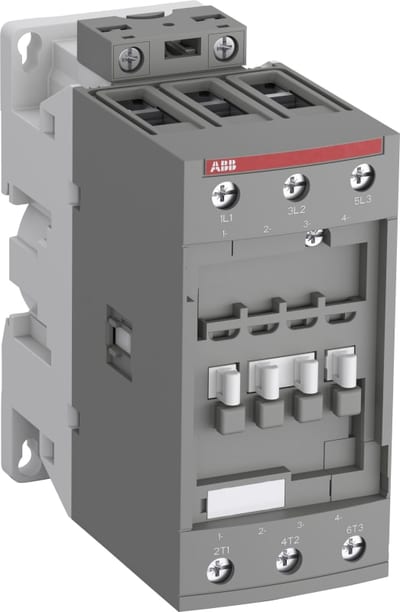

Contactor AF65-30-00-13 (AF65-30-00-13 100-250V50/60HZ-DC)
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LS/I, In=160 A, 4-Pole
XT2N 160 Ekip LS/I In=160A 4pFF InN=100%
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C10A 30MA
DS202CR M C10 A30
ABB
JF.AUT.DS203NC-C32/0.03 (DS203NC C32 A30)
ABB
Safety Switch OTP63, 63A, 4P
OTP63T4M
ABB
SAGA BT Thermostat ROM/Floor M GF. without Frame
2TKA00005263
ABB

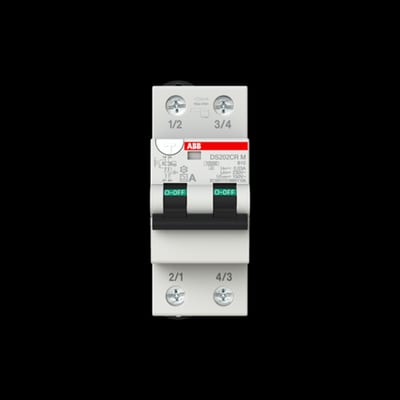

Residual Current Circuit Breaker WITH Overcurrent DS202CRM B10A 30MA
