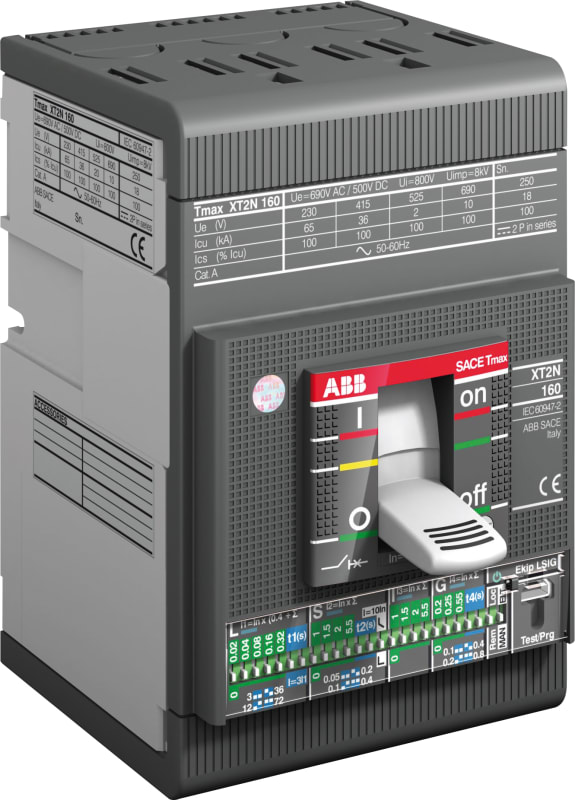

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LS/I, In=160 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2N 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 160 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip LS/I (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC; neutral pole rated 100% of In. Conforms to IEC/EN 60947-2. EAN 8015644010003, ABB/SAP material 1000407313, catalogue code 8920340.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2N 160 Ekip LS/I In=160A 4p FF InN=100%
- EAN / GTIN
- 8015644010003
- ABB / SAP material no.
- 1000407313
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- Ekip LS/I
- Rated uninterrupted current In
- 160 A
- Poles
- 4
- Neutral pole rating
- 100% of In
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644010003
- SAP 1000407313
- Code 8920340
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C10A 30MA
DS202CR M C10 A30
ABB
JF.AUT.DS203NC-C32/0.03 (DS203NC C32 A30)
ABB
Safety Switch OTP63, 63A, 4P
OTP63T4M
ABB
SAGA BT Thermostat ROM/Floor M GF. without Frame
2TKA00005263
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM B10A 30MA
DS202CR M B10 A30
ABB
Safety Switch OTP63T3M 63A 3P
ABB
IMPRESSIVO surface-mounted double socket, IP44, anthracite
2TKA00001754
ABB
HTC XT2, 3P, terminal covers, high, 2 pcs
HTC XT2 3p TERMINAL COVERS HIGH 2pcs
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XT2N 160 Ekip LS/I In=160A 4pFF InN=100%?
- XT2N 160 Ekip LS/I In=160A 4pFF InN=100% can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is XT2N 160 Ekip LS/I In=160A 4pFF InN=100%.
- What is the HS code for XT2N 160 Ekip LS/I In=160A 4pFF InN=100%?
- The customs tariff (HS) code for XT2N 160 Ekip LS/I In=160A 4pFF InN=100% is 8536.20.
- Who manufactures XT2N 160 Ekip LS/I In=160A 4pFF InN=100%?
- XT2N 160 Ekip LS/I In=160A 4pFF InN=100% is a ABB product in the Electrical Components range.
- Is a datasheet available for XT2N 160 Ekip LS/I In=160A 4pFF InN=100%?
- Yes — the XT2N 160 Ekip LS/I In=160A 4pFF InN=100% datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XT2N 160 Ekip LS/I In=160A 4pFF InN=100%?
- The minimum order quantity is 1.
- Is XT2N 160 Ekip LS/I In=160A 4pFF InN=100% available?
- Yes — XT2N 160 Ekip LS/I In=160A 4pFF InN=100% is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
