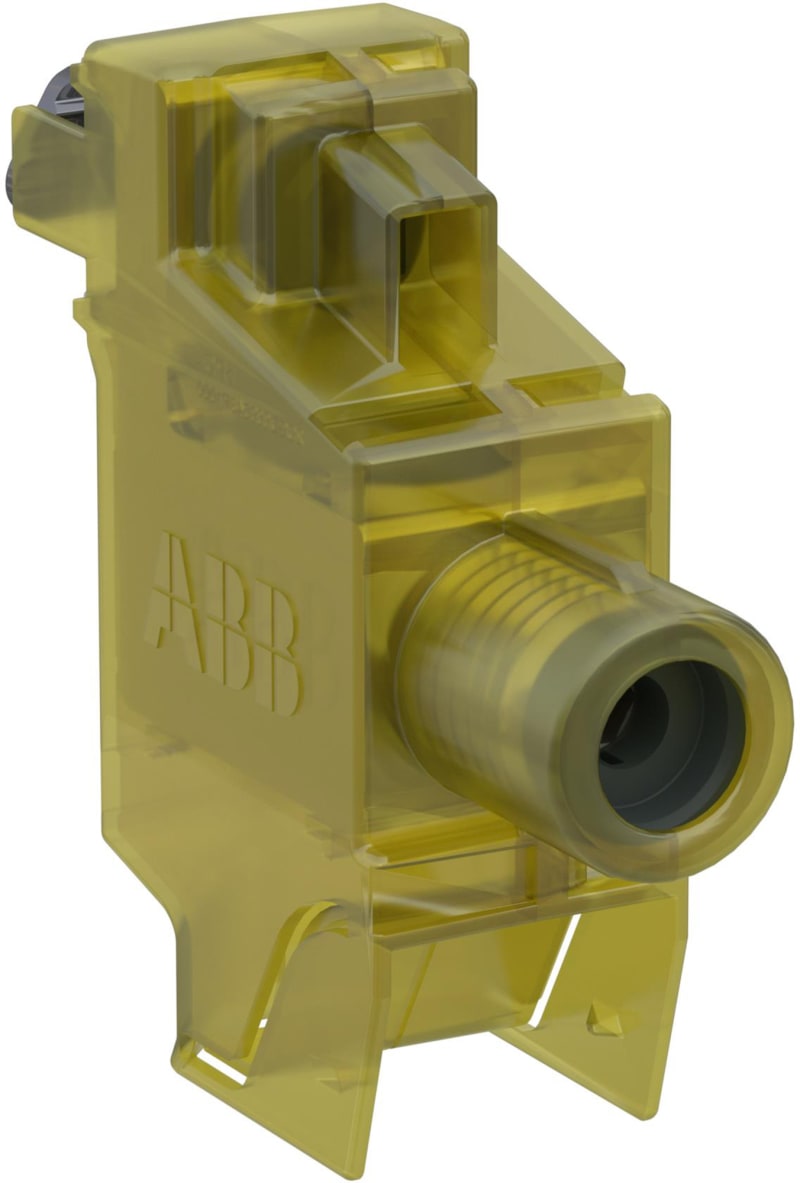

Insulated Connection Terminal ADI 300
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CGD000503A1000 — Insulated connector suitable for connection to ABB Kabeldon IP 20 phase busbars. Connectable conductor area 50-300 mm2, Al/Cu.
Technical Specifications
- Manufacturer part number (MPN)
- 2CGD000503A1000
- EAN / GTIN
- 7331980000630
- Sales unit
- pcs
- Package quantity
- 50 pcs
- End Of Life Disassembling Instructions
- 9AKK108471A8569
- Environmental Information
- 2CGC0091
- Environmental Product Declaration - EPD
- 2CGC0149
- Degree of Protection
- acc. to IEC 60529 IP2X
- Product Net Width
- 35 mm
- Product Net Height
- 100 mm
- Product Net Depth / Length
- 99 mm
- Cable Cross-Section
- 50 ... 300 mm²
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Voltage
- 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 36.2 kA
- Standards
- IEC 61238-1-1
- Tightening Torque
- 20 N·m; Wire-Clamp 20..35 N·m
- Declaration of Conformity - CE
- 2CGC0051
- ETIM 9
- EC000001 - Busbar terminal
- eClass
- V11.1 : 27141146
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 5411057
- E-Number (Norway)
- 1145515
- E-Number (Sweden)
- 0732794
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7331980000630
- SAP 1200336660
- Code 82352432
Product Documentation
