1NO+1NC Auxiliary contactside CAL19-11
Pricing
Request a quote
We reply within 24 hours
Product Description

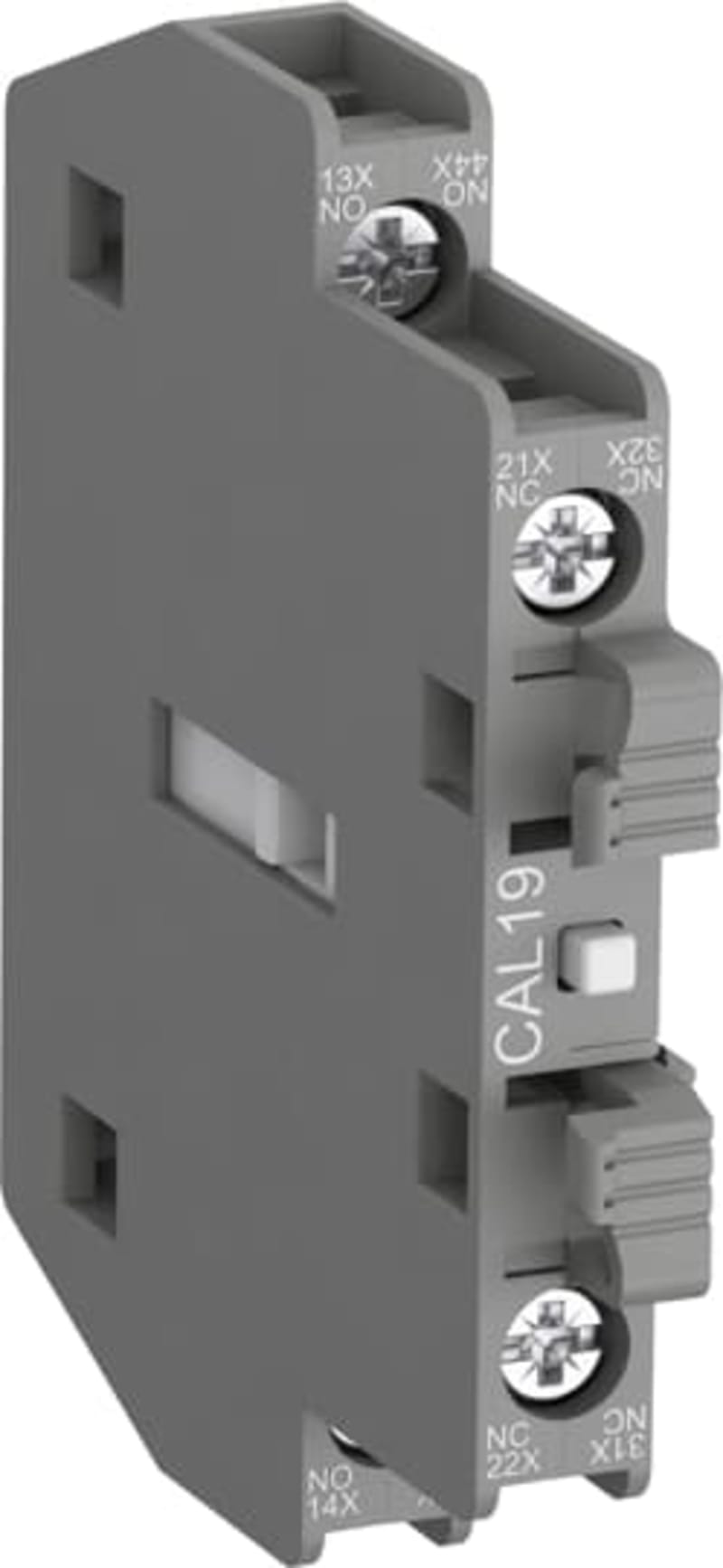

ABB CAL19-11 — Auxiliary contact block for contactors AF116…AF370.
Technical Specifications
- Manufacturer part number (MPN)
- CAL19-11
- EAN / GTIN
- 7320500476659
- Sales unit
- pcs
- Contact configuration
- 1 NO + 1 NC
- Country of Origin
- Czechia
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 79 mm
- Product Net Depth / Length
- 14.9 mm
- Product Net Height
- 67.3 mm
- Number of Auxiliary Contacts NO
- 1
- Number of Auxiliary Contacts NC
- 1
- Rated Operational Voltage
- Auxiliary Circuit 24 ... 690 V
- Power Loss
- at Rated Operating Conditions per Pole 0.15 W
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Ferrule 2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²; Solid 1x 1 ... 4 mm²; Solid 2x 1 ... 4 mm²
- Wire Stripping Length
- Auxiliary Circuit 9 mm
- Degree of Protection
- IP20
- Recommended Screw Driver
- Auxiliary Circuit 1 x 5.5; Auxiliary Circuit Pozidriv 2
- Tightening Torque
- Auxiliary Circuit 1 N·m
- Terminal Type
- Screw Terminals
- Suitable For
- AF116; AF140; AF146; AF190; AF205; AF265; AF305; AF370; AF116B; AF140B; AF146B; AF190B; AF205B; AF265B; AF305B; AF370B
- Suitable for Product Class
- Block Contactors
- A2L Certificate – UL
- 9AKK108468A6695
- CQC Certificate
- CQC2013010304607426
- Declaration of Conformity - CCC
- 2020980304001266
- Declaration of Conformity - CE
- 2CMT2015-005448
- Declaration of Conformity - UKCA
- 2CMT2020-006119
- UL Certificate
- 20120613-E76003
- Object Classification Code
- K
- ETIM 7
- EC000041 - Auxiliary contact block
- eClass
- V11.0 : 27371302
- UNSPSC
- 39121522
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- E-Number (Finland)
- 3706108
- E-Number (Norway)
- 4117831
- E-Number (Sweden)
- 3210173
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500476659
- SAP 1000506080
- Code 8348372
Product Documentation
