Wibe Group

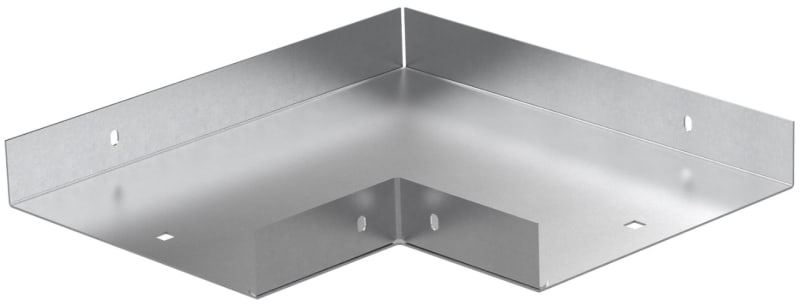

Angle 90° W10SKH/40-300 FZS HV
Part number729135EAN / GTIN7321677291359HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 729135 Wibe - 90 degree bend W10/40-300 - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 729135
- EAN / GTIN
- 7321677291359
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Segmental bend
- With cover
- No
- Cable tray height
- 40 mm
- Cable tray width
- 300 mm
- Material thickness
- 1.25 mm
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.85 kg
- Length pack 1
- 398 mm
- Width pack 1
- 398 mm
- Height pack 1
- 40 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 42
- Weight pack 4
- 53 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 530 mm
- Net weight
- 1.85 kg
- Country of origin
- SE
- ETIM class
- EC002400
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677291359
- SAP 1000065885
- Code 8553047
Product Documentation
Document preview: Angle 90° W10SKH/40-300 FZS HV (729135) — Specification sheet
