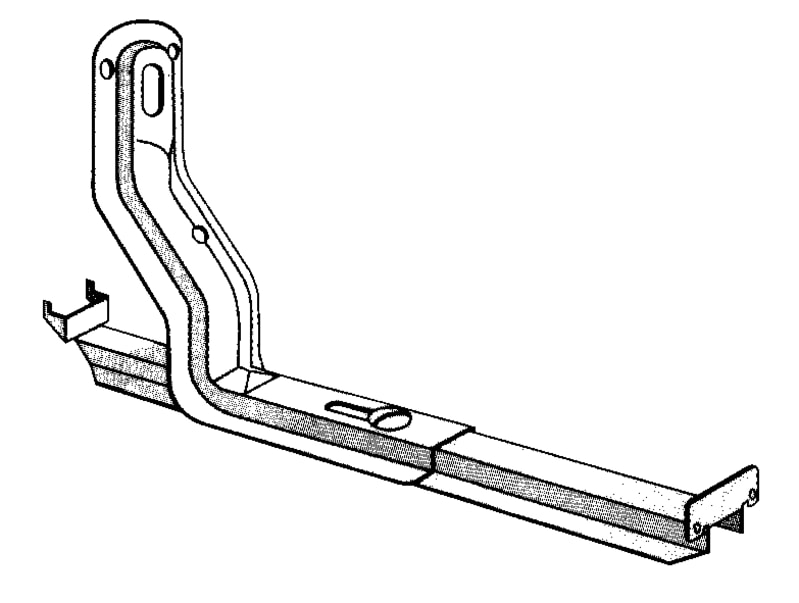

Wibe Group 783594 Adjustable Cantilever Arm W1840-600 White, 2 pcs
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 783594 Wibe adjustable cantilever arm, W1840-600, steel painted white NCS S 0500 N gl30 over pre-galvanised base. Wall- and profile-console model at 90°, with a maximum safe working load of 588 N per IEC 61537. Supplied in packs of 2. Country of origin: Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 783594
- EAN / GTIN
- 7321677835942
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 639 mm
- Width
- 60 mm
- Height
- 185 mm
- Suitable for cable management system width
- 600 - 600 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 588 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.75 kg
- Length pack 1
- 617 mm
- Width pack 1
- 96 mm
- Height pack 1
- 184 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 30
- Weight pack 4
- 82.5 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 1.75 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677835942
- SAP 1000563906
- Code 8679037
Product Documentation
