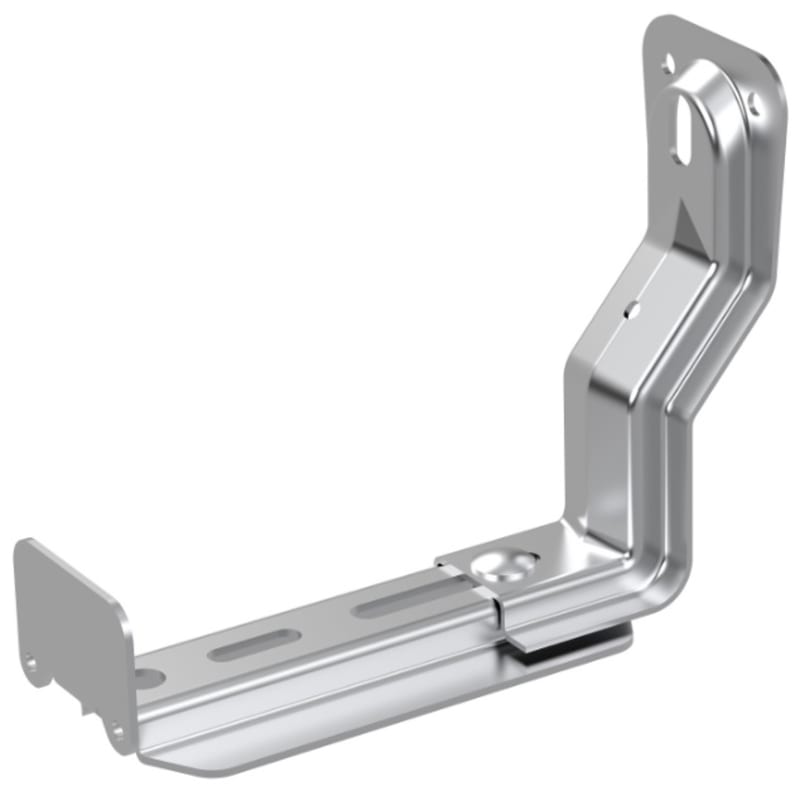

Adjustable Bracket W18/40-500 FZS HV
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 783593 adjustable cantilever arm W18/40-500 in pre-galvanized steel, painted white (NCS S 0500 N gl30) for 500 mm cable-management systems. Corrosion class C2 with a safe working load of 764 N to IEC 61537.
Technical Specifications
- Manufacturer part number (MPN)
- 783593
- EAN / GTIN
- 7321677835935
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 539 mm
- Width
- 60 mm
- Height
- 185 mm
- Suitable for cable management system width
- 500 - 500 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 764 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.56 kg
- Length pack 1
- 517 mm
- Width pack 1
- 96 mm
- Height pack 1
- 184 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 40
- Weight pack 4
- 92.4 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 1.56 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677835935
- SAP 1000563905
- Code 8110733
Product Documentation
More from Wibe Group
Wibe Group
Ceiling Pendant 2F/370 FOR K-Ladder SF
725563
Wibe Group
Wibe T-Joint W29/60-600 — Pre-galvanized steel
783184
Wibe Group
Ceiling Pendant BM20F-2000 Fzv
CSU795904
Wibe Group
Cable clips ARX2-44 Z+
CSU795614
Wibe Group
Cover 90° Bend -400 Fzs
732325
Wibe Group
Telerenne 36/200 2M Z+
CSU795936
Wibe Group
Ceiling Pendant 2FI-500 FZS C2
792724
Wibe Group

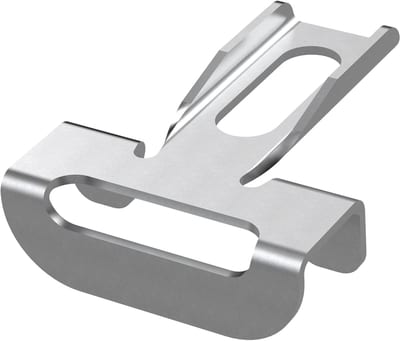

Wibe Group Locking Hook W77 Pre-Galvanised
