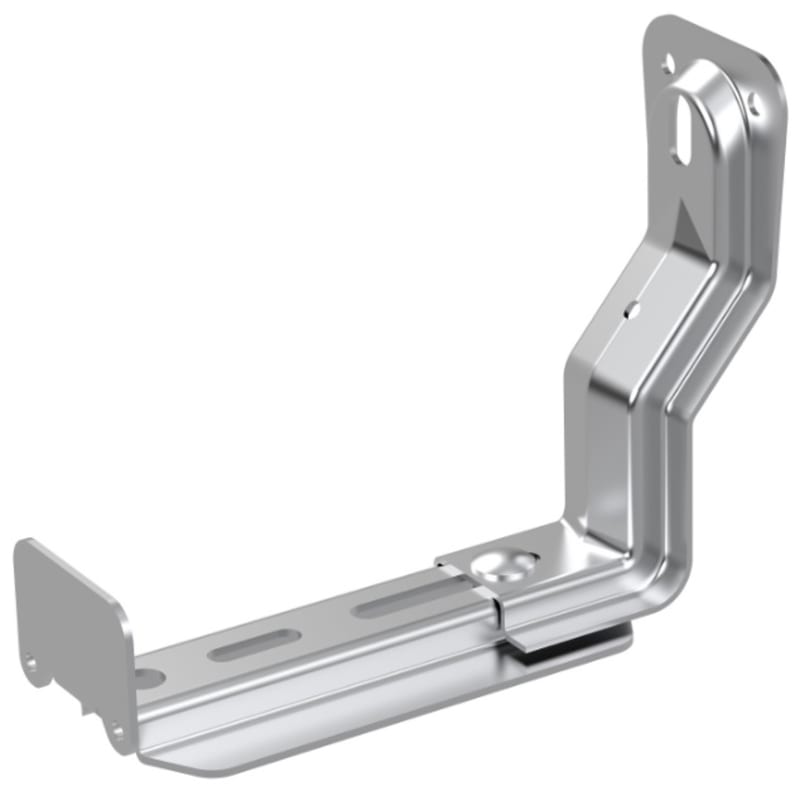

Wibe Group Adjustable Cantilever Arm W18/40-300 FZS Steel White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 783591 is an adjustable cantilever arm W18/40-300 in pre-galvanised painted steel, finished in white NCS S 0500 N gl30. It suits cable management systems 300 mm wide at a 90 degree angle, with a safe working load of 1,765 N per IEC 61537. Overall length 339 mm and height 185 mm; supplied in packs of two.
Technical Specifications
- Manufacturer part number (MPN)
- 783591
- EAN / GTIN
- 7321677835911
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 339 mm
- Width
- 60 mm
- Height
- 185 mm
- Suitable for cable management system width
- 300 - 300 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1765 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.2 kg
- Length pack 1
- 317 mm
- Width pack 1
- 96 mm
- Height pack 1
- 184 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 70
- Weight pack 4
- 114 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 1.2 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677835911
- SAP 1000563903
- Code 8666344
Product Documentation
More from Wibe Group
Wibe Group
Wibe Joint W7/40-600 — Zinc + epoxy powder-coated steel, white
791290
Wibe Group
Ceiling Pendant 2FI-750 FZS C2
792725
Wibe Group

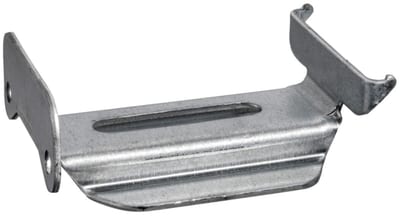

Carrier IRON W19/40-200 FZS HV
729042
Wibe Group

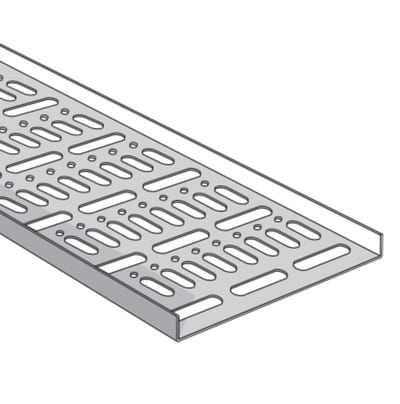

Mounting channel W4/15-200 2M Fzs White GL30
