Wibe Group 729045 Spacer Plate for Rail 40, 271 mm, HDG White NCS S 0500-N
Pricing
Request a quote
We reply within 24 hours
Product Description

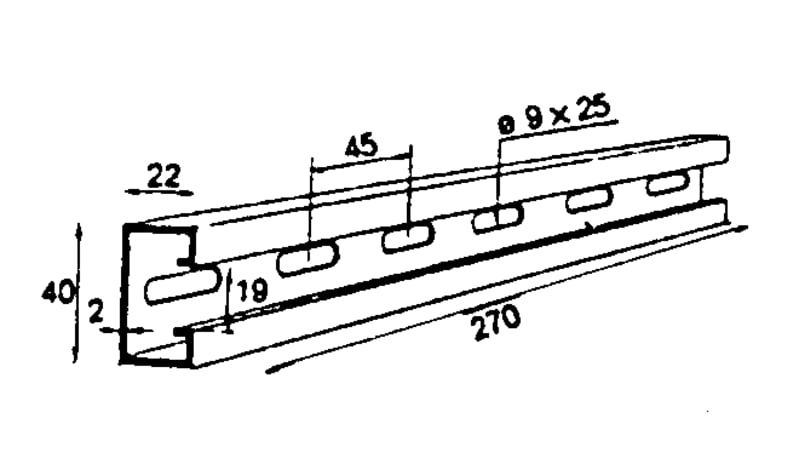

The 729045 is a rear-mounted spacer plate for Wibe Rail 40 cable-tray consoles, added behind console 50 to reduce point loading when fixing to porous walls such as lightweight concrete or plaster. It is a hot-dip galvanised steel C-profile finished in white NCS S 0500-N and rated corrosion class C5. Dimensions are 270 × 48 × 26 mm at 1.8 mm material thickness.
Technical Specifications
- Manufacturer part number (MPN)
- 729045
- EAN / GTIN
- 7321677290451
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Length
- 270 mm
- Width
- 48 mm
- Height
- 26 mm
- Slit width
- 22 mm
- Material thickness
- 1.8 mm
- Profile shape
- C-profile
- Model
- Singular profile
- Type of perforation
- Back perforated
- Hole width
- 9 mm
- With toothing
- No
- Snap
- No
- Area moment of inertia Iy
- * cm4
- Area of inertia Iz
- * cm4
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Weight
- 0.48 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.48 kg
- Length pack 1
- 265 mm
- Width pack 1
- 48 mm
- Height pack 1
- 26 mm
- Pack 2 type
- Stretch film
- Quantity pack 2
- 4
- Weight pack 2
- 1.92 kg
- Length pack 2
- 265 mm
- Width pack 2
- 100 mm
- Height pack 2
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 400
- Weight pack 4
- 222 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.48 kg
- Country of origin
- SE
- ETIM class
- EC000386
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677290451
- SAP 1000563900
- Code 8110724
Product Documentation
