Wibe Group
Mounting channel W4-400 2M SZ
Part number736610EAN / GTIN7321677366101HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

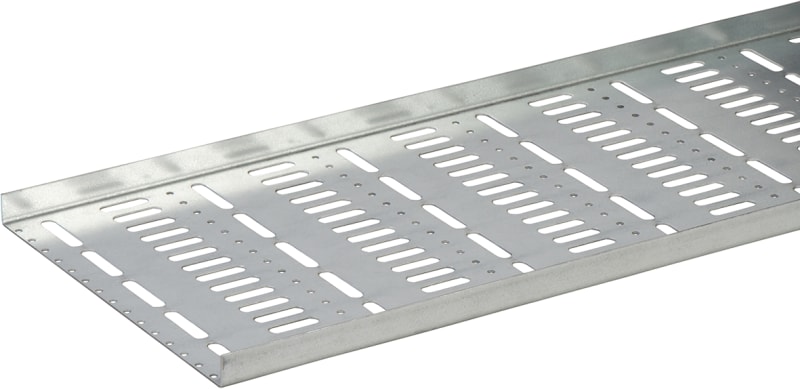

Wibe Group 736610 Wibe - installation tray W4-400 - perforated - 2 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 736610 EAN / GTIN: 7321677366101 Sales unit: m minimum order quantity: 2 Order multiple: 2 Length: 1960 mm Width: 400 mm Height: 15 mm material: Steel material type or surface treatment: Pre-galvanized Corrosion class: C2 material thickness: 1.25 mm Useful cross section: 750 mm² With cover: No Side wall perforation: No Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized Weight: 3.1 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 6.62 kg Length pack 1: 1960 mm Width pack 1: 400 mm Height pack 1: 15 mm Pack 4 type: Pallet Quantity pack 4: 52 Weight pack 4: 366 kg Length pack 4: 1960 mm Width pack 4: 800 mm Height pack 4: 390 mm Net weight: 6.62 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 18.801 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677366101
- SAP 1000484306
- Code 8882641
Product Documentation
Document preview: Mounting channel W4-400 2M SZ (736610) — Specification sheet
More from Wibe Group
Wibe Group
External Corner 110/72, White RAL 9003
STA550015
Wibe Group
B17 Conveyor Bracket 450mm Elz
1149192
Wibe Group
X-branch cable trunking 50-150 GRP PC1
MCT3131PC1
Wibe Group
Ceiling Pendant 2F/730 FOR K-Ladder SF (725568)
Wibe Group
Bend 45° LM100-300 GRP PC1
MLF1440PC1
Wibe Group

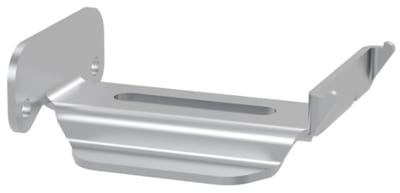

Carrier IRON W20-100 FZS
721943
Wibe Group

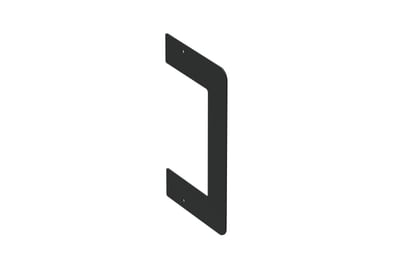

Wallframe 110/72 Black RAL9017
STA550085
Wibe Group

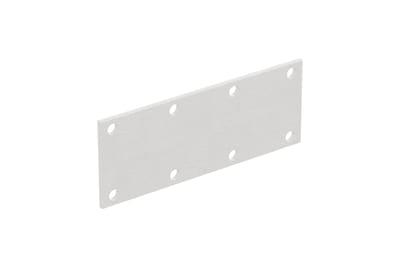

Wibe Joint LM100 — Glass-fibre reinforced polyester (GRP)
