Wibe Group

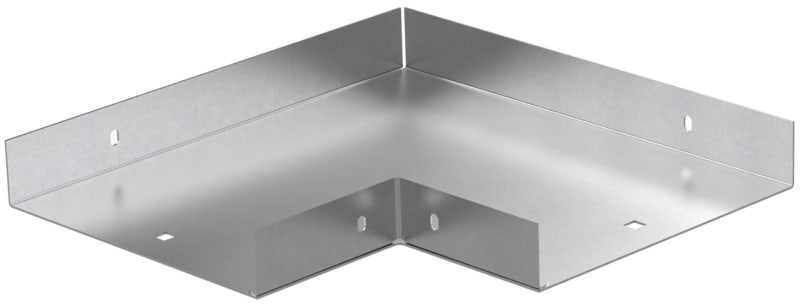

Angle 90° W10SKH/40-100 FZS
Part number717904EAN / GTIN7321677179046HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 717904 Wibe - 90 degree bend W10/40-100 - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 717904
- EAN / GTIN
- 7321677179046
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Change of direction
- Horizontal
- Construction type
- Bend rigid
- Bend model
- Segmental bend
- With cover
- No
- Cable tray height
- 40 mm
- Cable tray width
- 100 mm
- Material thickness
- 1 mm
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.51 kg
- Length pack 1
- 198 mm
- Width pack 1
- 198 mm
- Height pack 1
- 40 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 40
- Weight pack 4
- 34 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.51 kg
- Country of origin
- SE
- ETIM class
- EC002400
- GWP Total A1-A3
- 1.448 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677179046
- SAP 1000001183
- Code 815505
Product Documentation
Document preview: Angle 90° W10SKH/40-100 FZS (717904) — Specification sheet
More from Wibe Group
Wibe Group
Wibe Angle Bracket 90° 50 mm — Glass-fibre reinforced polyester (GRP)
MCT3144PC1
Wibe Group
Front Cover 2-Way Slave White RAL 9003
STA501024
Wibe Group

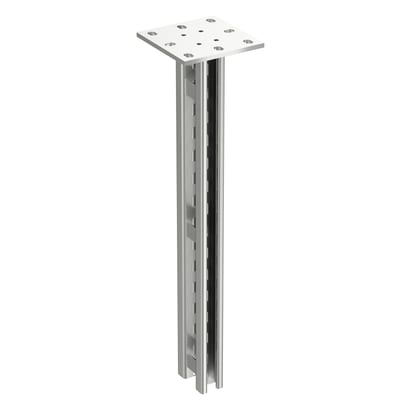

Ceiling Pendant 20F/1500 FOR K-Ladder FZV C4
718250
Wibe Group

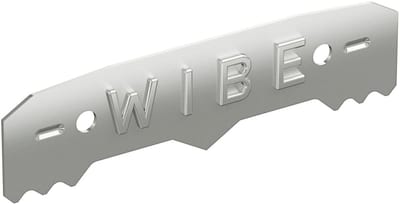

Wibe Splice Piece 9 — Hot-dip galvanized steel, C4
705304
Wibe Group

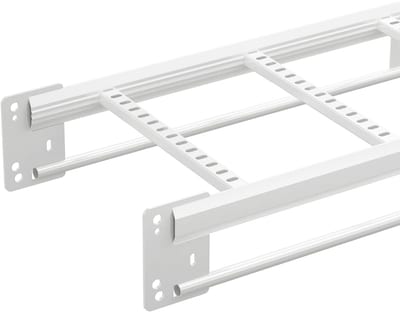

Cable Ladder KHZPV-400 6M ZP HV
723392
Wibe Group

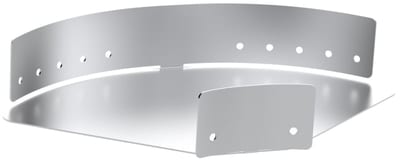

Adjustable Angle W10S/60-100 FZS
782269
Wibe Group

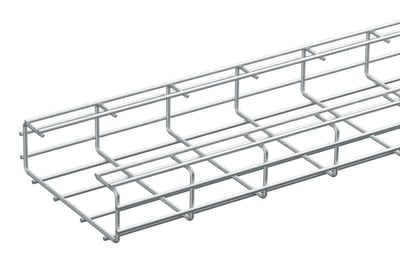

C-wire mesh tray B220X80 2,5M Sf
1149334
Wibe Group

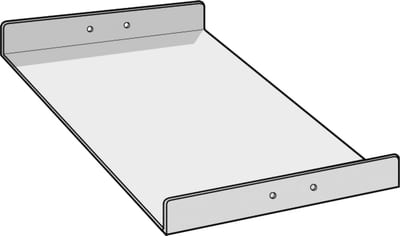

Wibe Support Beam / Joint W7-50 — Pre-galvanized steel
734554
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 717904?
- 717904 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 717904.
- What is the HS code for 717904?
- The customs tariff (HS) code for 717904 is 7308.90.
- Who manufactures 717904?
- 717904 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 717904?
- Yes — the 717904 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 717904?
- The minimum order quantity is 1.
- Is 717904 available?
- Yes — 717904 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
