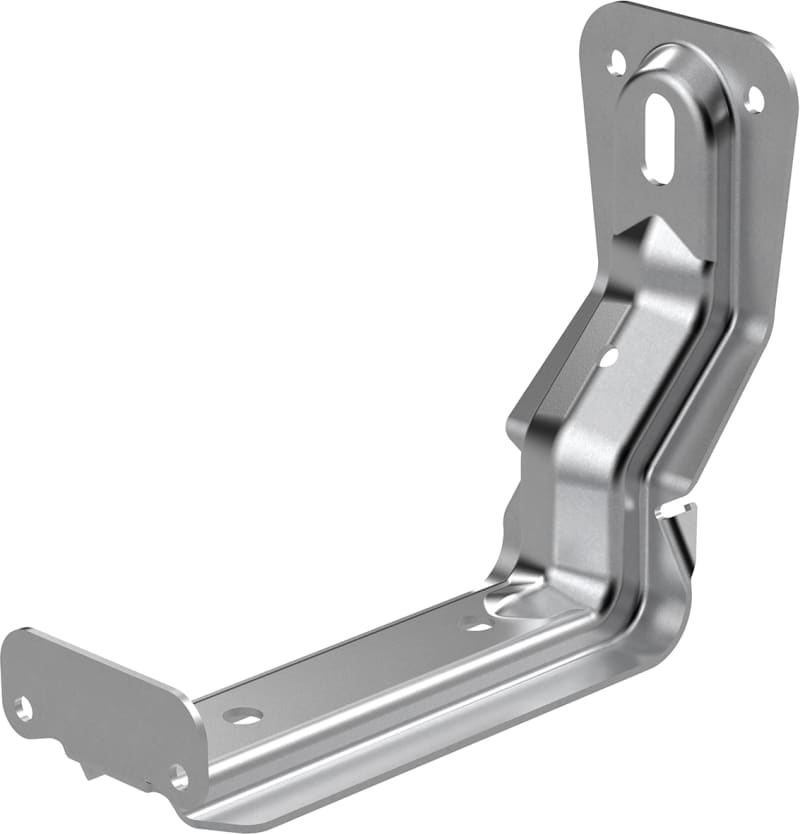

Wibe Group Internal Bracket W17/200 FZS
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 716912 is an internal cantilever bracket W17/40-200 in pre-galvanised steel for cable ladder or tray installations, 219 mm long by 55 mm wide by 140 mm high. Corrosion class C2, maximum safe working load 1176 N per IEC 61537, supplied in packs of 10 pieces. Country of origin Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 716912
- EAN / GTIN
- 7321677169122
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 219 mm
- Width
- 55 mm
- Height
- 140 mm
- Suitable for cable management system width
- 200 - 200 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1176 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.35 kg
- Length pack 1
- 220 mm
- Width pack 1
- 67 mm
- Height pack 1
- 140 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 310
- Weight pack 4
- 138 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.35 kg
- Country of origin
- SE
- ETIM class
- EC000022
- GWP Total A1-A3
- 0.994 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677169122
- SAP 1000033792
- Code 8511124
Product Documentation
More from Wibe Group
Wibe Group
T-piece up 170/72 Black RAL9017
STA550143
Wibe Group
Bend kombi cable trunking 50-150 GRP PC1
MCT3137PC1
Wibe Group
Bend 90° LM100-200 R3 GRP PC1
MLF1150PC1
Wibe Group
Reduksj.joint cable trunking 50-50 GRP PC1
MCT3350PC1
Wibe Group

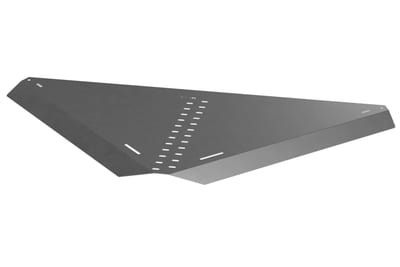

Cornerplate radius max 1000 Z+
CSU795890
Wibe Group

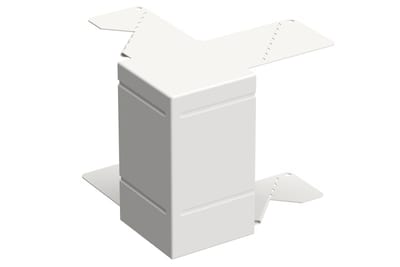

Universalcorner 130/72 White RAL9003
STA550031
Wibe Group

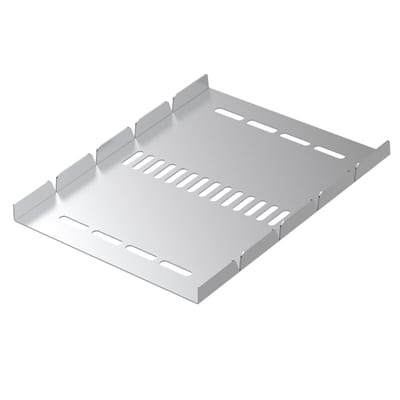

Vertical BEND W4-300 T/Cable Trunking FZS HV
784111
Wibe Group

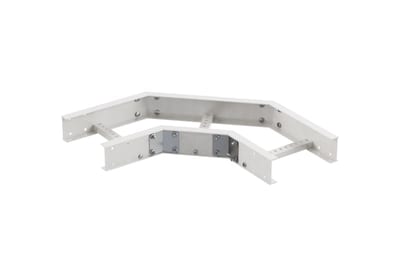

Bend 90° LM100-300 R3 GRP PC1
