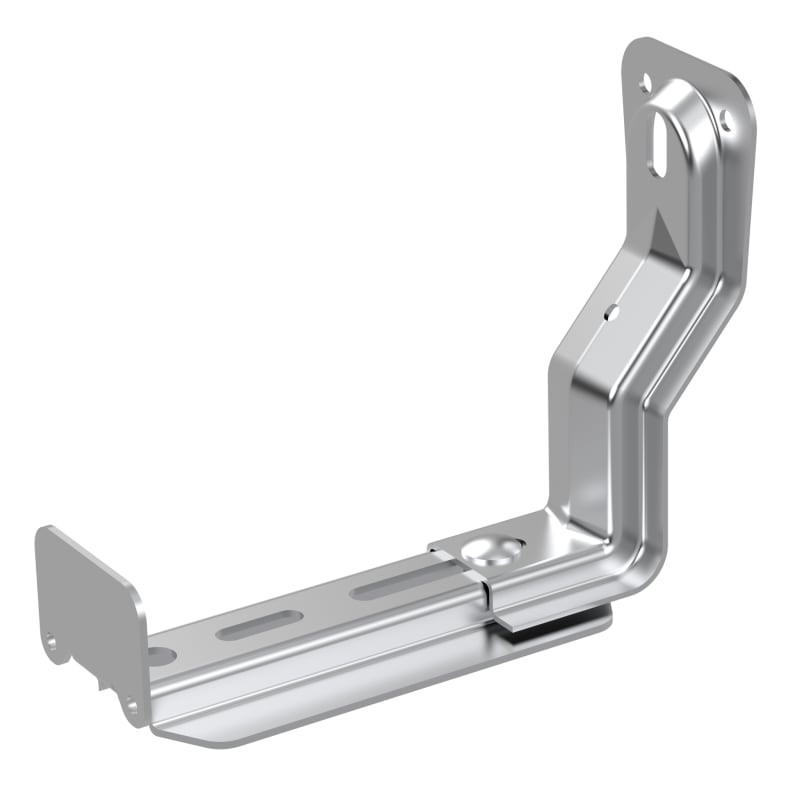

Wibe Group 734583 Adjustable Cantilever Arm W1840-600 Hot-Dip Galvanized Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 734583 is an adjustable cantilever arm W1840-600 in hot-dip galvanized steel, corrosion class C4, for cable-ladder installations 600 mm wide. Rated to a maximum safe working load of 588 N per IEC 61537.
Technical Specifications
- Manufacturer part number (MPN)
- 734583
- EAN / GTIN
- 7321677345830
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Length
- 639 mm
- Width
- 60 mm
- Height
- 185 mm
- Suitable for cable management system width
- 600 - 600 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Hot-dip galvanized
- Max. safe working load according to IEC 61537
- 588 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.57 kg
- Length pack 1
- 617 mm
- Width pack 1
- 96 mm
- Height pack 1
- 184 mm
- Net weight
- 1.57 kg
- Country of origin
- SE
- ETIM class
- EC000022
- GWP Total A1-A3
- 4.3803 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677345830
- SAP 1200834401
- Code 84026696
Product Documentation
More from Wibe Group
Wibe Group
Wibe Group STA500063 Fixed Wall Bracket 146 mm Depth 6 Ribs Aluminium
Wibe Group
Cable ladder KHZP-1000 6M Sf
782129
Wibe Group
Cable Trunking W1/40-70 2M FZS UNPERFORATED.
713251
Wibe Group
Cover 90° BEND-500 Fzs
732326
Wibe Group
Pendelstag 1/500 ZP HV
717644
Wibe Group

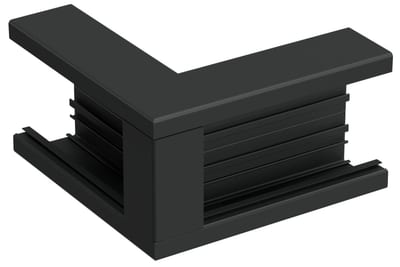

External corner al 110/55 Black RAL9017
