Wibe Group
Cable Trunking W3/40-50 3M FZV C4
Part number735400EAN / GTIN7321677354009HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

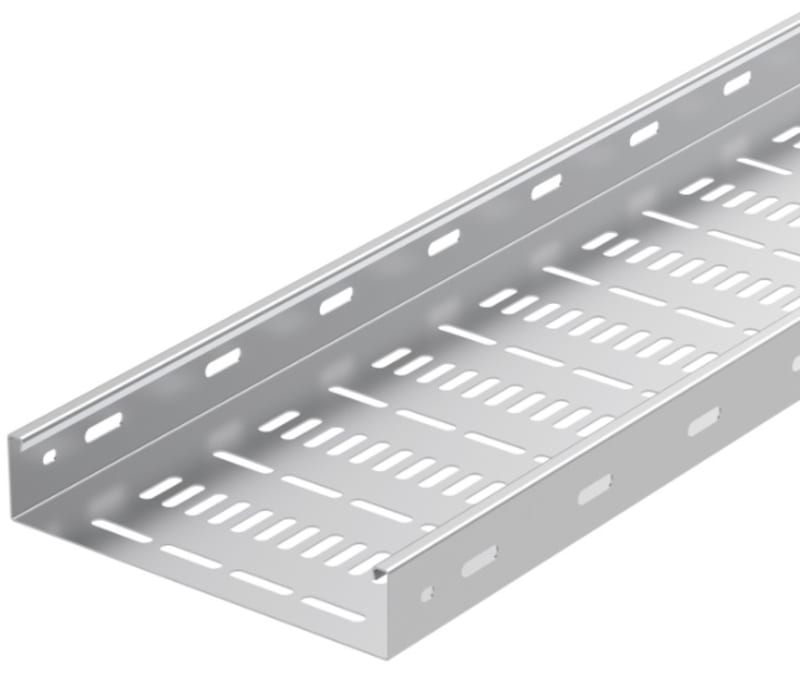

Wibe Group 735400 Wibe - cable tray W3/40-50 - perforated - 3 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 735400 EAN / GTIN: 7321677354009 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 50 mm Height: 40 mm material: Steel material type or surface treatment: Hot-dip galvanized Corrosion class: C4 material thickness: 1 mm Useful cross section: 2000 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Hot-dip galvanized Weight: 1.1 kg/m Load test type according to IEC 61537: Type I Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 3.3 kg Length pack 1: 3000 mm Width pack 1: 50 mm Height pack 1: 40 mm Pack 4 type: Pallet Quantity pack 4: 192 Weight pack 4: 666 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 500 mm Net weight: 3.3 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 9.207 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677354009
- SAP 1000679333
- Code 8576650
Product Documentation
Document preview: Cable Trunking W3/40-50 3M FZV C4 (735400) — Specification sheet
More from Wibe Group
Wibe Group

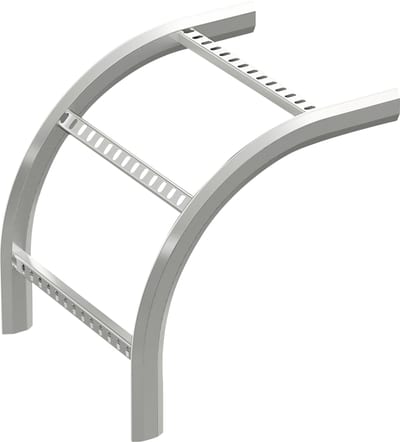

Vertical BEND 18/300 SF
727372
Wibe Group

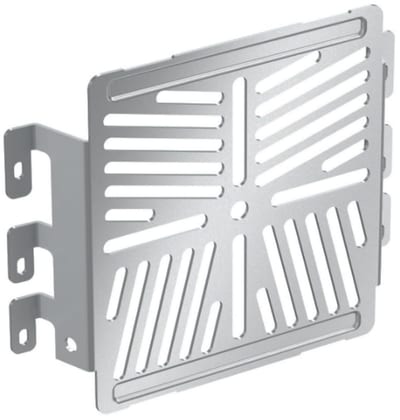

Mounting Plate B5 MINI FZV C4
1149237
Wibe Group
Beam Clamp 6BK-30 Fzv
CSU795918
Wibe Group

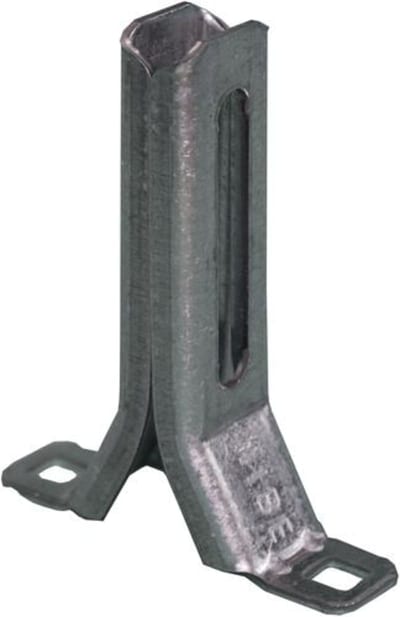

Pendant Bracket W21 ZP White
783107
Wibe Group

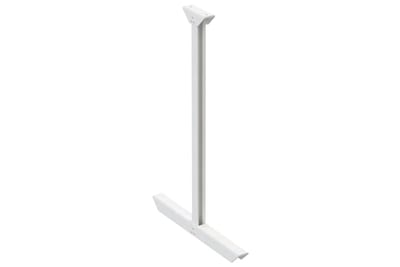

Support beam 600-1000 GRP PC1
MS416310PC1
Wibe Group

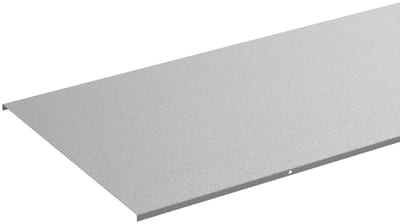

Cover W5-100 2M FOR W1/W3/W70 FZS
732215
Wibe Group

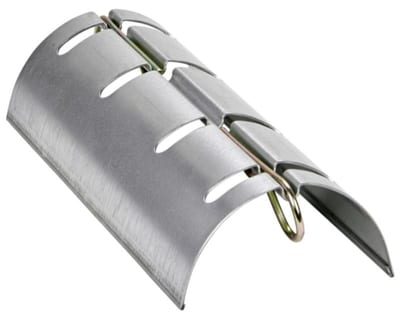

Radiusbegrenser B34/320 FZV
1149433
Wibe Group

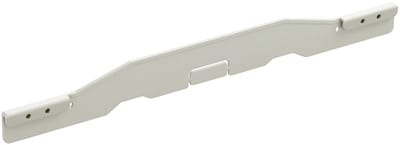

Spacer Piece W39, Plastic, Grey, 10 pcs
