Wibe Group
Cable Trunking W3/40-500 3M FZV C4
Part number735407EAN / GTIN7321677354078HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

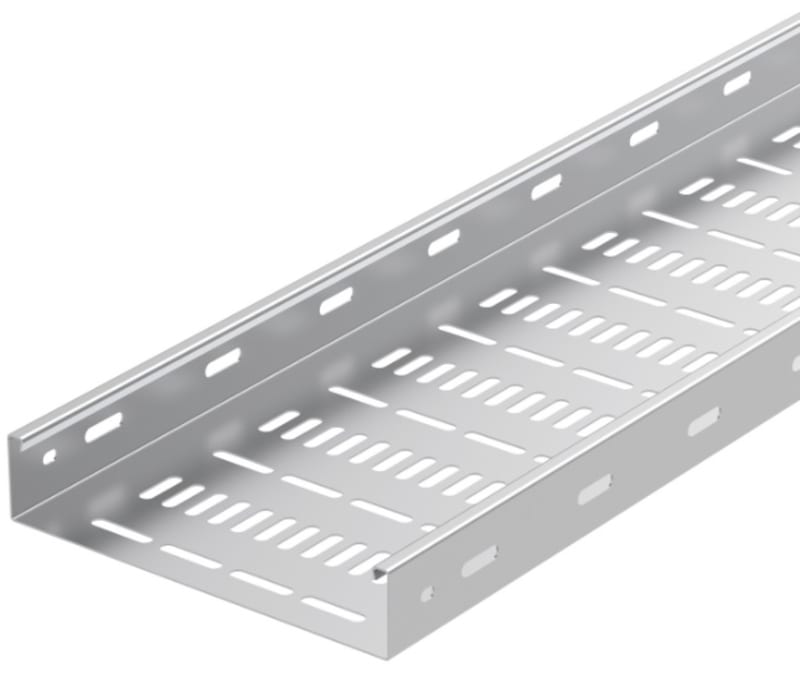

Wibe Group 735407 Wibe - cable tray W3/40-500 - perforated - 3 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 735407 EAN / GTIN: 7321677354078 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 500 mm Height: 40 mm material: Steel material type or surface treatment: Hot-dip galvanized Corrosion class: C4 material thickness: 1.5 mm Useful cross section: 20000 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Hot-dip galvanized Weight: 6.2 kg/m Load test type according to IEC 61537: Type I Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 18.6 kg Length pack 1: 3000 mm Width pack 1: 500 mm Height pack 1: 40 mm Pack 4 type: Pallet Quantity pack 4: 16 Weight pack 4: 321 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 500 mm Net weight: 18.6 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 51.894 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677354078
- SAP 1000679331
- Code 8282668
Product Documentation
Document preview: Cable Trunking W3/40-500 3M FZV C4 (735407) — Specification sheet
