Wibe Group

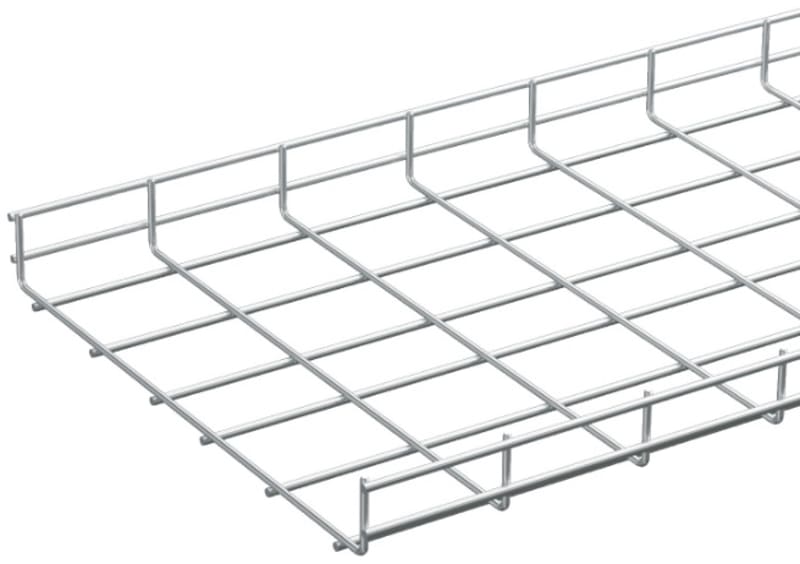

Wire mesh tray 422/60-Ø5/6 U-FORM. 2,5M ELZ
Part number1149114EAN / GTIN7332227011143HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 1149114 WIBE Wire mesh tray U-shaped 422/60-Ø5/6 L=2,5m Steel Electrolytic Zinc-plated.
Technical Specifications
- Manufacturer part number (MPN)
- 1149114
- EAN / GTIN
- 7332227011143
- Sales unit
- pcs
- Wire diameter
- 5 mm
- Width
- 422 mm
- Model
- Without connector
- Height
- 60 mm
- Type of connection
- Screwed
- Surface protection
- Galvanic/electrolytic zinc plated
- Weight
- 3.03 kg/m
- Length
- 2500 mm
- Operating temperature
- -40–120 °C
- Material
- Steel
- Integrated partition
- None
- Usable cross section
- 30000 mm²
- Profile shape
- U-shape
- Working length
- 2500 mm
- Stainless steel, pickled
- No
- Wide span model
- No
- Suitable for circuit integrity
- Yes
- Screwless connector
- No
- Load test type according to IEC 61537
- Type I
- Diameter longitudinal wire
- 5 mm
- Diameter transverse wire
- 6 mm
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7332227011143
- SAP 1000015997
- Code 8132627
Product Documentation
Document preview: Wire mesh tray 422/60-Ø5/6 U-FORM. 2,5M ELZ (1149114) — Specification sheet
