Wibe Group Cantilever Arm 50i-600 FZS Pre-Galvanised Steel
Pricing
Request a quote
We reply within 24 hours
Product Description

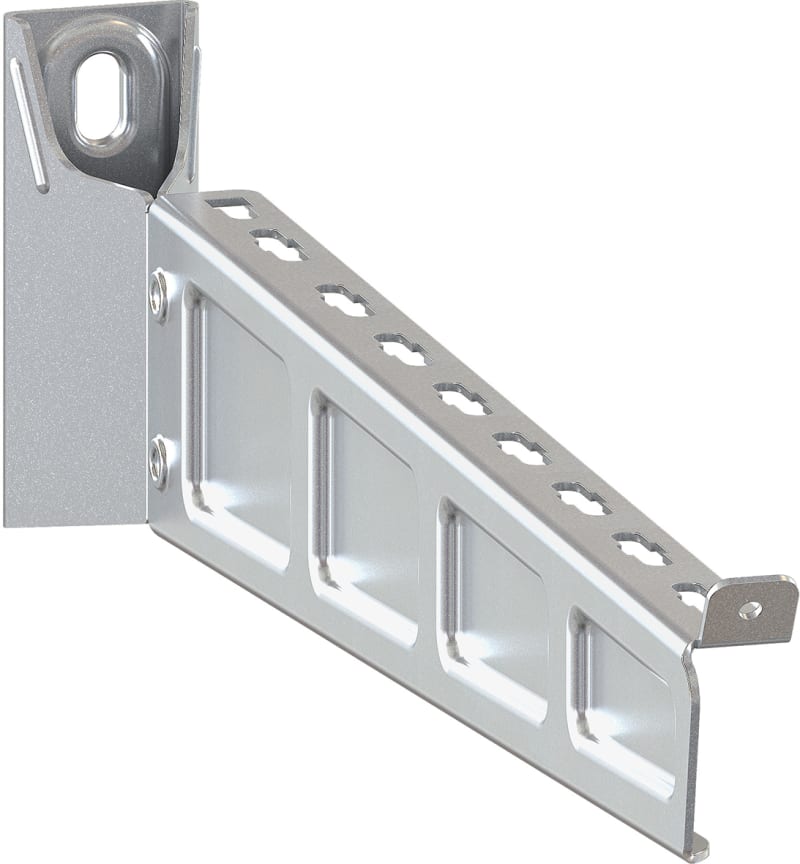

Wibe Group CSU795323 is a 50i series cantilever arm with 600 mm reach in pre-galvanised steel, rated corrosion class C2 for indoor and sheltered outdoor use. It is a wall- and profile-mounted console at a 90-degree angle, suited to cable management systems 100-600 mm wide. Maximum safe working load per IEC 61537 is 1765 N; net weight 1.92 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795323
- EAN / GTIN
- 3606480911361
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 680 mm
- Width
- 50 mm
- Height
- 130 mm
- Suitable for cable management system width
- 100 - 600 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1765 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.917 kg
- Length pack 1
- 680 mm
- Width pack 1
- 50 mm
- Height pack 1
- 150 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 116
- Weight pack 4
- 259.372 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 530 mm
- Net weight
- 1.92 kg
- Country of origin
- PL
- ETIM class
- EC000022
- GWP Total A1-A3
- 5.444 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606480911361
- SAP 1000765439
- Code 8550817
Product Documentation
