Wibe Group

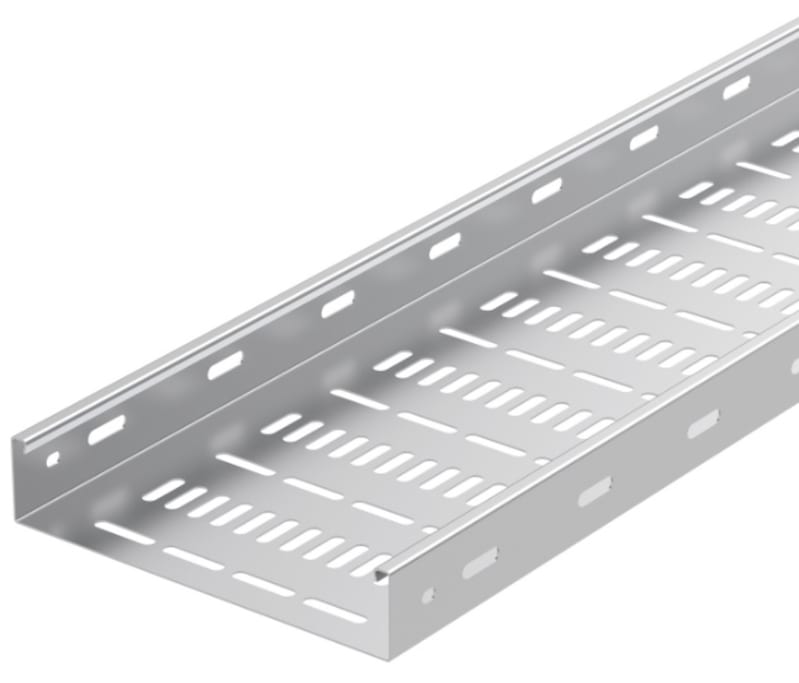

Cable Trunking W3/40-100 1,96M FZS
Part number736687EAN / GTIN7321677366873HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 736687 Wibe - cable tray W3/40-100 - perforated- 2 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 736687
- EAN / GTIN
- 7321677366873
- HS code
- 8544.42
- Sales unit
- pcs
- Length
- 1960 mm
- Width
- 100 mm
- Height
- 40 mm
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 4000 mm²
- With cover
- No
- Side wall perforation
- Yes
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized
- Weight
- 1.4 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.68 kg
- Length pack 1
- 1960 mm
- Width pack 1
- 100 mm
- Height pack 1
- 40 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 112
- Weight pack 4
- 337 kg
- Length pack 4
- 1960 mm
- Width pack 4
- 800 mm
- Height pack 4
- 500 mm
- Net weight
- 2.68 kg
- Country of origin
- SE
- ETIM class
- EC000047
- GWP Total A1-A3
- 7.611 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677366873
- SAP 1000563864
- Code 8679004
Product Documentation
Document preview: Cable Trunking W3/40-100 1,96M FZS (736687) — Specification sheet
More from Wibe Group
Wibe Group
Utjevningstykke 110/72mm Black RAL9017
STA550083
Wibe Group
End piece al 110/55 so alu
STA520065
Wibe Group
T-cross 16-800 Fzv (721962)
Wibe Group
Outer BEND 15/600 90° ZP HV
716192
Wibe Group
Vertical Bend W11/40-200 FZS
723228
Wibe Group
Utjevningstykke 110/52mm White RAL9003
STA550009
Wibe Group

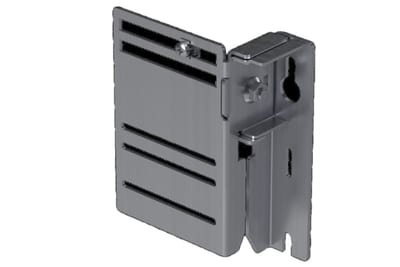

Wibe Group Adjustable Wall Bracket BT50H 50-70mm Steel
5583530
Wibe Group

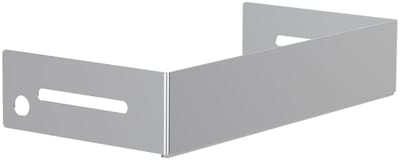

END CAP W45/40-400 FZS HV
