Wibe Group Vertical Riser 18/500, Stainless Steel AISI 316L
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 727374 vertical rising cable-ladder bend, 500 mm width and 55 mm ladder height, inner radius 272 mm. Stainless steel AISI 316L (1.4571), pickled and passivated finish, corrosion class CX. Tube-shape side rails with perforated rungs, supplied without connectors.
Technical Specifications
- Manufacturer part number (MPN)
- 727374
- EAN / GTIN
- 7321677273744
- Sales unit
- pcs
- Width
- 500 mm
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 500 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Stainless steel 316 Ti (1.4571)
- Surface protection
- Pickled and passivated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.5 kg
- Length pack 1
- 452 mm
- Width pack 1
- 452 mm
- Height pack 1
- 497 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 20
- Weight pack 4
- 101 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 930 mm
- Net weight
- 2.5 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 14.6 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677273744
- SAP 1000703209
- Code 8421226
Product Documentation
More from Wibe Group
Wibe Group
End piece W45/60-100 Fzs
782293
Wibe Group
Ceiling Pendant 2FB-282 FZV C4
CSU795335
Wibe Group
90° Bend 55/500 Fzv (716245)
Wibe Group
Wibe Group protection plate profile 400 mm zinc+ steel
CSU795891
Wibe Group
Renne W4-75 3M Fzv white
736000
Wibe Group
Ceiling Pendant 2F-1500 ZP white
787277
Wibe Group

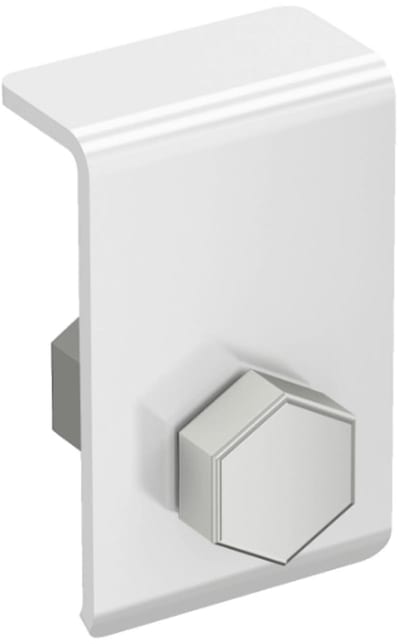

Profillklammer 37 Steel Z+ HV C4
CSU795599
Wibe Group

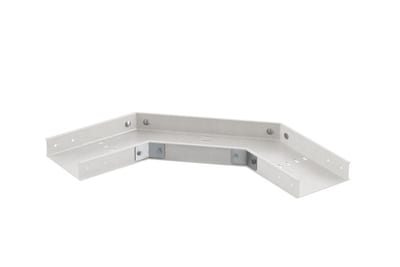

Bend 90° cable trunking 50-150 R3 GRP PC1
