Wibe Group Vertical Riser Bend 18/150 Stainless Steel AISI 316L
Pricing
Request a quote
We reply within 24 hours
Product Description

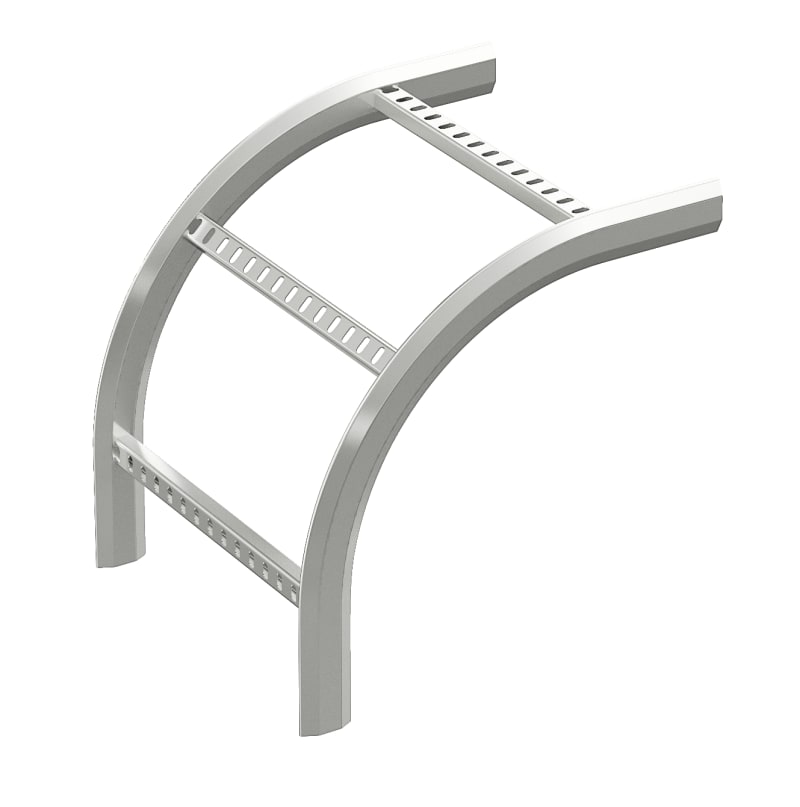

Wibe Group 727370 is a vertical rising bend for cable-ladder systems in Wibe series 18. It is fabricated from AISI 316L (1.4571) stainless steel, pickled and passivated for corrosion class CX. The bend measures 150 mm wide with 55 mm side rails and a 272 mm inner radius, supplied without connector.
Technical Specifications
- Manufacturer part number (MPN)
- 727370
- EAN / GTIN
- 7321677273706
- Sales unit
- pcs
- Width
- 150 mm
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 150 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Stainless steel 316 Ti (1.4571)
- Surface protection
- Pickled and passivated
- Quantity pack 1
- 1
- Weight pack 1
- 1.8 kg
- Length pack 1
- 0 mm
- Width pack 1
- 0 mm
- Height pack 1
- 0 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 50
- Weight pack 4
- 148 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 930 mm
- Net weight
- 1.8 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 10.512 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677273706
- SAP 1000703205
- Code 8318661
