Wibe Group
Outer BEND 15/200 90° SF
Part number727353EAN / GTIN7321677273539HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

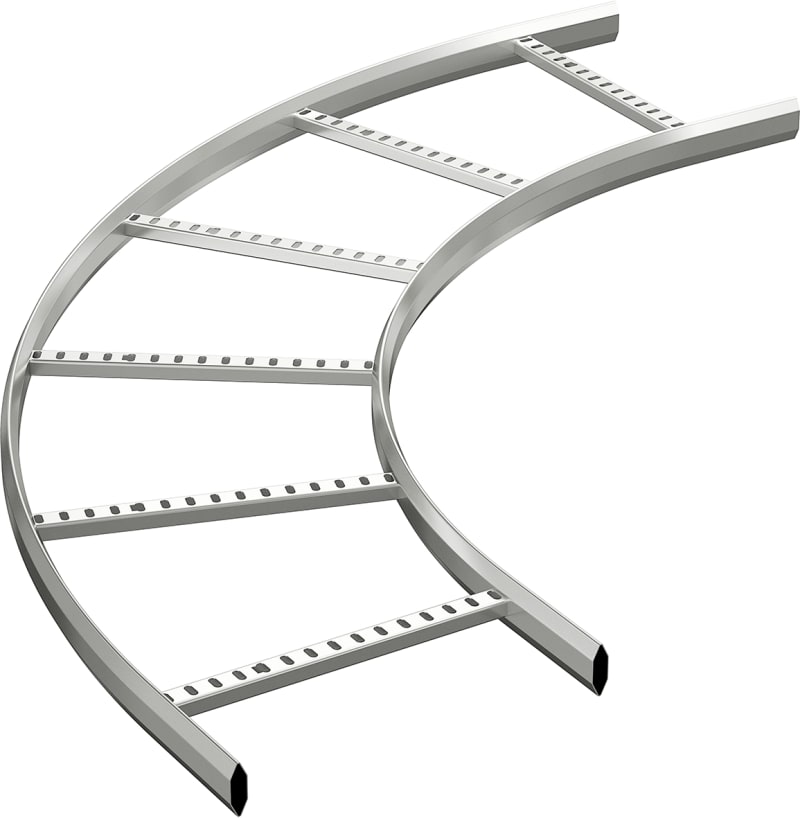

Wibe Group 727353 Wibe - 90 degree exterior bend 15-200 - inner radius 268 mm - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 727353
- EAN / GTIN
- 7321677273539
- HS code
- 8544.42
- Sales unit
- pcs
- Width
- 200 mm
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 200 mm
- Model
- Without connector
- Inner radius
- 586 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Stainless steel 316 (1.4401)
- Surface protection
- Pickled and passivated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.1 kg
- Pack 4 type
- Pallet
- Quantity pack 4
- 28
- Weight pack 4
- 110 kg
- Length pack 4
- 10 mm
- Width pack 4
- 10 mm
- Height pack 4
- 10 mm
- Net weight
- 3.1 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 18.104 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677273539
- SAP 1000703197
- Code 8318649
Product Documentation
Document preview: Outer BEND 15/200 90° SF (727353) — Specification sheet
