Wibe Group

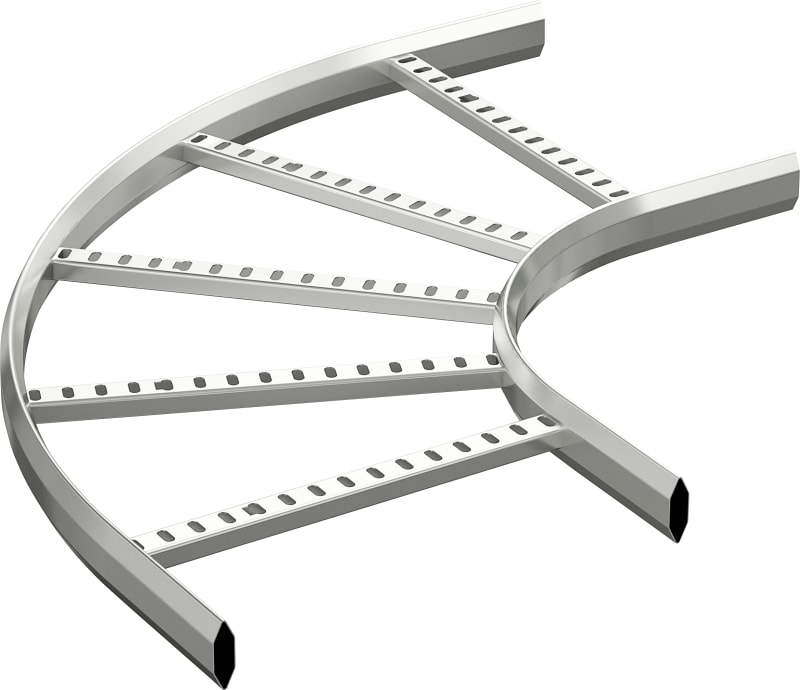

Inner BEND 15/400 90° SF
Part number727349EAN / GTIN7321677273492HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 727349 Wibe - 90 degree interior bend 15-400 - stainless steel AISI 316L.
Technical Specifications
- Manufacturer part number (MPN)
- 727349
- EAN / GTIN
- 7321677273492
- HS code
- 8544.42
- Sales unit
- pcs
- Width
- 400 mm
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 400 mm
- Model
- Without connector
- Inner radius
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Stainless steel 316 (1.4401)
- Surface protection
- Pickled and passivated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.8 kg
- Length pack 1
- 797 mm
- Width pack 1
- 797 mm
- Height pack 1
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 28
- Weight pack 4
- 102 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 1120 mm
- Height pack 4
- 710 mm
- Net weight
- 2.8 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 16.352 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677273492
- SAP 1000481491
- Code 8202988
Product Documentation
Document preview: Inner BEND 15/400 90° SF (727349) — Specification sheet
More from Wibe Group
Wibe Group
Inner BEND 15/200 90° SF
727347
Wibe Group
Ceiling Pendant 2FI-300 FZS C2
792723
Wibe Group
Defem-Cover B7:2/75 L=1.25M Z+
CSU796038
Wibe Group
Angle Bracket 5LS FOR Cable Ladder FZV C4
709801
Wibe Group
Front F80 50mm steel Black RAL9017
STA550156
Wibe Group
Ceiling Pendant 2F/370 FOR K-Ladder FZV C4
717197
Wibe Group

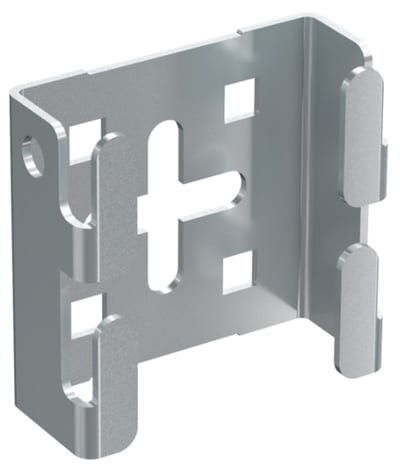

Wall bracket MINI B4/53-75 FZV C4 10 pcs
1149298
Wibe Group

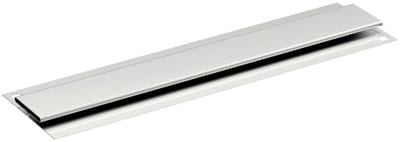

Joint FOR Cover W5 300mm FZV
