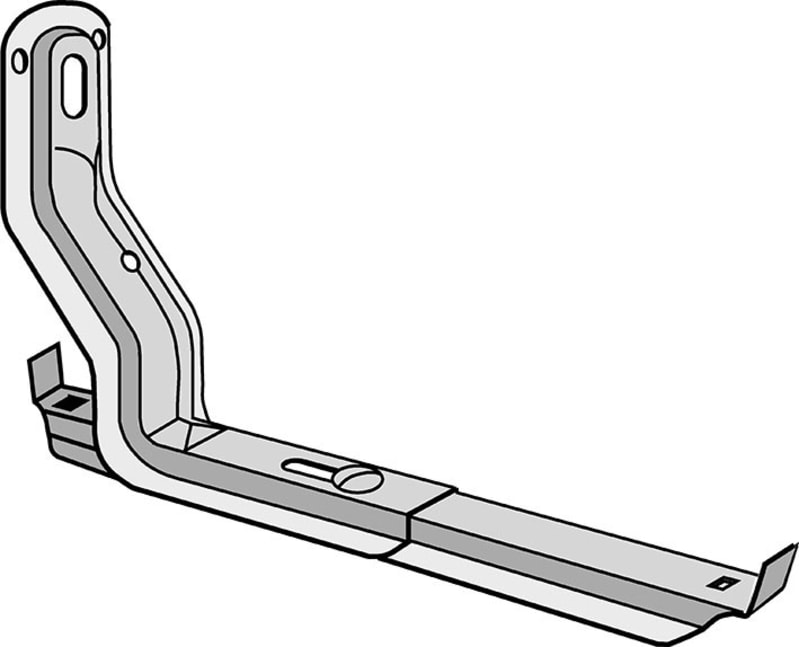

Wibe Group 727777 Interior Cantilever Arm 30/200, Pre-Galvanised Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 727777 wall and profile console (cantilever arm) 30/200, 200 mm wide, in pre-galvanised steel with C2 corrosion class. Provides a 90-degree wall bracket for 200 mm cable-management systems with a safe working load of 1350 N per IEC 61537. Continuously galvanised surface protection; manufactured in Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 727777
- EAN / GTIN
- 7321677277773
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 200 mm
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 184 mm
- Height
- 185 mm
- Suitable for cable management system width
- 200 - 200 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1350 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.9 kg
- Length pack 1
- 200 mm
- Width pack 1
- 80 mm
- Height pack 1
- 185 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 120
- Weight pack 4
- 138 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.9 kg
- Country of origin
- SE
- ETIM class
- EC000022
- GWP Total A1-A3
- 2.556 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677277773
- SAP 1000011855
- Code 8481137
