Wibe Group

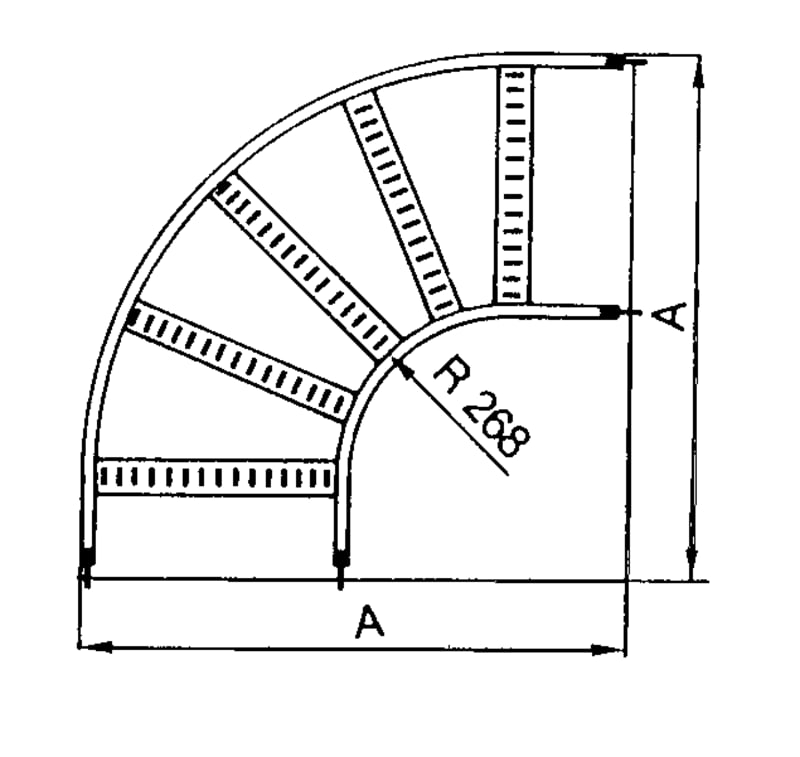

90° Bend 55/300 ZP white
Part number716250EAN / GTIN7321677162505HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 716250 Wibe - 90 degree interior bend 55-300 - steel Zinkpox coated white.
Technical Specifications
- Manufacturer part number (MPN)
- 716250
- EAN / GTIN
- 7321677162505
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 300 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 134 mm
- Cable ladder width
- 300 mm
- Model
- Integrated connector
- Inner radius
- 268 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Quantity pack 1
- 1
- Weight pack 1
- 5.6 kg
- Length pack 1
- 735 mm
- Width pack 1
- 735 mm
- Height pack 1
- 150 mm
- Net weight
- 5.6 kg
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677162505
- SAP 1000563819
- Code 81053725
Product Documentation
Document preview: 90° Bend 55/300 ZP white (716250) — Specification sheet
More from Wibe Group
Wibe Group
Protections plate 65-200 Sf
732481
Wibe Group
90° Bend 55/500 ZP white
716252
Wibe Group
Adjustable Angle W10S/60-100 FZS HV
782472
Wibe Group

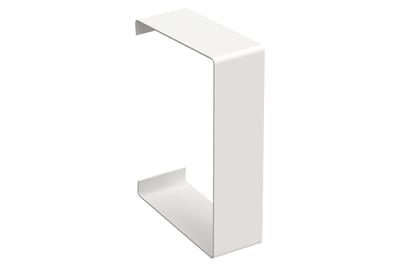

Utjevningstykke 110/72mm White RAL9003
STA550018
Wibe Group

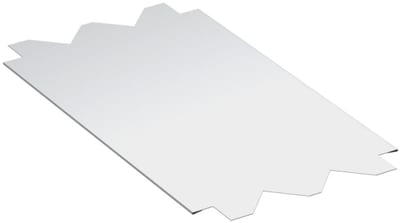

Wibe Group Defem Bend Plate B31/320 Aluminium
1149228
Wibe Group

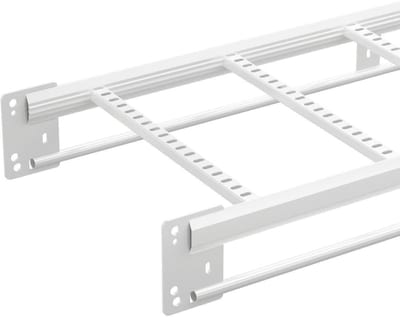

Cable Ladder KHZPV-500 6M ZP HV
723393
Wibe Group

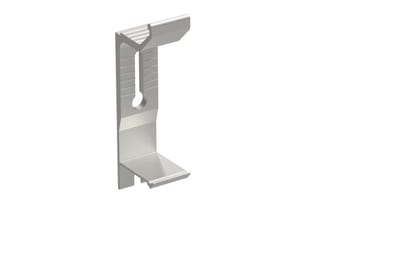

Wibe Group STA500058 Fixed Wall Bracket 35 mm Depth, 1 Rib
Wibe Group

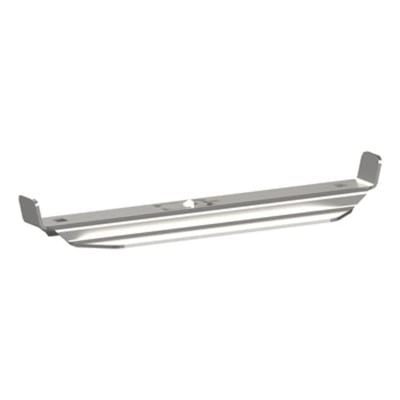

Carrier IRON CLX3 KHZSP-300 FZS
