Wibe Group

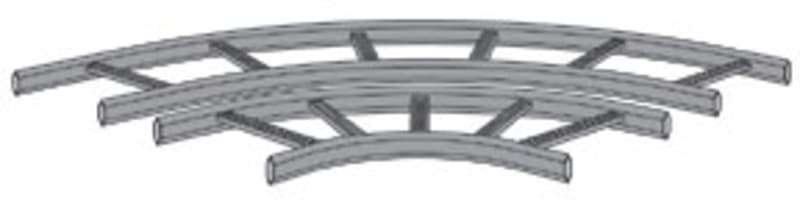

90° Bend outer 15/500 ZP white
Part number716191EAN / GTIN7321677161911HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 716191 Wibe - 90 degree exterior bend 15-500 - steel Zinkpox coated white.
Technical Specifications
- Manufacturer part number (MPN)
- 716191
- EAN / GTIN
- 7321677161911
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 500 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 500 mm
- Model
- Without connector
- Inner radius
- 886 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 6.4 kg
- Pack 4 type
- Pallet
- Quantity pack 4
- 14
- Weight pack 4
- 112 kg
- Length pack 4
- 10 mm
- Width pack 4
- 10 mm
- Height pack 4
- 10 mm
- Net weight
- 6.4 kg
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677161911
- SAP 1000563787
- Code 8110390
Product Documentation
Document preview: 90° Bend outer 15/500 ZP white (716191) — Specification sheet
