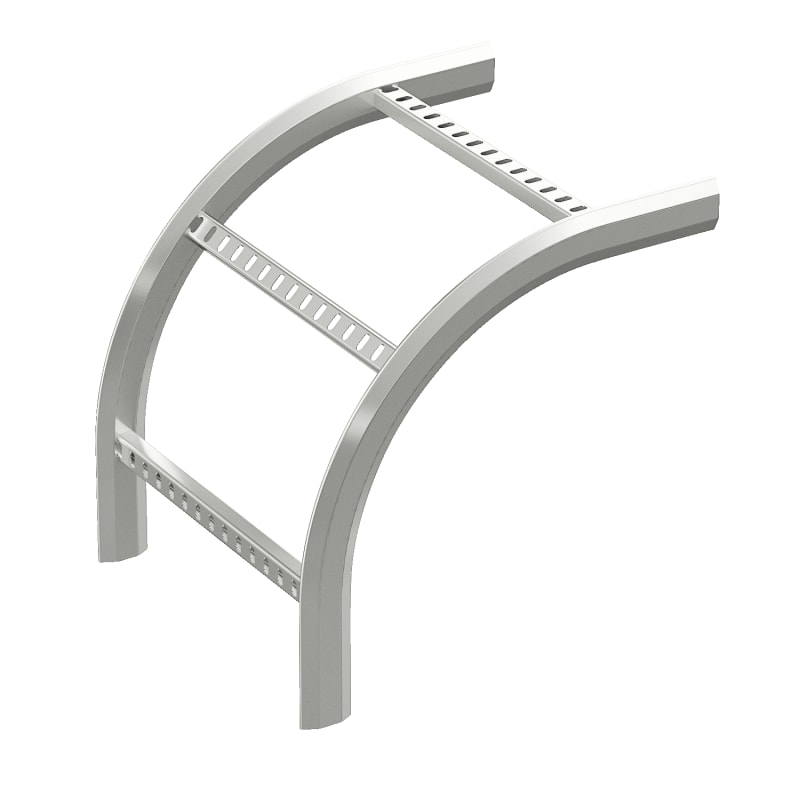

Wibe 18-800 Vertical Riser Bend, 272 mm Inner Radius, Hot-Dip Galvanised
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 721964 is a vertical riser bend for the Wibe 18-series cable ladder, 800 mm wide with a 272 mm inner radius. Fabricated from hot-dip galvanised steel to corrosion class C4, it provides a smooth vertically rising change of direction with perforated rung profiles. It is used to route cable-ladder installations up walls and between floors in industrial and commercial buildings.
Technical Specifications
- Manufacturer part number (MPN)
- 721964
- EAN / GTIN
- 7321677219643
- Sales unit
- pcs
- Width
- 800 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 800 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.1 kg
- Length pack 1
- 800 mm
- Width pack 1
- 650 mm
- Height pack 1
- 250 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 10
- Weight pack 4
- 68 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 536 mm
- Net weight
- 3.1 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 8.649 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677219643
- SAP 1200126749
- Code 82045607
Product Documentation
