Wibe Group
Cable ladder KHZPV-400 6M Sf
Part number784068EAN / GTIN7321677840687HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

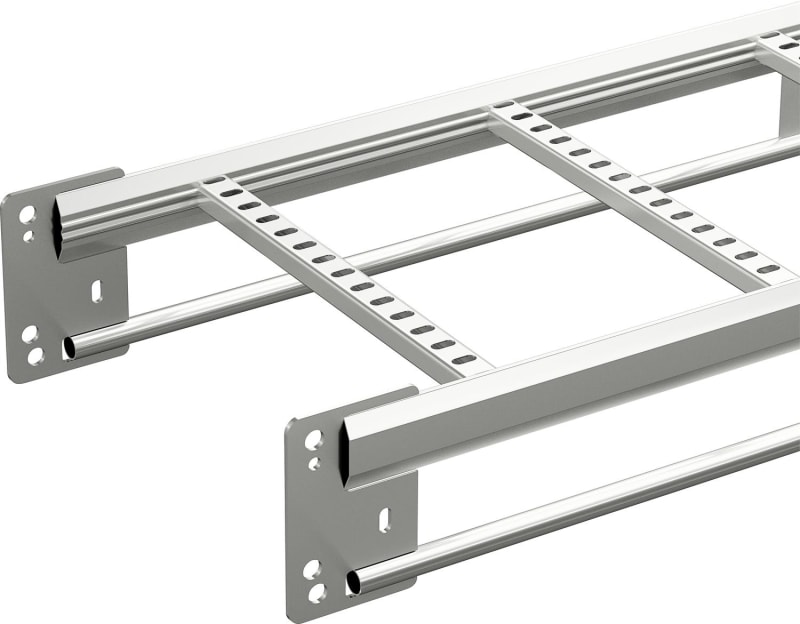

Wibe Group 784068 Wibe - reinforced cable ladder - KHZPV-400 - with closed side profiles and perforated rungs - 6 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 784068 EAN / GTIN: 7321677840687 HS code: 8544.42 Sales unit: m minimum order quantity: 6 Order multiple: 6 Length: 6000 mm Width: 400 mm Height: 150 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Tube shape (closed) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 32000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 4.97 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 29.8 kg Length pack 1: 6200 mm Width pack 1: 397 mm Height pack 1: 150 mm Pack 4 type: Pallet Quantity pack 4: 10 Weight pack 4: 324 kg Length pack 4: 6200 mm Width pack 4: 410 mm Height pack 4: 790 mm Net weight: 29.8 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 174.032 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677840687
- SAP 1200834359
- Code 84021696
Product Documentation
Document preview: Cable ladder KHZPV-400 6M Sf (784068) — Specification sheet
