Wibe Group
Cable ladder KHZPV-200 6M Sf
Part number784066EAN / GTIN7321677840663HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

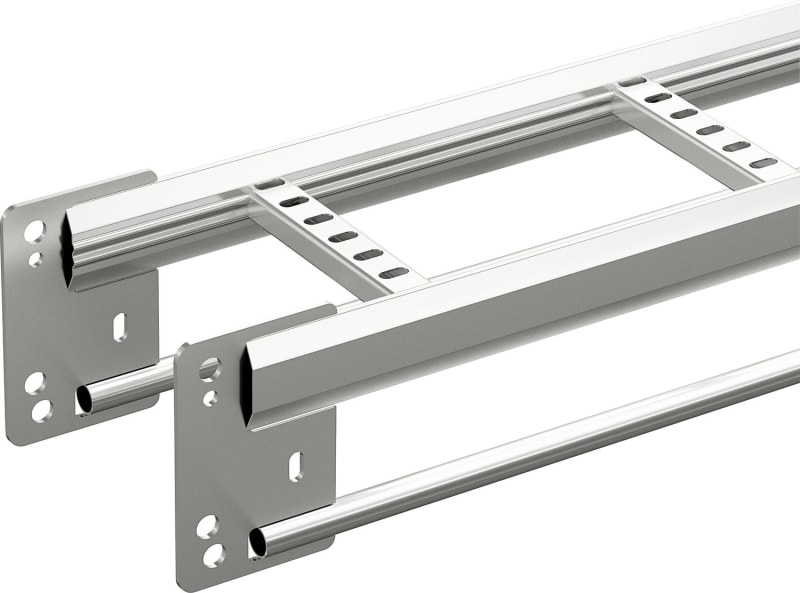

Wibe Group 784066 Wibe - reinforced cable ladder - KHZPV-200 - with closed side profiles and perforated rungs - 6 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 784066 EAN / GTIN: 7321677840663 HS code: 8544.42 Sales unit: m minimum order quantity: 6 Order multiple: 6 Length: 6000 mm Width: 200 mm Height: 150 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Tube shape (closed) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 16000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 4.53 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 27.2 kg Length pack 1: 6200 mm Width pack 1: 197 mm Height pack 1: 150 mm Pack 4 type: Pallet Quantity pack 4: 10 Weight pack 4: 298 kg Length pack 4: 6200 mm Width pack 4: 210 mm Height pack 4: 790 mm Net weight: 27.2 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 158.848 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677840663
- SAP 1200834357
- Code 84021703
Product Documentation
Document preview: Cable ladder KHZPV-200 6M Sf (784066) — Specification sheet
