Wibe Group

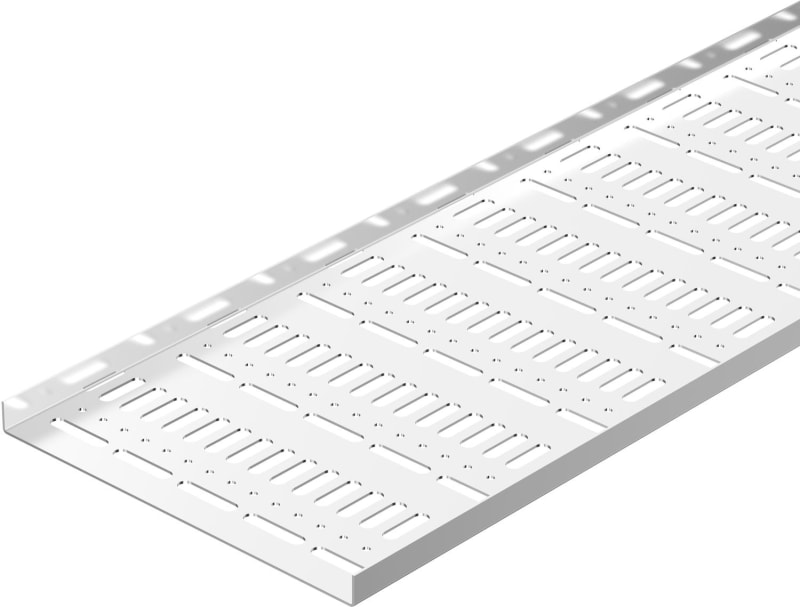

Mounting channel W4/15-75 2M Fzs White GL30
Part number736634EAN / GTIN3303437366341HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 736634 Wibe - installation tray W4-75 - perforated - 2 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 736634
- EAN / GTIN
- 3303437366341
- Sales unit
- m
- Package quantity
- 10 m
- Colour
- White NCS S 0500 N gl30
- Length
- 1960 mm
- Width
- 75 mm
- Height
- 15 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C4
- Material thickness
- 1.25 mm
- Useful cross section
- 3000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 0.8 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.38 kg
- Length pack 1
- 1960 mm
- Width pack 1
- 75 mm
- Height pack 1
- 15 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 260
- Weight pack 4
- 389 kg
- Length pack 4
- 1960 mm
- Width pack 4
- 810 mm
- Height pack 4
- 390 mm
- Net weight
- 1.38 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3303437366341
- SAP 1000563878
- Code 8110672
Product Documentation
Document preview: Mounting channel W4/15-75 2M Fzs White GL30 (736634) — Specification sheet
